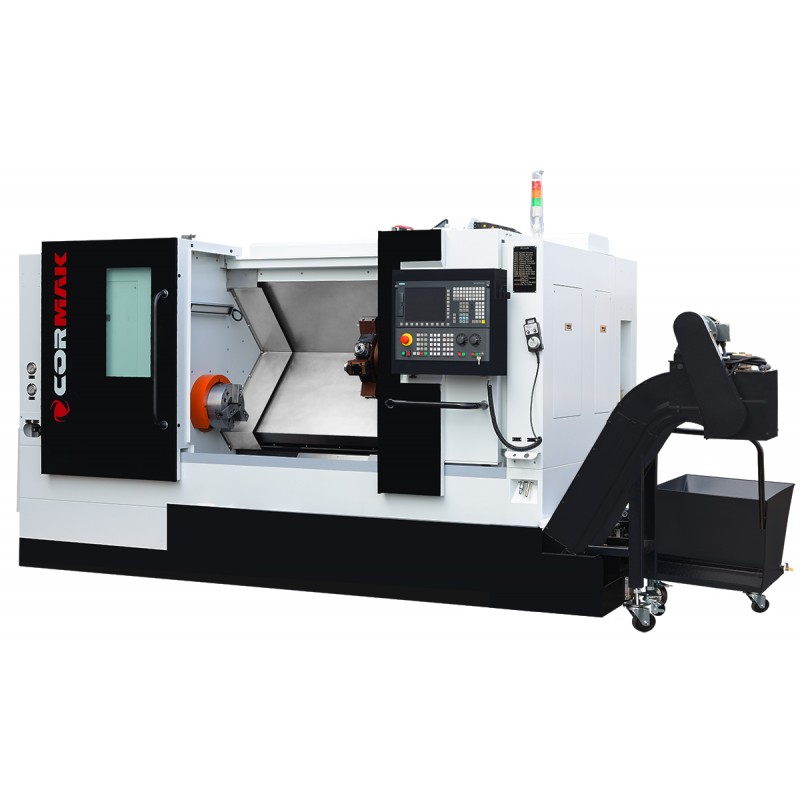

CNC Lathe CK7150 x750 HYDRAULIC 12 TOOL HOLDER SIEMENS SINUMERIK 808D

Industrial high-performance slant bed lathe CK7150x750 is characterized by a compact structure, convenient in operation and maintenance. Designed for machining non-ferrous metal, ferrous metal and non-metal components. The lathe can perform cylindrical, conical, end surface turning, boring, grooving, threading, spherical surface turning, etc., so it can be widely used in the mechanical instrument industry, vehicles, burning equipment, light industry and electrical component manufacturing, for mass and single production. 12-position tool head.

Have questions? Call us!

+48 25 631 00 27 ext.130

export@cormak.pl

Are you a member of the VIES group?

Yes - show prices with VAT 0%

VAT included

€49,925.00

The lowest price of this product in the last 30 days before the discount was €49,925.00 gross

Instructions in Polish
Service
Warranty 12/24 months
Delivery
Free

Technical parameters

Turning diameter over bed	500 mm
Turning diameter over support	290 mm
Max workpiece length	750 mm
Travel in X / Z axis	500/210 mm
Spindle bore	52 mm(option 66.86)
Spindle speed	3000 rpm /min.
Chuck size	210
Spindle motor	11 kW
Positioning accuracy X / Z	0.001 mm
Tool size	20x20 mm
Number of tools	12
Tailstock sleeve diameter	88 mm
Tailstock sleeve extension	85 mm
Tailstock Cone	MK5
Dimensions L/W/H	3700x1800x2100 mm
Weight	4600 kg

Available equipment

SINUMERIK 808D control in Polish
automatic reception Part (option)
12-tool head
chip collection
SIEMENS servo drives
3-jaw hydraulic lathe chuck
soft jaw set
hydraulic tailstock
cooling system
automatic lubrication system for gears and guides
24V halogen lighting
user manual in Polish

CNC controls – Siemens Sinumerik 808D, SINUMERIK 828D and Fanuc Oi-TF

We offer professional CNC controls from renowned brands Siemens and Fanuc, which ensure precision, efficiency and ease of use. Our solutions are ideal for both smaller workshops and demanding industrial applications.

Siemens Sinumerik 808D – compact CNC control for basic applications

Siemens Sinumerik 808D is a modern, economical CNC control dedicated to entry-level lathes and milling machines. The system was designed with small and medium-sized enterprises in mind, offering:

Intuitive operation – a simple interface based on a graphic screen that makes it easy to program and configure the machine.
High reliability – a durable design resistant to difficult working conditions in the workshop.
Wide compatibility – adapted to machines with basic technological requirements.
A perfect solution for beginner CNC users who want to start working on a modern control system.

Siemens Sinumerik 828D – advanced control for demanding applications

Sinumerik 828D is a professional CNC control designed to work with milling machines and lathes requiring greater precision and efficiency. Its key features include:

High computing power – fast data processing enables dynamic and accurate machining.
Extensive technological functions – advanced machining cycles, interpolation and tool path optimization functions.
Solid, compact design – designed to work in difficult industrial conditions.
Easy integration with automation – expandable with additional modules and production process control options.
Compatibility with CAD/CAM – seamless cooperation with design software and production management systems.

This is an excellent choice for companies looking for efficient and reliable CNC control for more complex machining operations.

Fanuc Oi-TF – stability and precision in machining lathe

Fanuc Oi-TF is one of the most popular CNC controls for lathes, known for its reliability and ease of use. This system is widely used in the metalworking industry due to:
