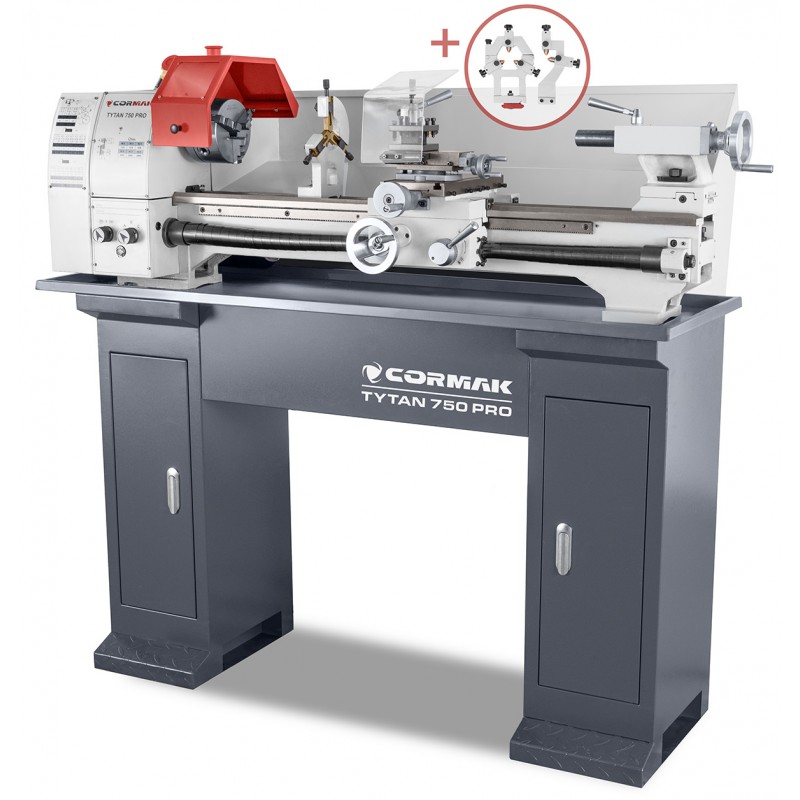

CORMAK TYTAN 250x750 PRO 400V universal lathe with base

TYTAN 750 PRO 400V metal lathe with spindle speed control using belts. Operating parameters: turning diameter 250 mm, turning length 750 mm, 1.1 kW motor at 400 V. The machine is designed for machining external and internal cylindrical surfaces, threading, drilling, countersinking and reaming holes. Ideal for use in small production plants, workshops or garages.

Have questions? Call us!

+48 25 631 00 27 ext.105

export@cormak.pl

Are you a member of the VIES group?

Yes - show prices with VAT 0%

VAT included

€2,122.50

The lowest price of this product in the last 30 days before the discount was €2,293.50 gross

Instructions in Polish
Service
Warranty 12/24 months
Delivery
Free

Machine description

The TYTAN 750 PRO 400V universal lathe , thanks to the change of speed on the belts, ensures constant power during processing, is an ergonomic machine and responds to the needs of the user. Reducing the time for setting the machine when processing parts with a wide range of dimensions translates into efficiency and ease of use.

Main advantages:

Threading feed screw – standard equipment enabling automatic longitudinal feed.
Solid machine bed – inductively hardened and ground guide ensuring stability and durability.
High concentricity – precision ball bearings (tolerance ≤ 0.015 mm) ensuring high accuracy.
Motor thermal protection – overload protection with warning lamp.
Sliding tailstock system – enables turning of cones.
Ergonomic arrangement of switches – easy and comfortable operation of the machine.
Guides adjusted using locking strips – precise calibration.
Spindle with P5 tapered roller bearings – two adjustable precision bearings ensuring smooth and accurate operation.
Longitudinal and cross feed – standard equipment for versatility.
Safety switch – with undervoltage release, providing protection against faults.
Modern design – solid, aesthetic machine construction guaranteeing longevity.

Machine base as standard

Technical parameters

3-jaw chuck	125mm
Maximum turning diameter over bed	250mm
Turning diameter over support	150mm
Turning length in fixed centers	750mm
Max. installed part length (turning chuck/spindle nose)	700mm
Bed width	135mm
Spindle passage	29mm
Spindle cone	MK4
Dimensions of lathe chuck	65x65x20mm
Maximum tool size	12x12mm
Upper sled travel range	70mm
Cross travel range	135mm
Longitudinal travel range	650mm
Spindle speed adjustment	(6) 125 - 2000 rpm
Spindle speed	: L: 50-1,125 / H : 100-2,250 rpm .
Number and range of metric threads	(18) 0.2 – 3.5 mm/rev.
Number and range of inch threads	(21) 8-56 TPI
Number and range of longitudinal feeds	(6) 0.07-0.4 mm/rev.
Tailstock bearing sleeve diameter	30mm
Tailstock bearing liner travel distance	60mm
Tailstock sleeve end	MK2
Engine power S1/S6	1.1/1.5kW/400V
Dimensions L/W/H (without base)	1310x610x480mm
Weight (without stand)	165kg
