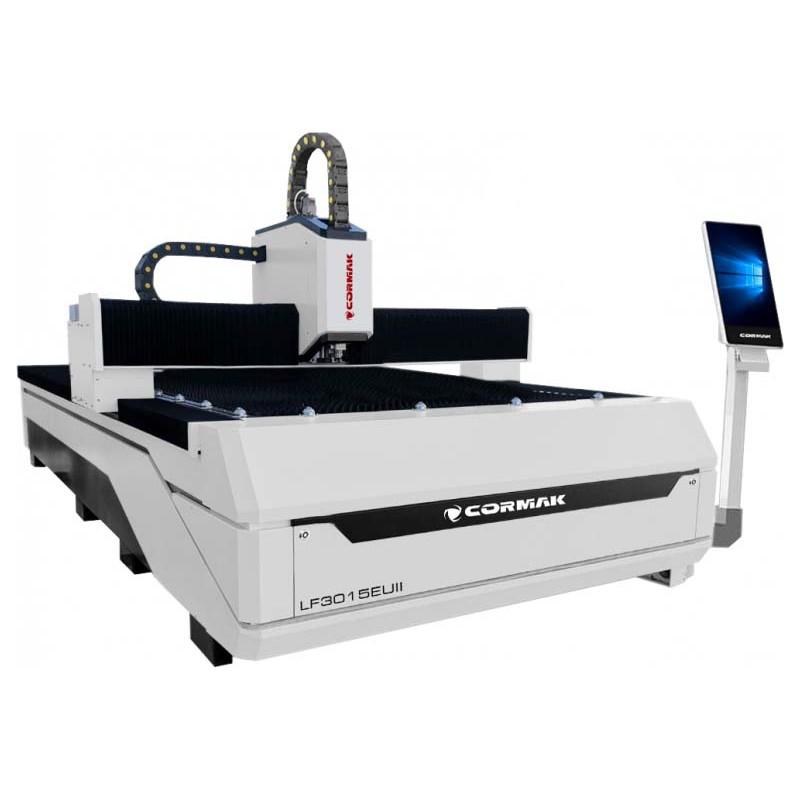

Fiber laser FIBER LF3015EP4 - 6000W

Fiber laser cutters are modern devices that stand out with numerous advantages. They are not only an excellent and much more cost-effective alternative to CO2 technology, but also have many advantages in themselves, which allow for the development of production (up to 70%) and improvement of its quality. FIBER technology allows for cutting sheet metal and other materials of various thicknesses from very thin to very thick. The wavelength in the FIBER laser is 1.064 micrometers. These properties affect the intensity, which is 100 times greater than in the case of CO2 devices of similar power.

THE GREATEST ADVANTAGES OF LASER ARE:

• Long service life . Collimator lenses and focusing lenses have a water cooling radiator, which lowers the temperature of the cutting head to extend the service life of the cutting head.
• Larger adjustment range . Adjustment range -10mm ~ +10mm, precision 0.01mm, suitable for various types of tiles 0 ~ 20mm.
• Autofocus (above 1500W) - Autofocus - Software automatically adjusts the focusing lens when cutting sheet metal of different thicknesses. The speed of autofocus is ten times faster than the speed of manual adjustment.








Design screen

The screen has a vertical display with a fast response time, higher contrast, wider view, low power consumption and high resolution. It also has a high level of
brightness and lower reflectivity, as well as greater durability.

Bed welded from rectangular profiles

The bed structure has an internal structure resembling a honeycomb, made of many rectangular tubes welded together. There are stiffeners inside the tubes, which increase the strength of the bed, and also increase the rigidity and stability of the guide rail to effectively prevent it from deforming. High strength, stability, tensile strength, ensuring 20 years of use without deformation.

Technical parameters

Cutting parameters

Actual parameters may vary depending on technical conditions and materials used.
