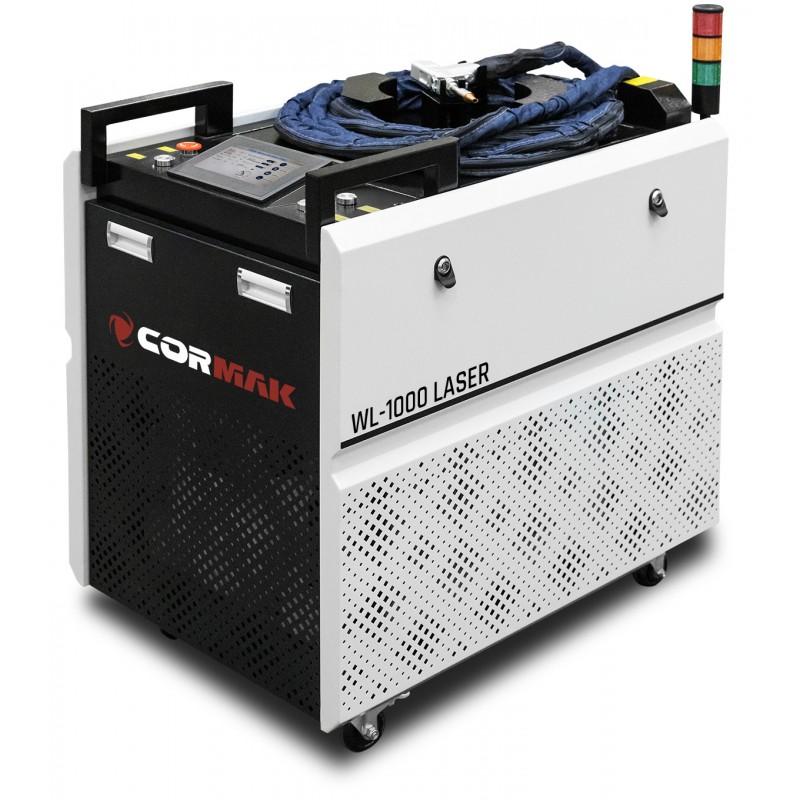

NEW CORMAK WL1000 3in1 Laser Welding Machine - Promotional Offer

Introducing the latest model of the CORMAK WL1000 industrial laser welder, which combines advanced FIBER technology with innovative design solutions, offering unparalleled precision and efficiency. This device is designed for welding various types of metals, which ensures the quality and repeatability of welds at the highest level. Thanks to the 3-in-1 function enabling welding, cutting and laser cleaning, the device is versatile and effective in many industries.

Possibility of presenting the work and carrying out tests at the client's premises - please contact us.

Have questions? Call us!

+48 25 631 00 27 ext.105

export@cormak.pl

Are you a member of the VIES group?

Yes - show prices with VAT 0%

VAT included

€10,475.00

The lowest price of this product in the last 30 days before the discount was €10,202.65 gross

There are not enough products in stock

I agree to the terms and conditions and the privacy policy

Instructions in Polish
Service
Warranty 12/24 months
Delivery
Free

Why choose CORMAK WL1000?

The CORMAK WL1000 laser welding machine is the perfect solution for professionals looking for reliability, precision and efficiency. Its innovative design and advanced cooling system make it a future-proof device that can handle even the most demanding welding tasks. Pre-order now and take advantage of this unique offer!

Key Features and Benefits

Advanced cooling system : A new, more efficient water cooling system ensures optimal operating temperatures, allowing you to work longer without interruption and increasing the lifespan of your device.
Innovative design : The ergonomic and lightweight design of the welding head allows for welding even in hard-to-reach places. Thanks to the adjustable spot size (0-5 mm) and replaceable nozzles, the operator has full control over the welding process.
Easy to use - thanks to the solutions used and the well-thought-out design, the operator can start working after a short training
Low indirect radiation, just wear protective glasses to filter strong light when working
Much faster welding than traditional methods, productivity can increase by 3 to 10 times
Concentrated beam: slight change in structure due to small heat-affected area,
Repeatability of welds, the weld seam is nice, the welds are of high strength.
Very thin materials such as 0.5 mm stainless steel can be welded.
Welding option with or without wire.
The integrated laser cleaning function increases the range of applications of the device.
Possibility of using the cutting option - ensures excellent cutting quality, without mechanical processing.

Technical parameters

Maximum power	1000 W
Laser wavelength	1080nm
Melting depth (stainless steel 1 m/min)	2.68mm
Melting depth (mild steel 1 m/min)	2.06mm
Melting depth (aluminum 1 m/min)	2.0mm
Melting depth (brass 1 m/min)	2.0mm
Welding speed	0-120mm/s
Automatic wire feeder	Ø 0.8 - 1.2 mm
Maximum power consumption	≤3kW
Cooling system	water
Operating voltage	230V
Shielding gas consumption	20L/min
Dimensions	600x1100x1100mm
Weight approx.	120kg

THICKNESSES OF WELDED MATERIALS
Material	WELDING MACHINE POWER
Material	1000 W	1500 W	2000 W	3000 W
Stainless steel	0.5-3.0mm	0.5-4.0mm	0.5-5.0mm	0.5-8.0mm
Black steel	0.5-2.5mm	0.5-3.5mm	0.5-4.5mm	0.5-8.0mm
Galvanized steel	0.5-1.2mm	1.5-1.8mm	1.5-4.0mm	1.5-7.0mm
Aluminum	0.5-1.2mm	1.5-1.8mm	1.5-4.0mm	1.5-7.0mm
Brass	0.5-1.2mm	1.5-1.8mm	1.5-2.5mm	1.5-4.0mm

WELDING HEAD OF THE LATEST GENERATION

    Automatic wire feeder included;
    Adjustable spot size 0-5mm;
    High-power welding head
    Integrated connections for shielding gases and cooling system,
    Interchangeable nozzles allow welding at different angles,
    7 m of optical fiber that connects the head with
    Full ergonomics - thanks to the lightweight and flexible design, the head can perform welds even in hard-to-reach places;
    Easy to service - quick and easy replacement of the protective lens.

Automatic wire feeder included

The wire feed system is synchronized with the welding machine software. The feeder's task is to feed the filler, thanks to which the operator can focus 100% on working with the head.

The set includes

laser welder with built-in cooling system
welding gun with focus adjustment and a set of accessories
Fiber laser source
automatic wire feeder
complete set of cables
starter kit of welding nozzles and protective glasses

The appearance of the device's casing is a matter of design and may vary depending on the date of order. However, the technical specifications remain unchanged, guaranteeing constant quality and performance of the device.

Manufacturer: Cormak
