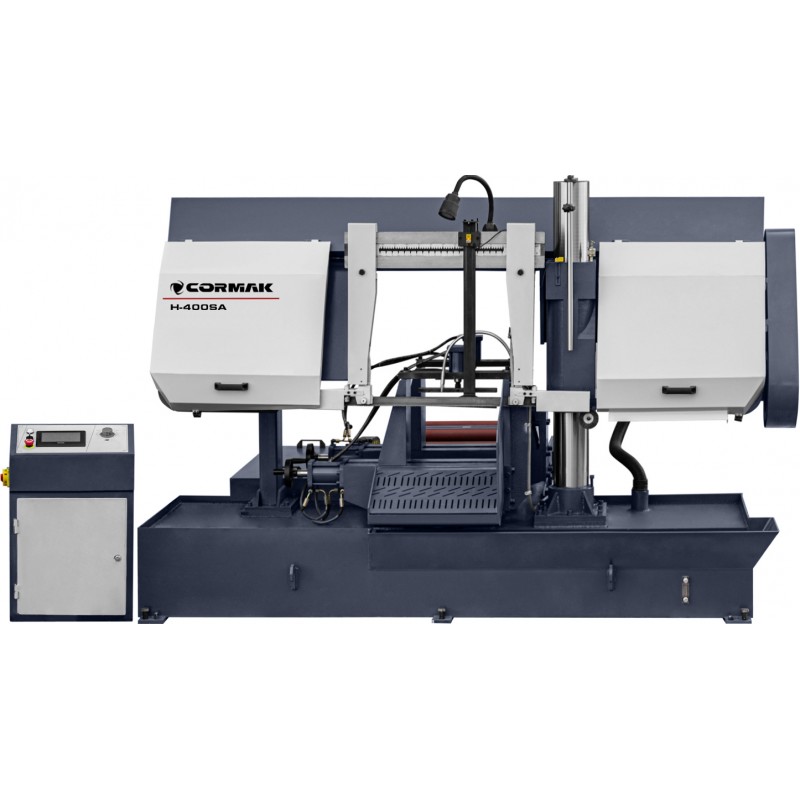

CORMAK H-400SA automatic column band saw for metal

The CORMAK H - 400SA column band saw is a high-performance machine for cutting bars, pipes and profiles made of steel, cast iron and non-ferrous metals in an automatic cycle. The solid body and strong frame of the saw, combined with the column construction, provide excellent rigidity and an exceptional level of stability during the cutting process of even the most difficult metals to machine. The cutter is equipped with a PLC controller and an easy-to-use touch screen.

Variant

S-200RHA Automatic Band Saw

C33 Automatic Column Band Saw

Automatic column band saw CORMAK H-260SA

Automatic column band saw CORMAK H-280SA

Automatic column band saw CORMAK H-300SA

CORMAK H-500SA automatic column band saw for metal

CORMAK HR-350SA automatic column band saw for metal

Automatic, column-type metal band saw CORMAK HR-500SA

Automatic, column-type metal band saw CORMAK HR-600SA

Have questions? Call us!

+48 25 631 00 27 ext.105

export@cormak.pl

Are you a member of the VIES group?

Yes - show prices with VAT 0%

VAT included

€20,100.00

The lowest price of this product in the last 30 days before the discount was €20,100.00 gross

access_time Shipping time: 7 working days after receipt of payment

Instructions in Polish
Service
Warranty 12/24 months
Delivery
Free

The cutter enables manual and automatic cutting.

Manual mode allows you to perform all actions manually from the desktop of the machine.

Automatic mode - after switching on the machine, the entire cutting cycle, i.e. fixing the cut detail in a vice, moving it to the specified dimension to the cutting band, lowering the cutting arm and raising it to the desired height after finishing cutting takes place without the operator's operation.

Cutting parameters, such as the number of pieces of cut details, their dimensions, the speed of the cutting band, the speed of the arm's descent, are set on the control panel. The device automatically stops when the series is cut, the cutting band breaks or another failure identified by the cutter's control system is detected.

The body of the machine is a cast iron set on a rigid, spatial plate structure of the casing. Inside the housing there are: a hydraulic unit, a coolant tank with a pump and a chip feeder. The steel structure of the frame is inclined at an angle of 3 degrees in relation to the surface of the feeding table, which is particularly beneficial when cutting rectangular elements and profiles.

The drive of the cutting band based on an inverter-controlled motor ensures smooth regulation in a large range of speeds. The hydraulic tension of the belt allows for optimal working conditions of the belt. If the saw blade breaks, the machine stops automatically. Precise belt guidance is ensured by guides consisting of guide bearings and inserts made of sintered carbides. The movable tape guiding head is set depending on the size of the material to be cut, which increases the stability of the tape operation. Maximum cutting parameters and extended saw blade life are ensured by the cooling system and the cleaning brush.

The hydraulically forced lowering of the arm is regulated in a wide range by a precise throttle valve. The fast feed system allows you to shorten the time of cutting individual elements.

Hydraulic material feeding system ensures a fully automatic working cycle of the machine. The controller equipped with an LCD display allows you to program the operation of the saw, signals the end of the material, communicates errors and informs about the number of cut sections after the programmed time. The maximum material feed length in one stroke is 500 mm with an accuracy of +/- 0.2 mm per stroke.

Innovativeness and production of CORMAK semi-automatic and automatic series cutters according to norms and standards compliant with ISO:90001 and ISO:140001 certificates, guarantee safety, quality and product reliability. The use of motors licensed by a well-known and respected manufacturer on the global market, one of the world's leaders, ABB, guarantees long and trouble-free operation.

Technical data

Cut range	Ø400 or 400 x 400
Tape	4900 x 41 x 1.3mm
Cut speeds	40/60/80 m/min.
Engine	4kW
Hydraulic power pack	1.5kW
Coolant pump	0.09kW
Feeder pitch	500mm
Dimensions	2600 x 2400 x 1700mm
Weight	1800 kg
