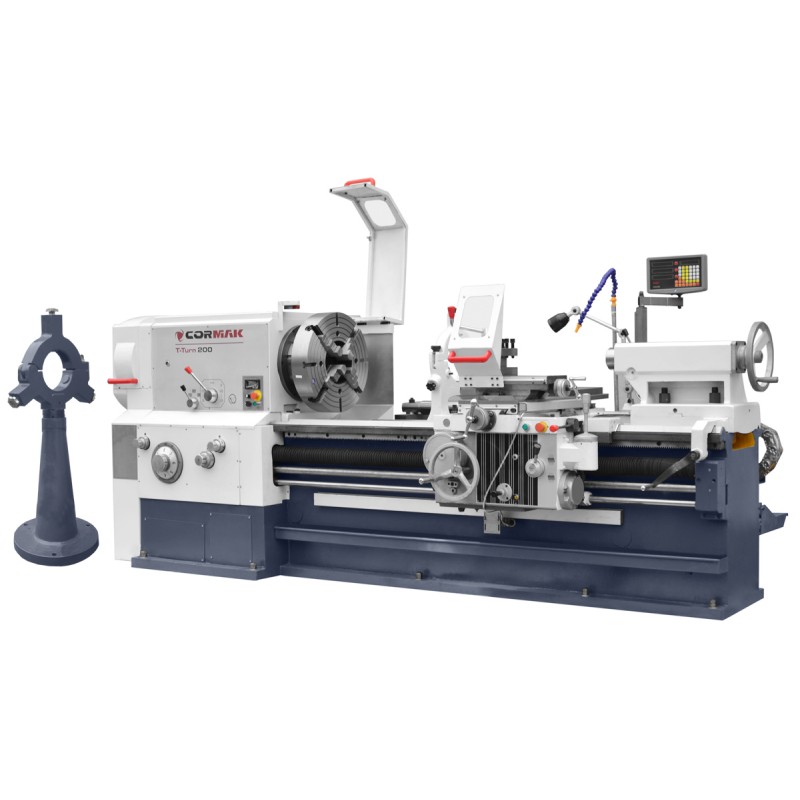

T-TURN 200 630x1300 Lathe for Tubes
Lathe equipped with a large spindle bore (200 mm) and a double holder for long pipes. Includes a steady rest.
Variant
T-TURN 130 630x1300 Lathe for Tubes
T-TURN 225 630 x 1300 Lathe for Tubes
Are you a member of the VIES group?
VAT included
€44,280.00
The lowest price of this product in the last 30 days before the discount was €43,128.72 gross
-
- Instructions in Polish
- Service
- Warranty 12/24 months
-
Delivery
Free
Machine description
- massive machine bed made of high quality cast
- large hardened, ground guides
- massive headstock equipped with a precise, mounted main spindle with 2 lathe chucks on both sides
- hardened and ground gears
- high performance due to high torque on the main spindle even when machining workpieces with large diameters
- motor with power 7,5 kW
- massive 4-position tool holder
- cooling system
- ruler for cones
Technical parameters
| Workspace | |
| Working lenght | 1300 mm |
| Swing over the bed | 630 mm |
| Swing over the support | 350 mm |
| Travels | |
| Travel in X axis | 340 mm |
| Travel in Z Axis | 1300 mm |
| Spindle | |
| Range of speed | 24 - 300 rpm/min |
| Spindle torque (max.) | 2050 Nm |
| Chuck diameter | 500 mm |
| Spindle bore | 200 mm |
| Spindle hole in the chuck | 200 mm |
| Speed feed |
|
| Speed feed in the X axis | 3000 mm/min |
| Speed feed in the Z axis | 4000 mm/min |
| Tools magazine |
|
| Number of tools | 4 pcs |
| Tool size | 32x32 mm |
| Tailstock | |
| Tailstock taper | MT 5 |
| Tailstock sleeve diameter | 100 mm |
| Tailstock sleeve travel | 230 mm |
| Motor | |
| Main motor power | 7,5 kW |
| Dimensions and weight |
|
| Dimensions | 3660 x 1450 x 1390 mm |
| Weight | 4190 kg |
Standard equipment
- 3-axes position indicator
- 4-position tool chuck
- 3-jaw chuck Ø 500 mm
- 4-jaw disc chuck 520 mm
- ruler for turning conical surfaces
- cooling system
- user manual
Manufacturer: Cormak
CORMAK JERZY ZALEWSKI
street Brzeska 120, 08-110 Siedlce, Poland
