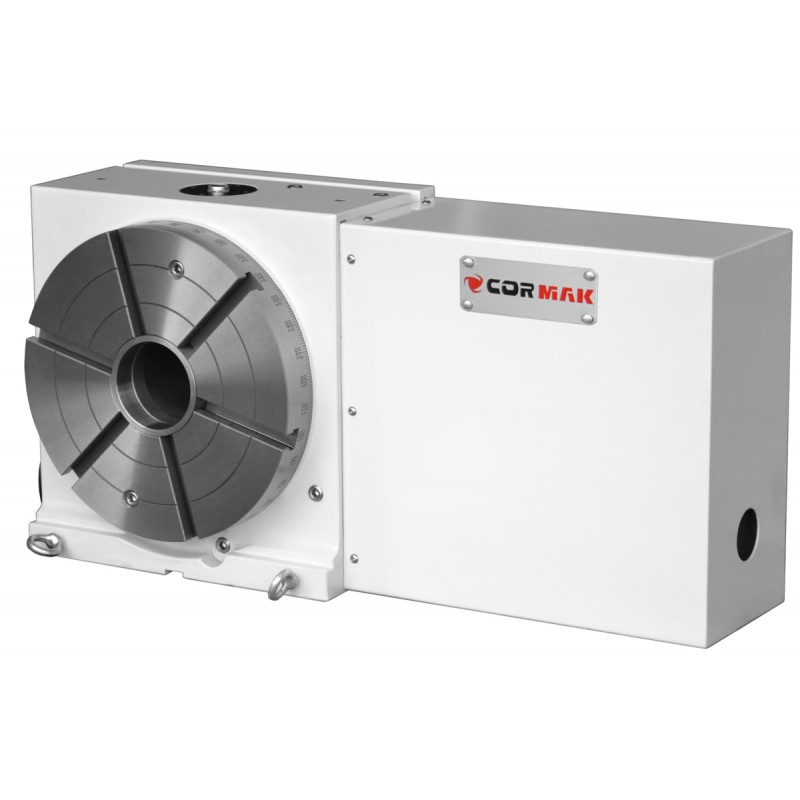

Rotary CNC Indexing Table

Rotary CNC Indexing Table -
  • Rotary CNC Indexing Table -
  • Rotary CNC Indexing Table -
  • Rotary CNC Indexing Table -

Indexing rotary CNC table available from Ø160 to Ø630 mm in diameter.

Have questions? Call us!

+48 25 631 00 27 ext.105

Are you a member of the VIES group?

Are you interested in this product?

Ask for price

  • CE
  • Instructions in Polish
  • Service
  • Warranty 12/24 months
  • Delivery
    Free

 Technical data

Table diameter Ø160 mm Ø210 mm Ø250 mm Ø315 mm Ø400 mm Ø500 mm Ø630 mm
MIddle height 135 mm 140 mm 160 mm 210 mm 260 mm 310 mm 400 mm
Total thickness 170 mm 180 mm 190 mm 210 mm 250 mm 290 mm 350 mm
Hole diameter Ø20 mm Ø25 mm Ø30 mm Ø40 mm Ø50 mm Ø60 mm Ø70 mm
Width of T-slots 4-12 mm 4-12 mm 6-12 mm 6-14 mm 6-14 mm 6-18 mm 6-18 mm
Worm gear ratio 1 : 80 1 : 90 1 : 90 1 : 90 1 : 120 1 : 150 1 : 120
Maximum speed 16.6 rpm 16.6 rpm 11.1 rpm 11.1 rpm 11.1 rpm 11.1 rpm 11.1 rpm
Motor power 0.9 kW 0.9 kW 1.0 kW 1.0 kW 2.1 kW 2.1 kW 2.1 kW
Horizontal table load capacity 200 kg 200 kg 250 kg 350 kg 500 kg 600 kg 800 kg
Vertical table load capacity 75 kg 75 kg 150 kg 175 kg 300 kg 350 kg 400 kg
Weight 55 kg 67 kg 110 kg 200 kg 325 kg 650 kg 1125 kg

Manufacturer: Cormak

CORMAK JERZY ZALEWSKI
street Brzeska 120, 08-110 Siedlce, Poland
