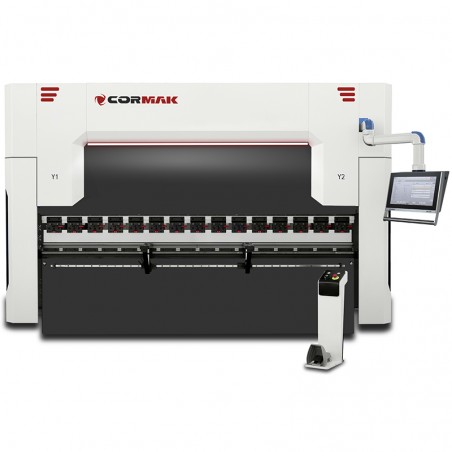

Main Features:

• Front supports: 2 pieces on linear guides, ensuring stability during bending operations

• Y1, Y2 axis adjustment: automatic on servo motor

• Back gauge adjustment (X axis): servo drive on encoders

• R axis adjustment: servo drive on encoders

• Automatic deflection arrow adjustment

• Mounting double-sided punch: AMADA quick assembly, enabling quick tool changes

• Motor: 22kW Hybrid SERVO+ reducing power consumption and noise generation

Technical parameters

Automatic adjustment of the deflection of the stops (X axis) and the R axis. The R axis facilitates bending of larger radii, e.g. with a stepper system.

Optional finger adjustment in axes Z1,Z2,R1,R2,X1,X2 on servo motors.

In order for the effect of the performed step bending to be satisfactory, it is necessary to perform certain calculations, which, however, require knowledge of several of the most important parameters related to the bending process - these are:

• Arc length - the distance between the ends of the curve of the bent part of the sheet metal counted on the inside of the bend;
• Number of bends - the number of individual bends that must be performed to obtain a bent sheet metal with a specified radius; the greater the number of bends, the smaller the angle of a single bend and, as a result, the smoother the arc;
• Distance between bends – the distance between individual bends made during the process.

Although the entire step bending process may seem quite complicated, the machines and software available at CORMAK are already at such an advanced stage that in many respects they completely replace the operator.

Automatic compensation of the deflection arrow as standard

Ensures the same bending angle along the entire bending length

Manual deflection arrow compensation (option)

Ensures the same bending angle along the entire bending length - (optional)
