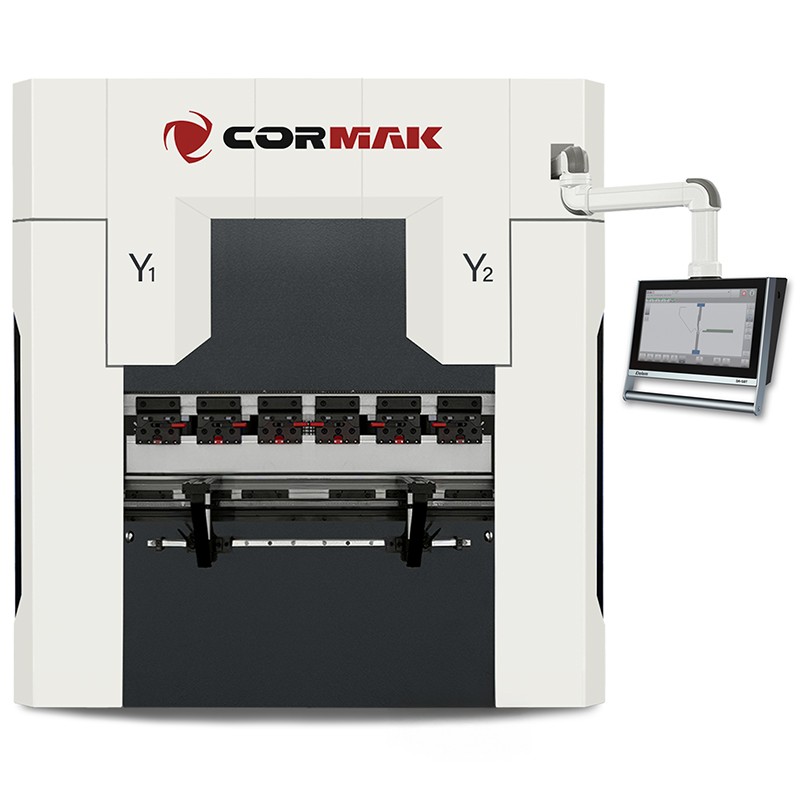

copy of Hydraulic press brake CORMAK CNC SERVO ELITE 40×1600 DA-58T
Cormak press brakes are advanced devices that enable precise bending of sheet metal thanks to appropriately selected punches and dies. Our offer includes models equipped with DELEM DA-58T controllers as standard and optionally DELEM DA53T, DA-66T, DA69T and CYBELEC 12 controllers, which provide a wide range of functions that enable the implementation of the most demanding bending tasks.
Are you a member of the VIES group?
VAT included
€59,500.00
The lowest price of this product in the last 30 days before the discount was €0.00 gross
-
- Instructions in Polish
- Service
- Warranty 12/24 months
-
Delivery
Free
Main Features:
-
Front Supports: 2 pieces on linear guides, providing stability during bending operations
-
Y1, Y2 Axis Adjustment: Servo drive with encoders
-
Rear Stop Adjustment (X axis): Servo drive with encoders
-
R Axis Adjustment: Servo drive with encoders
-
Automatic Deflection Arrow Adjustment
-
Bilateral Die Holder: Quick mount type AMADA, allowing for fast tool changes
Technical Parameters
| Max. thickness of bent sheet (S235) | up to 3.0 mm |
| Nominal pressure | 400 kN |
| Max. length of bent sheet | 1600 mm |
| Depth of the cut in the beams (gap) | 200 mm |
| Max. stroke of the moving beam | 100 mm |
| Max. opening height | 300 mm |
| Distance between beams | 1200 mm |
| Rear stop retreat | 600 mm |
| Motor power | 4.0 kW |
| Length | 1800 mm |
| Width | 1200 mm |
| Height | 1850 mm |
| Weight | 2600 kg |
Automatic adjustment of the rear stops (X axis) and R axis (manual option available). The R axis facilitates bending larger radii, e.g., with a step system.
Optionally, adjustment of fingers on axes Z1, Z2, R1, R2, X1, X2 with servomotors.
To ensure satisfactory results from the step bending process, it is necessary to perform certain calculations, which require knowledge of several key parameters related to the bending process – these are:
- Arc length – the distance between the ends of the bent part of the sheet metal measured along the inner side of the bend;
- Number of bends – the number of individual bends that must be performed to achieve a bent sheet with a specified radius; the larger the number of bends, the smaller the angle of each bend, resulting in a smoother arc;
- Distance between bends – the distance between individual bends made during the process.
Although the entire step bending process may seem quite complicated, the machines and software available at CORMAK are advanced enough to fully assist the operator in many aspects.
Automatic deflection arrow compensation
Ensures consistent bending angles along the entire length of the bend - (option)
Manual deflection arrow compensation (option)
Ensures consistent bending angles along the entire length of the bend - (option)
High-quality components:
- Electrical system components from Schneider/Delta/Eaton
Control and Functionality:
DELEM DA-58T
- equipped with a 10-inch touch screen, mounted on a movable arm, allowing freedom of operation in the entire working area of the machine
- Programmability: capability to save up to 2000 programs, with 30 steps each, enabling flexible adaptation to various tasks
- Ergonomic Operation: intuitive menu with English shortcuts facilitates quick onboarding
Also available are DELEM controllers DA-53T+2D, DA-66T and DA-69T, or CYBELEC 12
DA-53T+2D
Display
- 10.1" TFT LCD touch screen
- color
External Software
- offline station license Profile-53TL (bending sequence creation on PC)
System
- operating system Windows
- 200 MHz processor
- 1GB internal memory
- commands in Polish
- control logic preventing collisions of individual working axes
Features
- library of stamps and matrices /30 stamps & 60 matrices/ - descriptive and graphical library
- program library with the ability to preview graphics and product cataloging
- material database /ability to input new types of bent materials/
- create a drawing of the bent element on the controller display /2D/
- create a bending program based on the input product drawing /2D/
- operating the machine with the ability to preview 2D real-time bending sequences
- 2D bending simulation on the screen with collision preview /step-by-step bending simulation/
- system of warning messages /e.g., exceeding tool strength/
- ability to change the bending sequence, modify individual program steps
- ability to input and save corrections in memory
- manual operation mode
- ability to manually position individual axes of the stop
- control logic preventing collisions of individual axes X, R, Y1, Y2
- automatic calculation of the bending beam stroke
- automatic calculation of bending force depending on the type of bent material
- automatic calculation of stop position
- automatic calculation of inner radius and material unfolding
- ability to create backups of products and tools
- USB port
DA-58T
Display
- 15" TFT LCD touch screen
- color
External Software
- offline station license Profile-53TL (bending sequence creation on PC)
System
- operating system Windows
- 200 MHz processor
- 4Mb RAM
- max number of programs: 9999 (max 25 steps)
- max number of step repetitions: 99
- commands in Polish
- control logic preventing collisions of individual working axes
Features
- library of stamps and matrices /30 stamps & 60 matrices/
- descriptive and graphical library
- program library with the ability to preview graphics and product cataloging
- material database /ability to input new types of bent materials/
- create a drawing of the bent element on the controller display /2D/
- create a bending program based on the input product drawing /2D/
- operating the machine with the ability to preview 2D real-time bending sequences
- 2D bending simulation on the screen with collision preview /step-by-step bending simulation/
- system of warning messages /e.g., exceeding tool strength/
- ability to change the bending sequence, modify individual program steps
- ability to input and save corrections in memory
- manual operation mode
- ability to manually position individual axes of the stop; control logic preventing collisions of individual axes X, R, Y1, Y2
- automatic calculation of the bending beam stroke
- automatic calculation of bending force depending on the type of bent material
- automatic calculation of stop position
- automatic calculation of inner radius and material unfolding
- ability to create backups of products and tools
- USB port
- ability to create backups of products and tools
DA-66T
Display
- 17” TFT LCD touch screen
- color
External Software
- offline station license LITE T2D (bending sequence creation on PC)
System
- intuitive controller with commands in Polish
- stable operating system Windows CE
- 64Mb RAM
- max number of programs: 1000 /1Gb/
- max number of step repetitions: 99
Features
- create a drawing of the bent element on the controller display (2D)
- automatically create a bending program based on the product drawing (2D)
- automatic calculation of the beam stroke and bending force depending on the material
- automatic positioning of the stop according to the bending program visualization of the bending process in 3D (step-by-step bending simulation)
- automatic positioning of the stop fingers according to the specified segment of the die and matrix
- collision messages of the tool with the material
- warning messages about exceeding the permissible pressing force of the tools
- ability to change the order of bends
- automatic calculation of sheet unfolding
- ability to correct individual program steps
- ability to change the order of bending and correct individual steps
- manual control of individual axes of the stop (navigation knob)
- manual operation mode
- material database
- library of stamps and matrices
- program library with the ability to preview graphics and product cataloging
- counter of strokes and working hours
- USB port
- ability to create backups of products and tools
DA-69T
Display
- 17” TFT LCD touch screen
- color
External Software
- offline station license LITE T3D (bending sequence creation on PC)
System
- intuitive controller with commands in Polish
- stable operating system Windows CE
- 64Mb RAM
- max number of programs: 1000 /1Gb/
- max number of step repetitions: 99
Features
- import DXF files,
- import 3D functions to IGES & SAT from the LITE T3D program
- create a drawing of the bent element on the controller display (3D)
- automatically create a bending program based on the product drawing (3D)
- automatic calculation of the beam stroke and bending force depending on the material
- automatic positioning of the stop according to the bending program
- visualization of the 3D bending process (step-by-step bending simulation)
CYBELEC 12
Display
- 12” TFT LCD touch screen
- color
System
- intuitive controller with commands in Polish
- stable operating system Windows CE
- max number of stamps: 100
- max number of programs: 300
- max number of step repetitions: 24
- max number of materials: 10
Features
- User-friendly HMI interface
- 2D profile drawing and 3D visualization
- Automatic bending sequence
- Highest bending precision thanks to advanced algorithms
- Tandem
- Tool import.
- Preliminary / Final bending.
- Supports angle measurement.
- Supports barcode reader
- Configurable Industry 4.0
The machine combines advanced technology with ease of use, making it an ideal choice for both precise manual tasks and efficient mass production. High-quality components and advanced safety features ensure reliability and user safety.
Safety
Laser Safety System
Only with us, as standard, the highest class laser safety system protects the operator and accelerates the bending process more than twice.
We do not skimp on safety! The highest quality hydraulic connections and safety valves designed in Poland.
Beware of pseudo-safety measures such as gates or light curtains, as they do not comply with CE standards and expose employees to health risks. As an employer, you are responsible for the health of your employees!
Safety Covers Compliant with CE
Ergonomics and Additional Amenities:
- Mobile Controller on a movable arm
- LED Lighting: increases comfort and safety of work
- Linear guide supports
- Follow-up supports (option)
Follow-up supports on servomotors enable bending of larger sheets, which, along with the bending moment, raise the sheet at an angle, so that the bent arc does not deform and maintains the set angle.
We care about the safety of our Clients and their teams, which is why our bending presses are equipped with a range of advanced safety features. These include clear markings, side guards, a rear safety gate, and easily accessible emergency stops.
Each machine is delivered with a clear and detailed user manual in Polish.
Just because a machine has a CE declaration does not mean it is safe. What matters is what systems it is equipped with!
SCO – Oil Cooling System
With us as standard, a system that guarantees the stability of the machine's working parameters even after long, continuous operation.
Stamp and Matrix Mounting:
- Standard divided multi-groove four-sided matrices and divided stamps
- The basic system used in CORMAK bending presses is a manual AMADA type (European) system, allowing for quick tool changes
- Stamps are mounted from the side of the machine and locked with screws
Selection of Matrix and Stamp
Due to the final effect, it is also important to choose the right tools for the bending press, i.e., the matrix and stamp.
CORMAK bending presses continuously measure bending and can, for example, correct deviations during the process to achieve the most optimal result.
Depending on the press's pressing force, divided stamps and matrices may differ in length.
Included in the machine price
Training for up to 3 days along with machine installation
- Day 1 – machine installation and controller operation training.
- Day 2 – independent operation of the machine under the supervision of our technician – the possibility to program specific details that the Client produces.
- Day 3 – an additional training day to be used within 12 months – when questions arise during machine operation.
Telephone consultations with a specialist
You can always count on assistance from a specialist.
Cooperation Conditions
- 24 months warranty.
- The machine is brand new
- Warranty and post-warranty service provided by the seller
Manufacturer: Cormak
CORMAK JERZY ZALEWSKI
street Brzeska 120, 08-110 Siedlce, Poland
