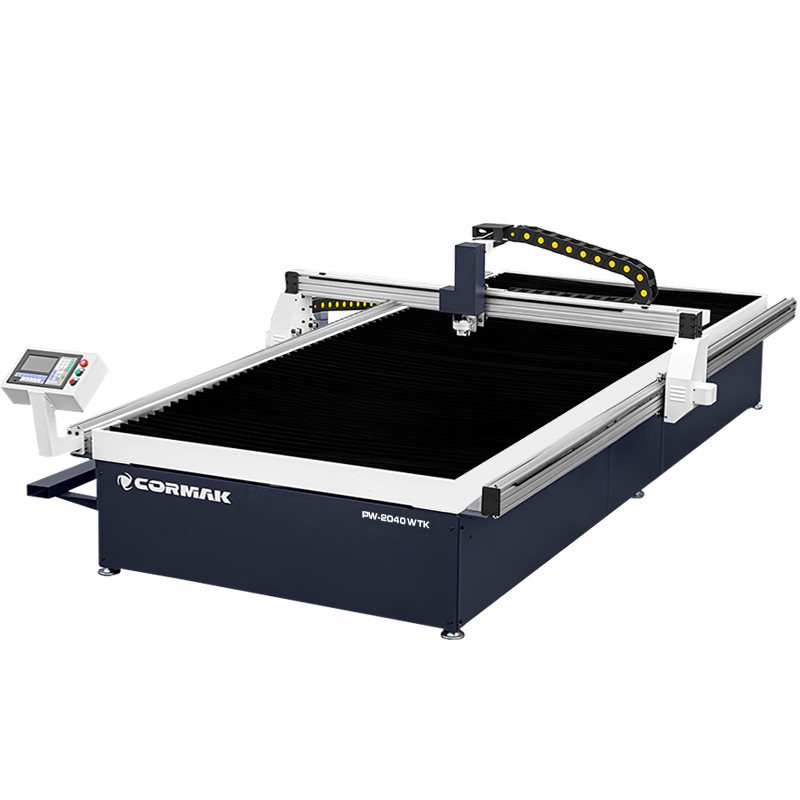

Plasma cutter PW-2040 WTK 2000x4000 with water table

Why is it worth it?

Features and equipment

• Dimensions 2450x4800x1500 mm (WxDxH) weight - 1000 kg
• Working area 2000 x 4000
• Y-axis range 140 mm (clearance)
• Cutting speed 50-7000 mm/min
• The use of a rigid and stable structure
• Water table
• Voltage height adjuster
• Burner height adjustment system
• Burner Height and Stabilization Sensor
• FastCAM program - in Polish with license
• USB port and internal and external memory
• User-friendly interface – easy to use even for people who have never worked with FastCAM-type programs
• Import of drawings in *.txt format from any program (e.g. AutoCAD, SolidWorks, etc.)
• MACRO – a library of standard geometric shapes. This allows you to create figures without having to draw.
• NESTING – automatic arrangement of elements on a sheet
• DEMO - Shows the work cycle (path) without switching on the plasma or oxygen source

The plotter is prepared for transport in order to protect the moving elements and reduce the size.
It requires the assembly of moving elements and covers exposed to damage during loading and unloading.
We offer the possibility of delivering a complex device - we agree individually due to the size of the machine.
