ZZ1500x3000 Plasma Cutter

Product characteristics

The plasma burner or oxygen-gas CNC1 burner is a mobile device designed for cutting shapes out of a metal sheet. The machine does not require anchoring, thus reducing the assembly time considerably. Additionally, it enables for placing the machine in any location within the hall without any new expenses. The machine is equipped with an excellent quality wheel system that together with the low weight portal makes the plotter one of the fastest machines available on the market.

The machine can be used for manual and automatic cutting. It is equipped with a digital controller that enables cutting out complicated shapes. The machine proves itself very well in the shipbuilding, machine-building and power industry. CNC1 has been equipped with a precise system of X/Y axes guides. The burner is controlled by Sino-USA electronic production system that is characterized by a high precision and elimination of the errors occurring during operation. The machine is very easy to configure. A manual configuration is possible for simple shapes and automatic configuration is possible for more complicated figures. The cutting pattern and the burner motion are shown on a display.

An original FastCAM software is attached to the machine for easy configuration. The software is in English which makes the work easier.

FastCAM is a technological CAD/CAM program, which is intended for designing and defining cutting paths of the elements cut out by CNC burning machines. The program shall be installed on an office PC or on a portable computer. After defining the way of cutting the operator receives a ready control code, which should be transferred to the control system of the machine. FastCAM program is a standard element of our machines.

BASIC INFORMATION

• User-friendly interface – easy operation, even for people without prior experience of working with such programs as FastCAM
• Import of drawings in the *.txt format from any programs similar to e.g. AutoCAD, SolidWorks etc.
• MAKRO – a library containing standard shapes enables creating figures without the necessity of drawing them in CAD system. The program provides 2D figures
• NESTING – an optimal usage of sheet metal thanks to the automatic arrangement of elements on a sheet
• DEMO – shows a working path without having to turn on the plasma source or oxygen

VOLTAGE HEIGHT CONTROLLER

The machine is equipped with THC (a voltage control of the plasma burner blowtorch height). A precise control (+/- 0.1 mm) of the plasma blowtorch distance from a sheet metal during cutting. Higher accuracy and absence of defects which capacitive sensors and roller disks have. The parameters of the controller are collected automatically from the Automatic Cutting Parameters Selection table.

Technical data

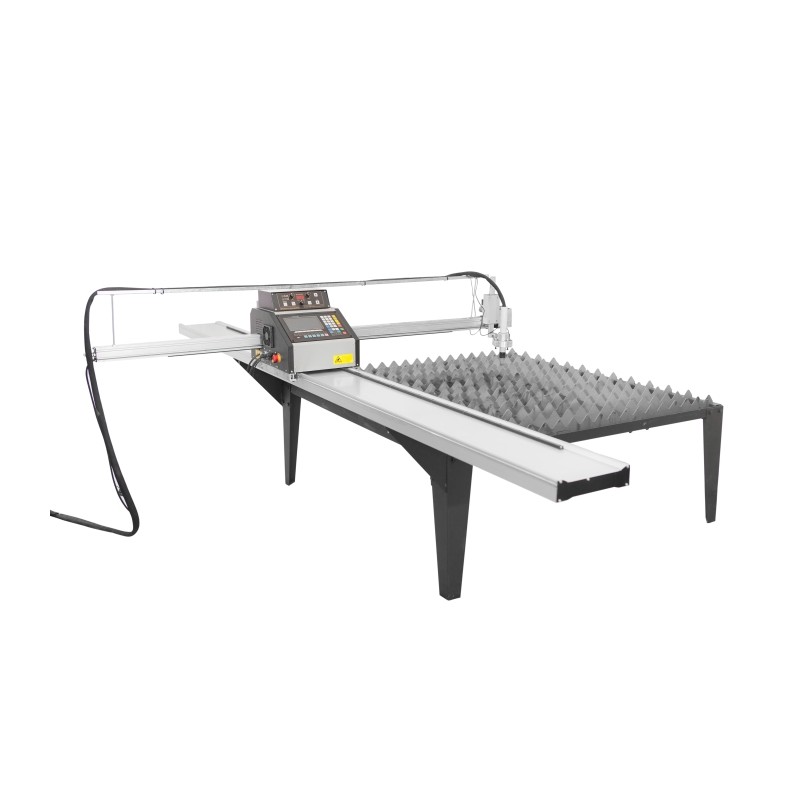

Illustrations are preview only, the device is sold without the table.
