CK7145 CNC Lathe
Variant
CK7150 CNC Lathe
Are you a member of the VIES group?
VAT included
€43,941.75
The lowest price of this product in the last 30 days before the discount was €43,941.75 gross
-
- Instructions in Polish
- Service
- Warranty 12/24 months
-
Delivery
Free
Technical data
|
Bed type |
Inclined 45° |
|
Guide type |
HIWIN linear guides |
|
Swing over bed |
ø 450 mm |
|
Swing over cross slide |
ø 170 mm |
|
Maximum working length |
500 mm |
|
Chuck diameter |
ø 200 mm |
|
X/Z axes speed |
240/400 mm |
|
Maximum spindle speed |
3500 rpm |
|
Spindle tip |
A2-5 |
|
Spindle bore |
ø 55 mm |
|
Maximum bar diameter |
ø 45 mm |
|
Spindle motor power |
7.5 kW |
|
X/Z axes torque |
7.5/7.5 Nm |
|
X/Z repeatability |
±0.003 mm |
|
Tool chuck |
8-position electrical tool chuck |
|
Tool shank diameter |
25×25 mm |
|
Tailstock spindle diameter |
ø 70 mm |
|
Tailstock spindle feed |
80 mm |
|
Tailstock spindle taper |
MT5 |
|
Tailstock feed |
200 mm |
|
Weight |
3125 kg |
|
Dimensions |
2500×1800×1700 mm |
Equipment
- SIEMENS 808D control system
- 3-jaw hydraulic chuck
- shavings transporter
- 8-position turret head
- set of soft jaws
- hydraulic tailstock
- cooling system
- automatic gear and guide lubrication system
- 24V halogen lighting
- Polish and English manuals
- EC declaration
Manufacturer: Cormak
CORMAK JERZY ZALEWSKI
street Brzeska 120, 08-110 Siedlce, Poland
See online videos
Related categories
Are you interested in this product?
Contact with us
phone: +48 501 944 934
export@cormak.pl
phone: +48 609 939 400
export@cormak.pl
phone: +48 609 939 051
export@cormak.pl
phone: +48 609 939 741
export@cormak.pl
You might also like
16 other products in the same category:
LUFT 1000 Compressor Set - 7.5kW - 950 L/min. + IZBERG N10S dehumidifier + 1000 L vertical cylinder
The set includes a LUFT 1000 screw compressor , a vertical cylinder with compressed air accessories with a capacity of 1000 l and an IZBERG N10S dryer . The screw compressor of the Polish brand CORMAK , the LUFT series , is the most modern ...More
- Reduced price
WLTC Mobile Transport Forklift Pallet Stacker 200 kg 900mm
Standard equipped with forks and rollers! Easy to maneuver stacker with a compact design that facilitates the lifting and handling of pallets up to 200 kg. Also great for transport purposes and for outbound work. The product weighs only 40 kg. The possibility of fork spacing allows ...More
- On sale!
CORMAK RGE30PW threading machine
The electric threading machine is a versatile threading tool, ideal for both large factories and small workshops. It has a simple and compact design with a movable head and a high-torque servo drive, which ensures strong and reliable operation. The threading machine offers easy and quick tap ...More
THEOR H2020 COMPACT screw compressor + N30S dryer + 25 BAR 1000 L pressure tank
A set containing the THEOR H2020 COMPACT screw compressor, a vertical compressed air cylinder with a capacity of 1000 liters and an N30S dryer. The THEOR series screw compressor of the Polish brand CORMAK is the most modern solutions used in pneumatics combined with the use of high-quality ...More

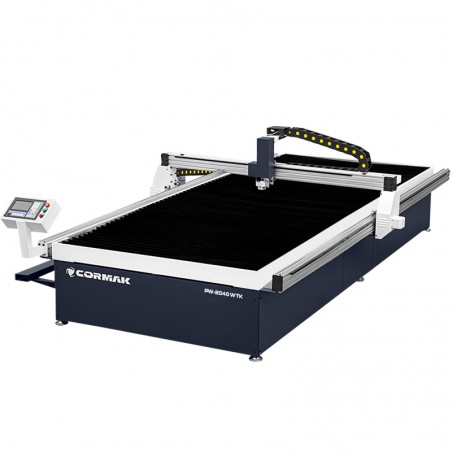

Plasma cutter PW-2040 WTK 2000x4000 with water table
The CNC plasma cutter with a water table is a device designed to cut sheet metal elements in any programmed shape. This machine is characterized by a solid construction and ease of use. Our CNC cutter guarantees repeatability and high cutting accuracy (0.1 mm), thanks to which the cut shapes ...More
- Reduced price

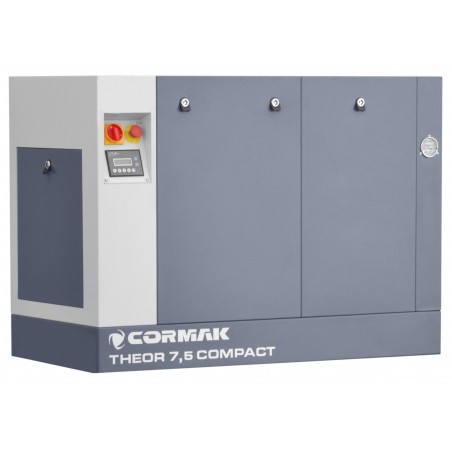

THEOR 7.5 COMPACT - Screw Compressor THEOR 7.5 + N10S Air-Dryer
