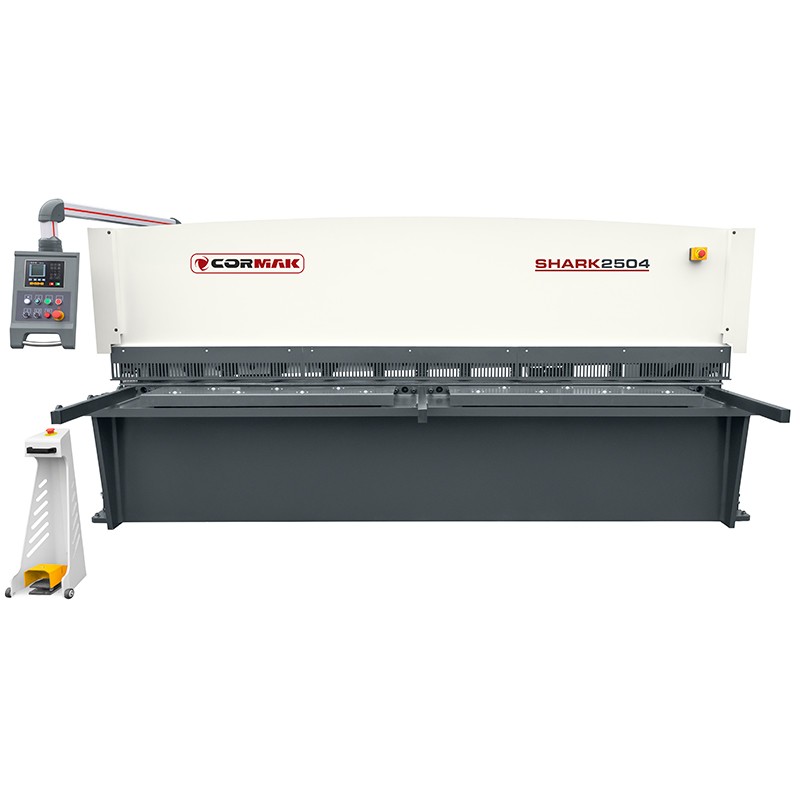

Hydraulic guillotine shears NC 4x2500

Hydraulic guillotine shears are advanced machines designed for precise cutting of sheet metal of various thicknesses and hardness. Thanks to the use of a hydraulic drive, they provide high pressure force, enabling effective processing of even the most demanding materials. Solid construction and modern control systems guarantee accuracy, repeatability and safety of work. These are irreplaceable devices in industrial plants and workshops dealing with metal processing.

Have questions? Call us!

+48 25 631 00 27 ext.105

export@cormak.pl

Are you a member of the VIES group?

Yes - show prices with VAT 0%

VAT included

€22,047.50

The lowest price of this product in the last 30 days before the discount was €29,212.50 gross

There are not enough products in stock

I agree to the terms and conditions and the privacy policy

Instructions in Polish
Service
Warranty 12/24 months
Delivery
Free

Technical parameters

Max. thickness of cut sheet metal (S235)	up to 4.0 mm
Maximum length of cut sheet metal	2500 mm
Cutting angle	1.5°
Number of strokes per minute	6-20
Rear bumper departure	600 mm
Engine power	5.5 kW
Length	3200 mm
Width	1450 mm
Height	1700 mm
Weight	3200 kg

Equipment:

Rear bumper driven by an electric motor (on ball screws)
Hydraulic sheet metal clamps along the entire cutting length
Adjustment of the gap between knives
Ball sheet metal guides on the table
Workspace lighting
Front supports
Mobile controller foot

Rear ramp:

The rear ramp is equipped with ball guides, which ensures smooth and precise movement of cut-off elements. Thanks to this, no piece of material remains on the machine, which increases work efficiency and safety.

Control and Functionality:

ESTUN E21S

Control: Precise backgauge adjustment.
Program memory: Up to 40 programs can be stored, each with a maximum of 25 steps.
Retract function: Automatically retracts the backgauge after cutting.
Saving parameters: One-button saving of settings.
Data protection: Saving parameters in the event of a power failure.

Steel hydraulic connections

The use of steel pipes in hydraulic systems instead of flexible rubber hoses significantly increases the tightness of the system and minimizes the risk of leaks in the future. Thanks to their stiffness and resistance to mechanical damage, steel pipes ensure durability and reliability of hydraulic connections.

Ergonomics

Thanks to the mobile controller and the controller placed on the movable arm, the operator gains full freedom of action throughout the entire working area of the machine. Additional LED lighting and a laser pointer provide excellent visibility of the processed elements, which translates into precision and comfort of work in all conditions.

Safety

With the safety of operators and employees in mind, our guillotine shears have been equipped with a number of solutions to minimize risk during work:
