CORMAK BS128 HDRC 400V metal band saw + 2 M42 saws + 5L Emulgol + ZW580

Machine description

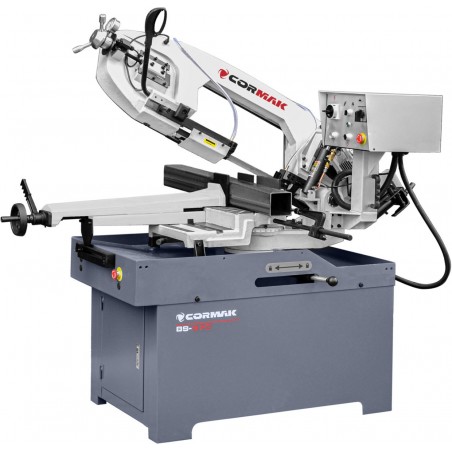

CORMAK BS 128HDRC band saw for metal with optimal cutting range, designed for professional craftsmen, distinguished by efficiency and easy handling. Arm swivelling in both directions is a very big advantage in angled cutting. Despite small dimensions, its weight (103 kg) makes it stable and vibration-free during cutting materials. Element cut can be fed manually or via feeding machines. Feed during cutting is gravitational, with oil flow in a two-chamber hydraulic cylinder. Arm lowering control is ensured by a valve controlling oil flow between chambers of cylinder. Straight cut is achieved by a set of bearings guiding the band. Machines are equipped with a limiting switch and ON/OFF switch compliant with IP54. Swivelling saw frame for double bevelling within -45^o - + 60^o.

Technical data

 Maximum cutting range [mm]

Angle
0°	ø125 mm	150×100 mm	120×120 mm
-45°	ø95 mm	95×76 mm	85×85 mm
+60°	ø50 mm	56×55 mm	45×45 mm

Default equipment

• 3rd generation hydraulic cylinder
• Table for vertical cuts
• Quick-clamping vice
• Coolant system
• Workpiece limiter - bumper
• Automatic limiting switches
• Modern thermal engine protection
• Mobile base with four wheels
• User manual

Additional

• 2 blades M42,
• 5L Emulgol
• Magnetic chip collector ZW580
