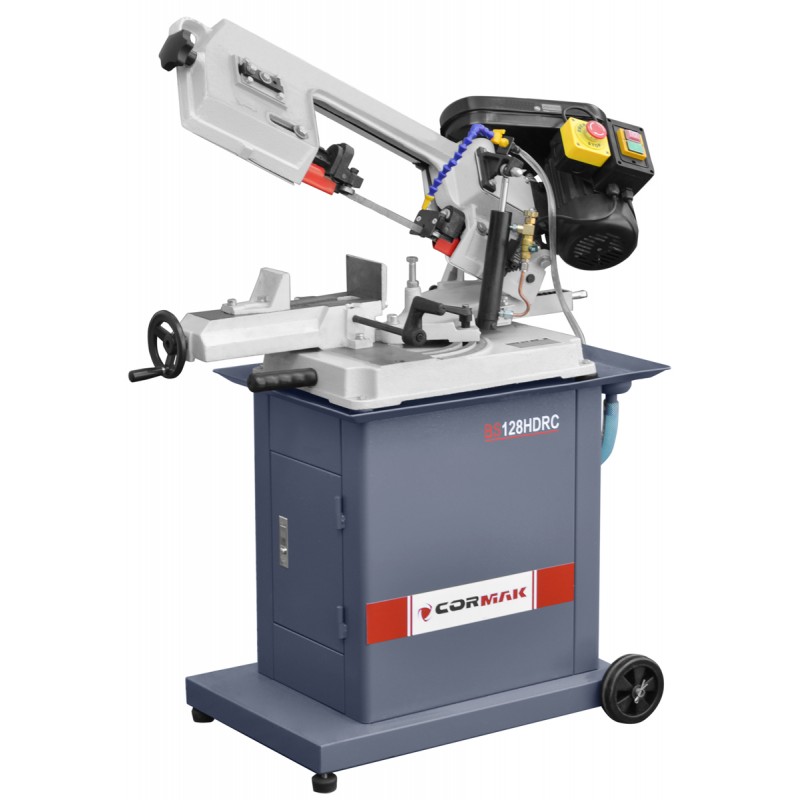

BS128HDRC 230V Metal Band Saw

Machine description

CORMAK BS 128HDRC band saw for metal with optimal cutting range, designed for professional craftsmen, distinguished by efficiency and easy handling. Arm swivelling in both directions is a very big advantage in angled cutting. Despite small dimensions, its big weight (90 kg) makes it very stable and vibration-free during cutting larger materials. Element cut can be fed manually or via feeding machines. Feed during cutting is gravitational, with oil flow in a two-chamber hydraulic cylinder. Arm lowering control is ensured by a valve controlling oil flow between chambers of cylinder. Straight cut is achieved by a set of bearings guiding the band. Machines are equipped with a limiting switch and ON/OFF switch compliant with IP54. Swivelling saw frame for double bevelling within -45^o - + 60^o.

Technical data

 Maximum cutting range [mm]

Angle
0°	ø125 mm	100×150 mm	100×100 mm
-45	ø90 mm	90×75 mm	90×90 mm
+45°	ø90 mm	90×75 mm	90×90 mm
+60°	ø55 mm	55×55 mm	55×55 mm

Default equipment

• 3rd generation hydraulic cylinder
• Table for vertical cuts
• Quick-clamping vice
• Coolant system
• Workpiece limiter - bumper
• Automatic limiting switches
• Modern thermal engine protection
• Mobile base with four wheels
• User manual
