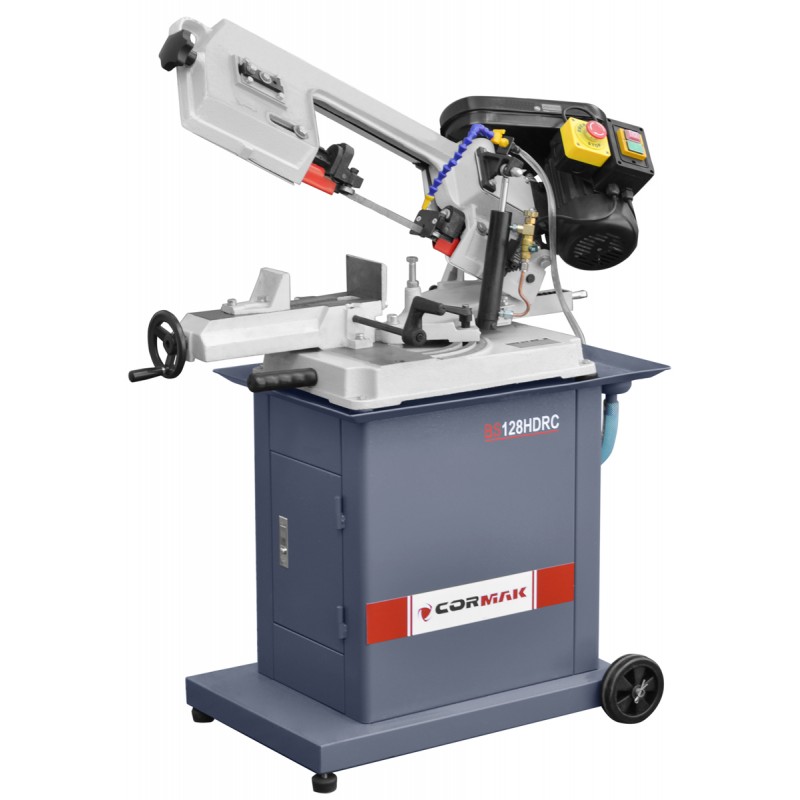

BS128HDRC 400V Metal Band Saw 13mm
Band saw for metal with optimal cutting range, commonly used in carpentry, production and craft facilities.
Are you a member of the VIES group?
VAT included
€693.41
The lowest price of this product in the last 30 days before the discount was €630.38 gross
Shipping time:
7 working days after receipt of payment
-
- Instructions in Polish
- Service
- Warranty 12/24 months
-
Delivery
Free
Machine description
CORMAK BS 128HDRC band saw for metal with optimal cutting range, designed for professional craftsmen, distinguished by efficiency and easy handling. Arm swivelling in both directions is a very big advantage in angled cutting. Despite small dimensions, its weight (103 kg) makes it stable and vibration-free during cutting materials. Element cut can be fed manually or via feeding machines. Feed during cutting is gravitational, with oil flow in a two-chamber hydraulic cylinder. Arm lowering control is ensured by a valve controlling oil flow between chambers of cylinder. Straight cut is achieved by a set of bearings guiding the band. Machines are equipped with a limiting switch and ON/OFF switch compliant with IP54. Swivelling saw frame for double bevelling within -45o - + 60o.
Technical data
| Cutting band size | 1640×13×0.65 mm |
| Cutting speed | 23/34/54 m/min |
| Power | 0.55 kW/400V |
| Arm lowering control | stepless, through hydraulic cylinder |
| Cutting range | -45° - + 60° |
| Dimensions | 942×442×548 mm |
| Weight | 103 kg |
Maximum cutting range [mm]
| Angle |  |
 |
 |
| 0° | ø125 mm | 150×100 mm | 120×120 mm |
| -45° | ø95 mm | 95×76 mm | 85×85 mm |
| +60° | ø50 mm | 56×55 mm | 45×45 mm |
Default equipment
- 3rd generation hydraulic cylinder
- Table for vertical cuts
- Quick-clamping vice
- Coolant system
- Workpiece limiter - bumper
- Automatic limiting switches
- Modern thermal engine protection
- Mobile base with four wheels
- User manual
Manufacturer: Cormak
CORMAK JERZY ZALEWSKI
street Brzeska 120, 08-110 Siedlce, Poland
