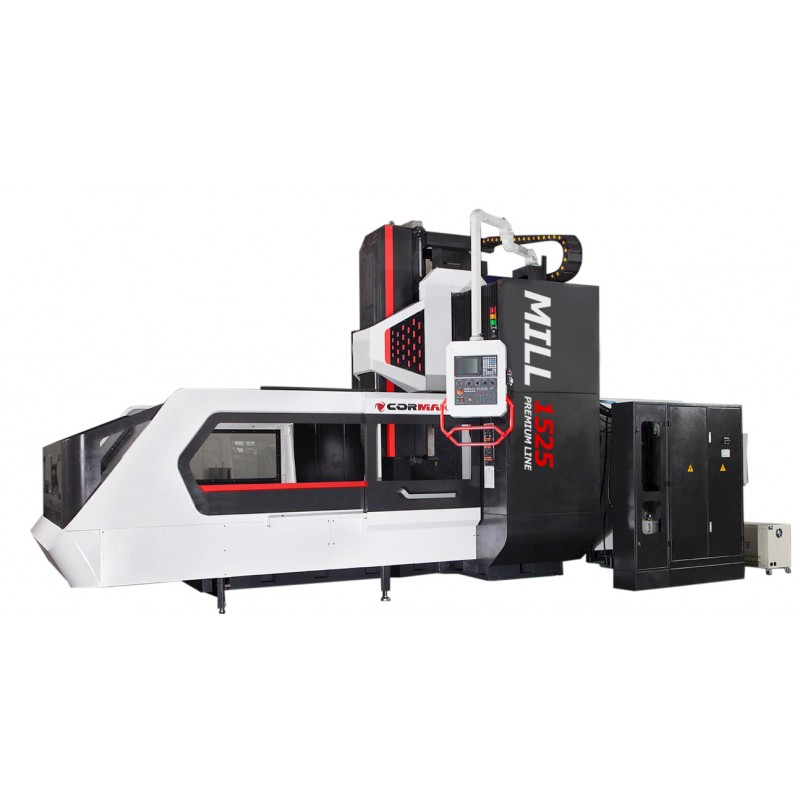

MILL1525 Gantry Type Machining Centre
Machines from the PREMIUM LINE series were created in order to fulfill the requirements of the most demanding users. The high quality and reliability of components ensure higher precision and efficiency of machining with the usage of multiple tools. Machining centres are built with parts from the best Taiwanese, German, Japanese and Chinese manufacturers, such as HIWIN, POSA, SIEMENS, FANUC, OMRON, PRAGATTI, SHNAIDER, CHANDOX, FAG, BOSCH REXROTH.
Are you a member of the VIES group?
-
- Instructions in Polish
- Service
- Warranty 12/24 months
-
Delivery
Free
Technical data
|
Table dimensions |
2500×1500 mm |
|
Spindle taper |
BT50 |
|
Travel range |
2700×1700×1000 mm |
|
Number/width/distance of T-slots |
7–28–160 mm |
|
Table load capacity |
6000 kg |
|
From spindle to table surface distance |
150–1150 mm |
|
Distance between columns |
1750 mm |
|
X/Y/Z quick feed |
8/12/8 m/min |
|
Feed speed |
1–4000(X/Y)/1–2000(Z) mm/min |
|
Spindle speed |
30–3200 rpm |
|
Motor power |
15/18.5 kW |
|
Positioning accuracy |
0.005 mm |
|
Positioning repeatability accuracy |
0.003 mm |
|
Dimensions |
8260×4200×4700 mm |
|
Weight |
25000 kg |
Available equipment
- SIEMENS 808D
- SIEMENS 2-year warranty
- 8000 RPM spindle
- Linear guides
- 3-colour alarm indicators
- Lighting
- Hermetic body of the machine
- Automatic lubrication system
- Pneumatic system
Optional equipment
- SIEMENS 828, Heidenhain, FANUC control systems
- spindle range of 10000 / 12000 rpm
- cooling via spindle 20 bar / 40 bar
- 4th axis
- belt shavings ejector + container
- oil separator
- automatic door
- Renishaw TS-27 automatic tool setting probe
- OMP60 optical transmission probe
Manufacturer: Cormak
CORMAK JERZY ZALEWSKI
street Brzeska 120, 08-110 Siedlce, Poland
