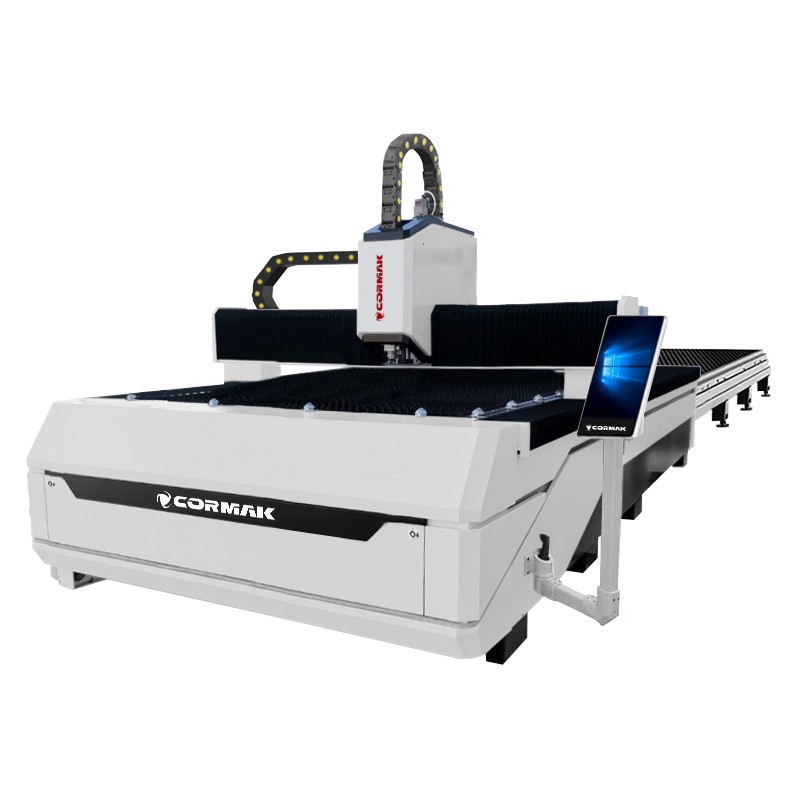

FIBER LF3015EPT 4000W fiber laser with interchangeable table

Fiber laser cutters are modern devices that stand out with numerous advantages. They are not only an excellent and much more cost-effective alternative to CO2 technology, but also have many advantages in themselves, which allow for the development of production (up to 70%) and improvement of its quality. FIBER technology allows for cutting sheet metal and other materials of various thicknesses from very thin to very thick. The wavelength in the FIBER laser is 1.064 micrometers. These properties affect the intensity, which is 100 times greater than in the case of CO2 devices of similar power.

THE GREATEST ADVANTAGES OF LASER ARE:

Sliding gate made of seasoned aircraft aluminum

The sliding gate structure is made of seasoned aircraft aluminum formed with a force of 4300 tons, achieving incredible stiffness. Aircraft aluminum has many advantages: high stiffness (greater than cast iron), low weight, resistance to corrosion and oxidation, and good machinability.

• Long service life . Collimator lenses and focusing lenses have a water cooling radiator, which lowers the temperature of the cutting head to extend the service life of the cutting head.
• Larger adjustment range . Adjustment range -10mm ~ +10mm, precision 0.01mm, suitable for various types of tiles 0 ~ 20mm.
• Autofocus (above 1500W) - Autofocus - Software automatically adjusts the focusing lens when cutting sheet metal of different thicknesses. The speed of autofocus is ten times faster than the speed of manual adjustment.








Design screen

The screen has a vertical display with a fast response time, higher contrast, wider view, low power consumption and high resolution. It also has a high level of
brightness and lower reflectivity, as well as greater durability.

Bed welded from rectangular profiles

The bed structure has an internal structure resembling a honeycomb, made of many rectangular tubes welded together. There are stiffeners inside the tubes, which increase the strength of the bed, and also increase the rigidity and stability of the guide rail to effectively prevent it from deforming. High strength, stability, tensile strength, ensuring 20 years of use without deformation.

Replaceable work table

The interchangeable worktable consists of an upper and lower platform, the movement and exchange of which are controlled by the controller. The machine is able to complete the exchange of the platform within 15 s.

Technical parameters

Cutting parameters

Actual parameters may vary depending on technical conditions and materials used.
