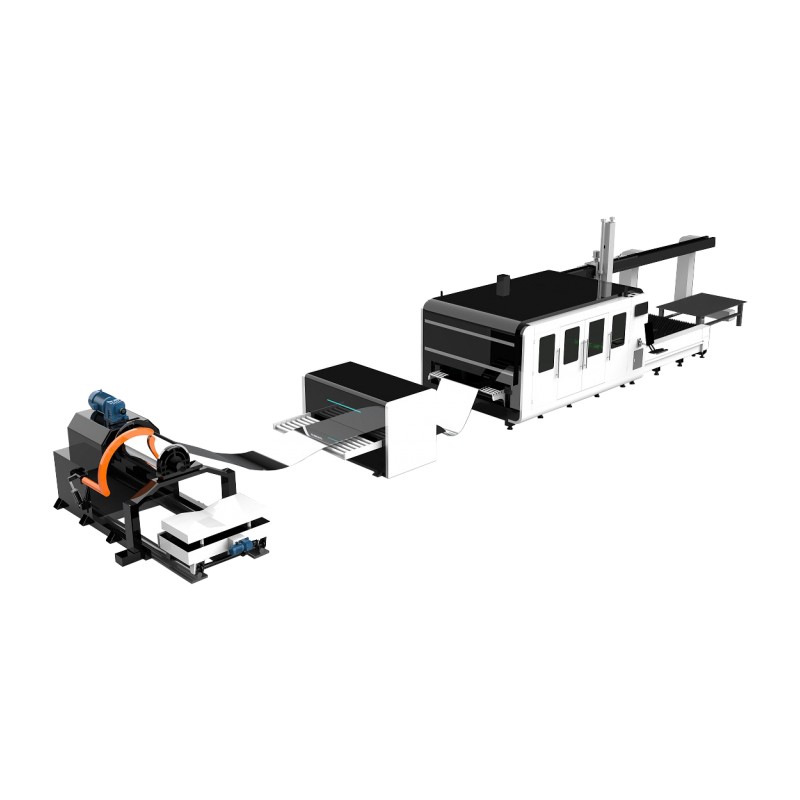

A specialized fiber laser with an automatic sheet feeder. The fiber laser is also equipped with a vacuum holder enabling automatic unloading of the finished product, which significantly saves time and improves efficiency.
Lasery światłowodowe zaprojektowane i składane w Polsce
Fiber optics laser cutters constitute modern devices with many advantages. These are not only a perfect and more profitable alternative to the CO2 technology, but they also possess a lot of pros by themselves, such as improving the production by considerable margin and increasing its quality. FIBER technology allows for cutting sheets and other materials of various thickness: from very thin to very thick. The length of a wave in a FIBER laser is 1.064 micrometre long. These properties influence the intensity, which is a hundred times higher than in the case of CO2 devices of similar power.
The biggest advantages of the laser are
failure-free optical fiber cable
no elements that wear out
the source of the fiber optic laser takes 1/3 less space
high energetic efficiency - 100000 hours of work
universal applicability (specific metal sheets, carbon and stainless steel, copper, brass, aluminium, titanium)
Optical fiber laser
increases the efficiency by 80%
reduces the handling costs by 70%
saves 80% of energy
minimises the consumption of gas
saves space in the workplace by 30%
Unwinding machine
The machine unwinds the material from the roll. The width of the coil can be from 100-1300 mm wide and weigh up to 10 tons.
Leveling feeder
The feeder aligns the material with an accuracy of ± 0.01 mm
Automatic material unloading
The fiber laser is equipped with a vacuum holder enabling automatic unloading of the finished product, which significantly saves time and improves efficiency.
Sliding gate made of annealed aircraft aluminium
The construction of the sliding gate is made of annealed aircraft aluminium, formed with a strength of 4300 tonnes, achieving unprecedented rigidity. Aircraft aluminium has many advantages: high rigidity (higher than cast iron), small mass, resistance to corrosion and oxidation as well as susceptibility to machining.
RayTools head
Automatic focus regulation – Autofocus – The software automatically regulates the focusing lens during cutting metal sheets of various thickness. The speed of automatic focus regulation is 10 times higher than the speed of manual regulation.
Greater range of manual regulation – The range of regulation -10mm - + 10 mm, precision of 0.01 mm is useful in when it comes to materials of different thickness (0–20 mm) – Below 1500W.
Long durability. Collimating lenses and converging lenses possess a heat sink which cools down water, in turn decreasing the temperature of a cutting head, in order to improve the durability of the cutting head.
Bed welded using rectangular profiles
The inner structure of the bed forms a metal cell structure similar to a honeycomb patch, which is welded multiple rectangular tubes. Inside these tubes are stiffeners, which improve the durability and the stretching durability and stability of the guide rail, in order to avoid the deformation of the bed.
High durability, stability, stretching durability, amounting to 20 years of usage without deformations
The thickness of the rectangular sheet of a tube is 10 mm and 4500 kg
A specialized fiber laser with an automatic sheet feeder. The fiber laser is also equipped with a vacuum holder enabling automatic unloading of the finished product, which significantly saves time and improves efficiency.
Fiber laser for cutting large-format metal sheets with dimensions of 6000x2000 mm. The laser uses a system of interchangeable tables to further speed up the laser cutting process. Stable operation is guaranteed by components from global manufacturers, such as: YASKAWA servomotors, HIWIN linear guides and the Raytools head.
Fiber laser DESIGNED AND MADE IN POLAND. We configure lasers according to individual customer needs.
Open fiber laser with a 2000x4000 mm worktable equipped with components from world manufacturers. Our offer also includes other sizes of work tables. Fiber laser DESIGNED and ASSEMBLED in POLAND. We configure lasers according to individual customer needs.
Open laser cutting machine with a source power of 1000W to 3000W, equipped with components from world-class manufacturers, enables fast cutting of metal sheets with dimensions of 1500x3000 mm. Fiber laser DESIGNED and FOLDED in POLAND. We configure lasers according to individual customer needs.
Open fiber laser with source power from 1000W to 4000W. The laser is standardly equipped with a nesting program, which makes working with the laser faster and also minimizes material loss. Fiber laser DESIGNED and ASSEMBLED in POLAND. We configure lasers according to individual customer needs.
The LDC-6L extraction system is an advanced solution ensuring protection and efficiency in the laser processing process. Thanks to automatic filter cleaning, 99.9% filtration efficiency, efficient fan, and compact design, this system ensures operator safety, maintains the efficiency of laser systems and minimizes contamination. This is not only the effective removal of harmful substances from the air, but also care for the continuity of operation and durability of the equipment.
Extraction designed to extract smoke generated during the operation of the fiber laser L.
A modern, fully enclosed fiber laser for cutting metal sheets. The laser housing with protective glass provide full protection against the reflection of the laser beam, protecting the health of the operator and other people in the room. The replaceable work table allows you to significantly improve the efficiency and comfort of work. The offer includes a laser with a power from 1000W to 8000W, and the highest quality components ensure long and trouble-free use of the fiber laser.
A specialized fiber laser that can cut not only metal sheets but also pipes and profiles. High acceleration, high cutting accuracy, pipe turntable and the use of an exchangeable table make this laser cutter unrivaled in comparison to other fiber lasers. One machine, many possibilities. Save with our fiber laser.
Fiber laser DESIGNED AND MADE IN POLAND. We configure lasers according to individual customer needs.
Fiber laser for cutting large sheets of metal with dimensions of 6000x1500 mm. Thanks to its stable, solid structure and components from global manufacturers, it is ideal for industries where accuracy and quality of cutting are important. Fiber laser DESIGNED and ASSEMBLED in POLAND. We configure lasers according to individual customer needs.
The fastest Fiber Laser on the market that enables the cutting of metal sheets with great precision. The use of linear motors in all axes of the laser cutter guarantees many years of failure-free operation. These drives do not wear out and do not need lubrication. Check out the wide range of fiber laser configurations and select the parameters tailored to the requirements of your business.
Fiber laser with a 1500x4000 mm work table. The EP version is equipped with YASKAWA servomotors and nesting software. Fiber laser DESIGNED and ASSEMBLED in POLAND. We configure lasers according to individual customer needs.
A laser cutter with unparalleled cutting precision. The FIBER laser is equipped with HIWIN linear guides and TBI ball screws mounted on both sides of the laser cutter. The use of these components ensures excellent quality even at high laser cutting speeds. The laser housing complies with all safety standards, providing effective protection during the operation of the laser cutter.
The super fast large format fiber laser is ideally for use in industry. Due to a 20kW laser source, it is suitable for cutting boards with a thickness of up to 70 mm. The modern solutions used allow to significantly save time and increase the efficiency and effectiveness of work.
Open fiber laser with source power from 1000W to 4000W. The laser is standardly equipped with a nesting program, which makes working with the laser faster and also minimizes material loss. Fiber laser DESIGNED and ASSEMBLED in POLAND. We configure lasers according to individual customer needs.
A modern, fully enclosed fiber laser for cutting metal sheets. The laser housing with protective glass provide full protection against the reflection of the laser beam, protecting the health of the operator and other people in the room. The replaceable work table allows you to significantly improve the efficiency and comfort of work. The offer includes a laser with a power from 1000W to 8000W, and the highest quality components ensure long and trouble-free use of the fiber laser.
