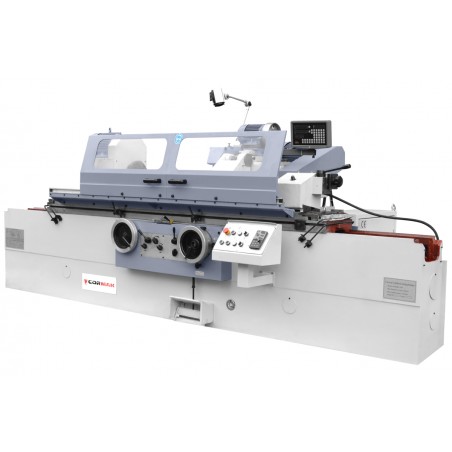

MW500 Cylindrical and Internal Grinding Machine
The internal grinders offered by us feature stable handling and quiet operation, due to the use of screw pumps in the hydraulic system. Additionally, the spindle of the grinding head provides high rotary accuracy and perfect stability.
Are you a member of the VIES group?
VAT included
€22,939.50
The lowest price of this product in the last 30 days before the discount was €22,343.07 gross
-
- Instructions in Polish
- Service
- Warranty 12/24 months
-
Delivery
Free
Equipment dependent on the model
- Flood coolant tank
- Grinding wheel dresser
- Grinding wheel
- Balancing mandrel
- 4 centres
- Limiting bumper
- Tools for grinding wheel dismounting
- Sealing ring
- Holder for grinding wheel balancing
- User manual
- EC declaration of conformity
- Head for internal grinding
- 3-jaw chuck
- Internal grinding nozzle
Additional equipment
- Open rest
- Closed rest
- 4-jaw chuck
- Grinding wheel with a flange
- Diamond grinding wheel dresser
Technical data
|
Grinding area |
Ø200x500 mm |
|
Diameter for shafts with a rest |
5-60 mm |
|
Diameter for shafts without a rest |
5-200 mm |
|
Diameter for internal grinding |
25-100 mm |
|
Maximum weight of the workpiece |
100 kg |
|
Maximum external machining length |
500 mm |
|
Maximum internal machining length |
100 mm |
|
Axes height |
135 mm |
|
Rotary centre taper |
MK4 |
|
Tailstock taper |
MK4 |
|
Minimum feed |
0.0025 mm |
|
Tailstock quill travel |
30 mm |
|
Headstock spindle speed |
25-380 rpm |
|
3-jaw chuck diameter |
165 mm |
|
Grinding wheel dimensions |
Ø400x50xØ203 mm |
|
Maximum width of the grinding wheel |
50 mm |
|
Grinding wheel peripheral speed |
35 m/s |
|
Maximum grinding wheel speed |
1670 rpm |
|
Maximum transverse travel |
205 mm |
|
Transverse travel each turn |
Coarse 2 mm, fine 0.5 mm |
|
Transverse travel pitch |
Coarse 0.01 mm, fine 0.0025 mm |
|
Grinding wheel wear compensation each turn |
Coarse 0.01 mm, fine 0.0025 mm |
|
Rapid feed |
50 mm |
|
Grinding wheel head tilt |
+10° |
|
Internal grinding wheel diameter |
Maximum 30x25x10 mm, Minimum 17x20x6 mm |
|
Internal grinding wheel speed |
1000 rpm |
|
Maximum table tilt |
Right -3°, left -9°, 8° |
|
Coolant pump efficiency |
25 L/min |
|
Shafts grinding wheel motor |
4 kW - 1500 rpm |
|
Rotary head motor |
1.1 kW - 1500 rpm |
|
Internal grinding wheel motor |
1.1 kW - 3000 rpm |
|
Hydraulic power supply motor |
1.1 kW - 1500 rpm |
|
Coolant pump |
0.125 kW - 3000 rpm |
|
Weight |
3000 kg |
|
Dimensions |
2040x1800x1650 mm |
Manufacturer: Cormak
