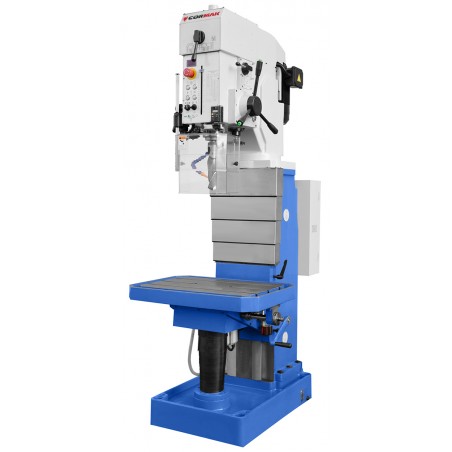

Z5050 Column Drilling Machine
A perfect choice for low quantity manufacturing.
Are you a member of the VIES group?
VAT included
€6,749.75
The lowest price of this product in the last 30 days before the discount was €6,574.26 gross
-
- Instructions in Polish
- Service
- Warranty 12/24 months
-
Delivery
Free
Machine features
- New, elegant design and compact construction
- Broad range of speed adjustment
- Simple and intuitive operation
- 180o worktable
- Drilling machine equipped with a cooling system
- Powerful spindle motor, designed in compliance with EC regulations
Technical data
|
Maximum drilling diameter |
50 mm |
|
Tapping (steel, cast iron) |
M22, M24 |
|
Distance from spindle to column surface |
360 mm |
|
Distance from spindle to worktable |
80–800 mm |
|
Maximum distance from spindle to base |
1325 mm |
|
Spindle extension |
200 mm |
|
Table swivel angle |
+/- 45° |
|
Spindle taper |
MK4 |
|
Number of gears |
18 |
|
Spindle speed |
55, 80, 95, 120, 145, 160, 180, 240, 270, 335, 400, 440, 500, 660, 750, 965, 1125, 1450 rpm |
|
Number of spindle feeds |
4 levels |
|
Spindle feeds |
0.1; 0.2; 0.3; 0.4 mm/turn |
|
Column diameter |
ø190 |
|
Table dimensions |
580×580 mm |
|
Base dimensions |
860×580 mm |
|
T-slots width |
2–18 mm |
|
Motor |
2.2/3 kW 400V |
|
Flood coolant pump |
75 W |
|
Total dimensions |
1050×590×2150 mm |
|
Weight |
760 / 860 kg |
Default equipment
- 1–13 mm drill chuck
- 3 Morse reducing sleeves
- Lighting
- Cooling system
Manufacturer: Cormak
CORMAK JERZY ZALEWSKI
street Brzeska 120, 08-110 Siedlce, Poland
