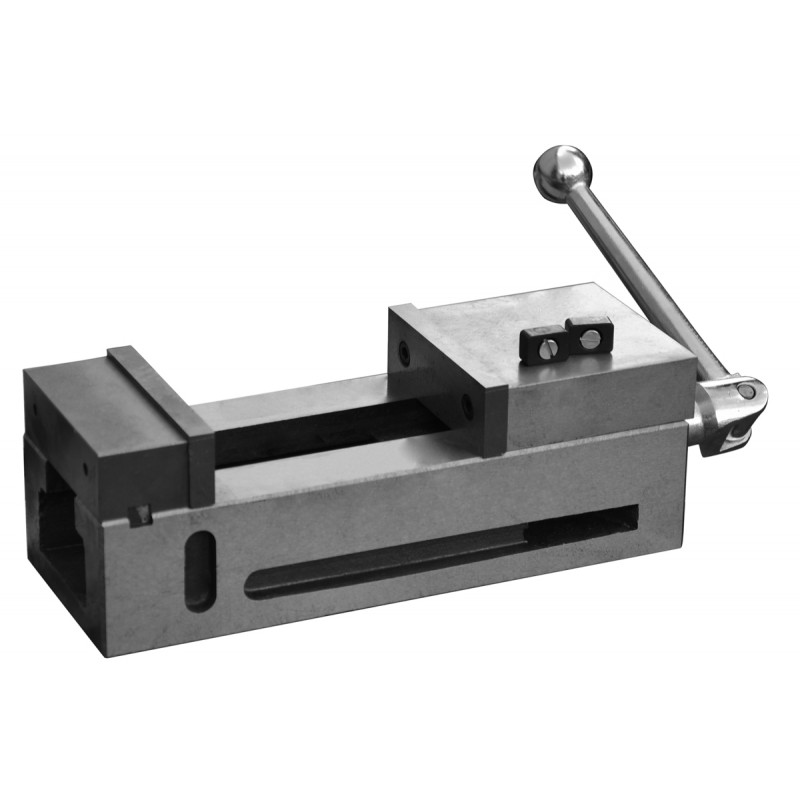

100 mm Precision Machine Vice

Precision vices feature high clamping rigidity and long-term reliability. Vices from this series allow for changing the position of jaw inserts, making it possible to increase the area of clamping.

Have questions? Call us!

+48 25 631 00 27 ext.105

export@cormak.pl

Are you a member of the VIES group?

Yes - show prices with VAT 0%

VAT included

€129.75

The lowest price of this product in the last 30 days before the discount was €126.38 gross

Instructions in Polish
Service
Warranty 12/24 months
Delivery
Free

Features and applications

Base made of durable cast iron
Possibility of changing jaw inserts for increased work area
Movable jaw design provides additional clamping of the workpiece to the base
Repositionable jaw inserts, can be placed on both sides of the jaws
Possibility of using a number of vices at once
Used with milling machines, boring machines, CNC machines

Technical data

Jaw height	100 mm
Jaw width	32 mm
Maximum L₁ jaw opening	100 mm
Maximum L₂ jaw opening	150 mm
Maximum L₃ jaw opening	215 mm
Maximum L₄ jaw opening	265 mm
Transverse bar width	14 mm
Longitudinal bar width	14 mm
Hexagonal head of the drive shaft	14 mm
Dimensions	305×100×86 mm

Manufacturer: Cormak

CORMAK JERZY ZALEWSKI
street Brzeska 120, 08-110 Siedlce, Poland
