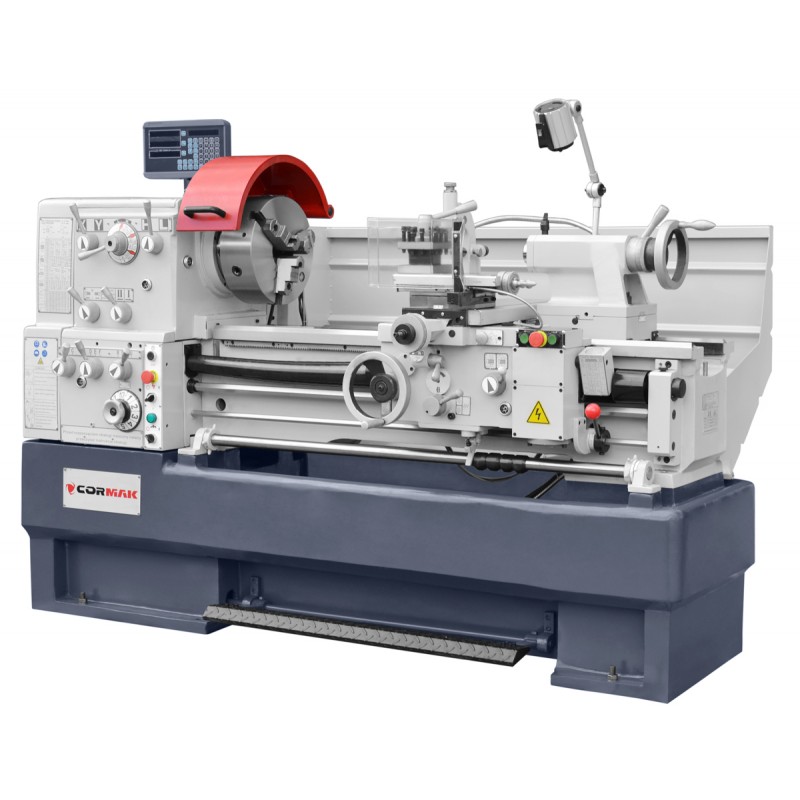

460x1000 Universal Lathe
This lathe can be used for many tasks such as internal and external surfaces turning, tapers turning, buffing, modular and DP threading, drilling and internal broaching.
VAT included
€14,712.81
The price has not changed
-
-
Instrukcja
po polsku - Serwis
-
Gwarancja
12/24
miesięcy -
Dostawa
Gratis
Machine features
- This series lathes can be used for many tasks such as internal and external surfaces turning, tapers turning, polishing, modular and DP threading, drilling and internal broaching
- By default equipped with a 3 axes digital readout
- Modern and precise spindle bearings
- 80 mm large spindle bore
- Heavy bed made of cast iron, ground and inductively hardened
- Gear wheels strengthened through hardening and precise grinding
- Removable bridge allows for greater machining capabilities
- Protection guards compliant with the newest regulations
- Equipped with a foot mechanical brake
- Possibility of equipping the lathe with a ruler for turning tapers
Technical data
|
Swing over bed |
460 mm |
|
Swing over cross slide |
270 mm |
|
Swing over gap bridge |
690 mm |
|
Turning length in gap bridge |
165 mm |
|
Centres distance |
1000 mm |
|
Bed |
inductively hardened |
|
Bed width |
300 mm |
|
Spindle bore diameter |
80 mm |
|
Spindle tip |
D1-8 |
|
Spindle mount |
MK7 |
|
Spindle speed |
(12) 25–1700 rpm |
|
Maximum tool dimensions |
25×25 mm |
|
Longitudinal feed range |
(42) 0.031–1.7 mm/turn |
|
Transverse feed range |
(42) 0.014 – 0.784 mm/turn |
|
Metric thread |
(41) 0.1–14 mm |
|
Inch thread |
(60) 2–112 T.P.I. |
|
Modular thread |
0.1–7 M.P (34) |
|
D.P. thread |
4–112 D.P. (50) |
|
Tailstock quill diameter |
60 mm |
|
Tailstock quill extension |
130 mm |
|
Tailstock quill tip |
MK4 |
|
Digital readout |
in 3 axes |
|
Main motor power |
5.5 kW |
|
Flood coolant pump power |
0.1 kW |
|
Dimensions |
2200×650×1310 mm |
|
Net weight |
1655 kg |
Default equipment
- 3 axes digital readout
- 3-jaw self-centering lathe chuck
- Steady rest
- Follow rest
- Spindle reducing sleeve
- Foot safety brake
- Chips guard
- Cooling system
- 24V halogen lighting
- Dead centres
- Lubricator
- Change gears
- 6 anti-vibration mounts
- EC declaration of conformity
- User manual
- Factory new machine under full warranty
