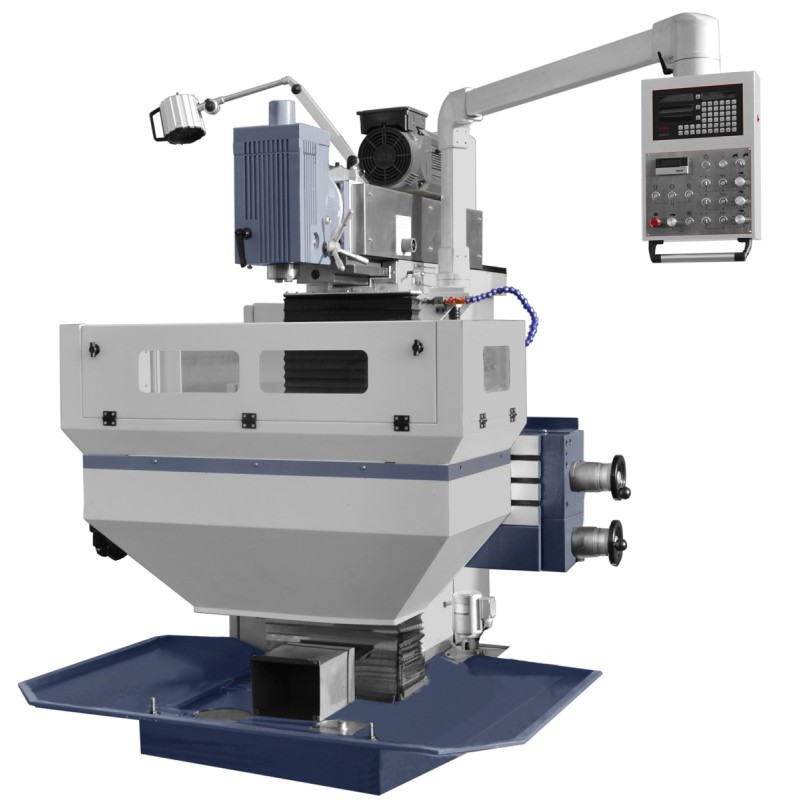

XL8145 Tool Milling Machine
CORMAK XL8145 tool milling machine is intended for tool shops and facilities manufacturing complex, high quality elements. Milling design allows for machining large workpieces.
Are you a member of the VIES group?
VAT included
€30,719.25
The lowest price of this product in the last 30 days before the discount was €29,920.55 gross
-
- Instructions in Polish
- Service
- Warranty 12/24 months
-
Delivery
Free
Machine description
Using appropriate set of tools this milling machine is capable of:
- slotting,
- drilling, reaming,
- boring using boring heads,
- threading in many planes,
- incising,
- cutting,
- milling,
- internal grinding,
Technical data
| Horizontal table dimensions | 850 mm x 450 mm |
| T-slots number in horizontal work table | 7 |
| T-slots width in horizontal work table | 14 mm |
| T-slots distance in horizontal work table | 63 mm |
| Vertical table dimensions | 1190 x 250 mm |
| T-slots number in vertical work table | 3 |
| T-slots width in vertical work table | 14 mm |
| T-slots distance in vertical work table | 63 mm |
| Travel in X-axis | 600 mm |
| Travel in Y-axis | 450 mm |
| Travel in Z-axis | 450 mm |
| Spindle taper | ISO40 |
| Spindle speed | 40 - 2000 rpm/min |
| Feed in X-axis (stepless) | 10 - 1000 mm/min |
| Feed in Y-axis (stepless) | 10 - 1000 mm/min |
| Feed in Z-axis (stepless) | 10 - 1000 mm/min |
| Speed feed (X/Y/Z) | 1200 mm/min |
| Distance from spindle center to table surface | 75 - 525 mm |
| Distance from horizontal spindle axis to table surface | 170 - 620 mm |
| Distance from spindle axis to column | 175 - 625 mm |
| Main motor power | 5,5 kW |
| Weight | 1750 kg |
| Machine dimensions | 1600 x 1800 x 2000 mm |
Available equipment
- Arbor with frames 4-16 mm
- Rest for horizontal spindle
- Anti-vibration feet
- Screw for spindle
- Arbor for horizontal spindle - 4 types
- Reduction sleeves MK1, MK2, MK3
Manufacturer: Cormak
CORMAK JERZY ZALEWSKI
street Brzeska 120, 08-110 Siedlce, Poland
