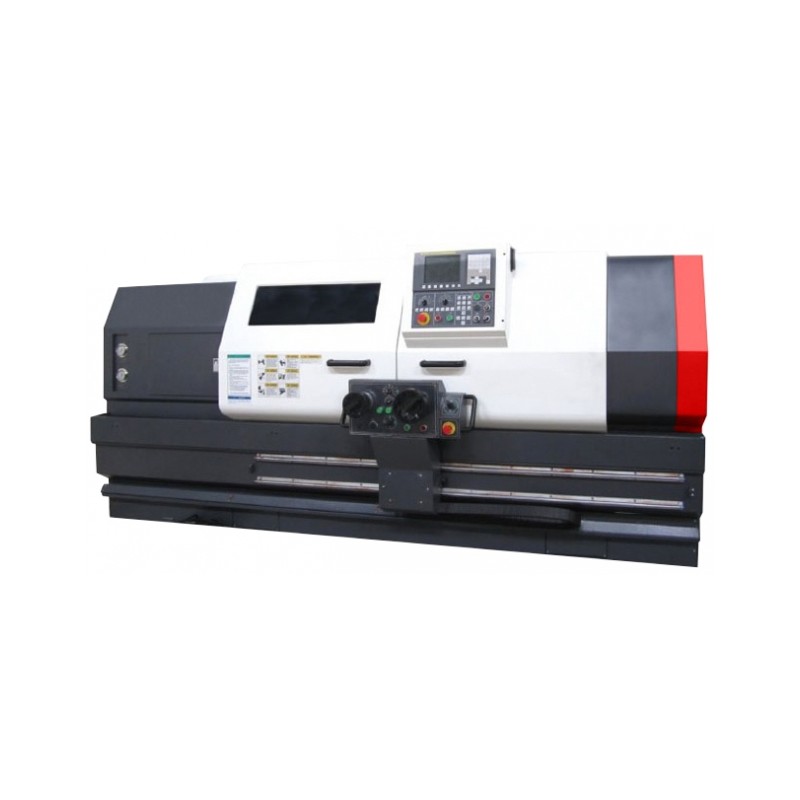

500x1500 CNC Lathe

Machine characteristics

• Semi-automatic transition achieved by defining individual cycles: taper turning, threading
• SINUMERIK 808D entry-level CNC control system
• Manual feed of X/Z axes via 2 electronic knobs
• Interface of cycles adapted to the user for easy programming of parts — broad programming possibilities, from setting turning cycles to full programming of parts
• Inductively tempered guides
• A dynamic main spindle drive thanks to actuators
• 200 mm serial clamping chuck with regulated force
• The machine requires low maintenance due to the intelligent central lubrication unit
• Longitudinal and cross feed with high quality lead screws
• 6-times turret gun — increases the automation degree and efficiency, while decreasing the time needed for complex elements

Technical data

Available equipment

• SINUMERIK 808D control system in Polish and English
• manual turning control panel
• Teach-In function
• SIEMENS servomotors
• 3-jaw manual chuck
• 6-position turret head
• soft jaw kit
• manual tailstock
• cooling system
• automatic gear and guide lubrication system
• 24V halogen lighting
• Polish and English manuals
• EC declaration

Optional equipment

• SINUMERIK 828, Fanuc, GSK control systems
• follow rest
• steady rest
• tool probe
• shavings transporter
• additional soft jaws
• hard jaws
• sleeve chucks
• gripper for workpieces
• bar feeder
• separator of fumes from within the cabin
• separator of used oil from the coolant
• toolh olders
• CAD/CAM software
