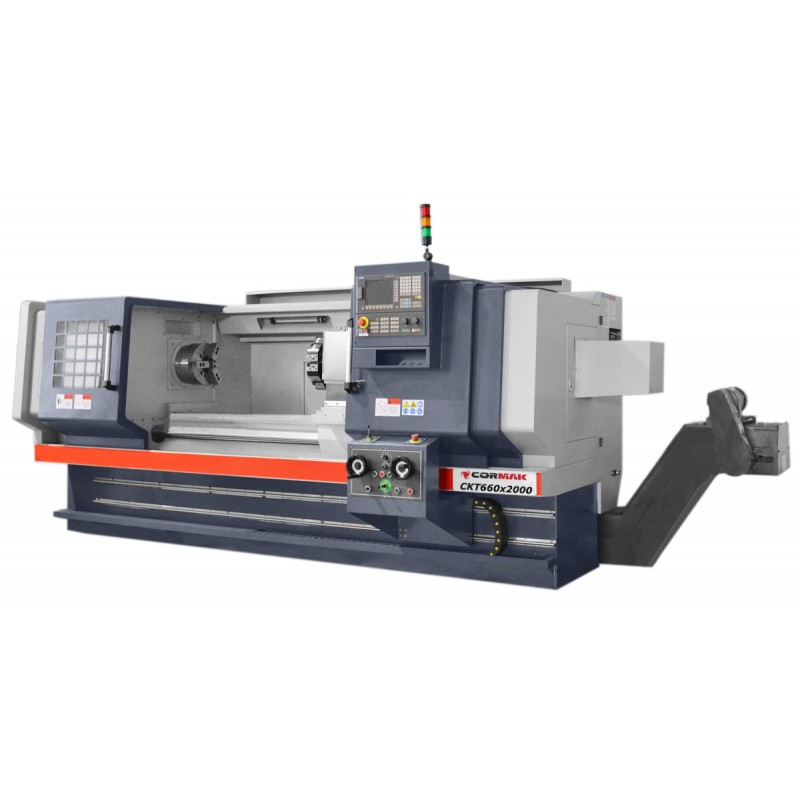

660x2000 CNC Lathe
This lathe saves the actions of its operator and automatically converts them into G-code. Afterwards, the operator can press the playback button in order to achieve an identical copy of the workpiece. Manual feed of the X/Z axes via 2 electronic knobs allows for a similar to conventional-lathe turning.
Are you a member of the VIES group?
-
- Instructions in Polish
- Service
- Warranty 12/24 months
-
Delivery
Free
Machine characteristics
- SERVO main motor
- Manual feed of X/Z axes via 2 electronic knobs
- Semi-automatic transition achieved by defining individual cycles: taper turning, threading
- Interface of cycles adapted to the user for easy programming of parts — broad programming possibilities, from setting turning cycles to full programming of parts
- Inductively tempered guides
- A dynamic main spindle drive thanks to actuators
- 200 mm serial clamping chuck with regulated force
- The machine requires low maintenance due to the intelligent central lubrication unit.
- Longitudinal and cross feed with high quality lead screws
- 6-times turret gun — increases the automation degree and efficiency, while decreasing the time needed for complex elements
Technical data
| Maximum turning length |
2000 mm |
| Swing over bed |
660 mm |
| Swing over cross slide |
340 mm |
| Spindle taper |
A2–8 |
| Spindle bore |
82 mm |
| Spindle speed |
30–1600 obr/min |
| X-axis maximum travel |
380 mm |
| X/Z axes quick feed speed |
6/8 m/min |
| Tailstock quill diameter |
75 mm |
| Maximum tailstock quill travel |
150 mm |
| Tailstock quill taper |
MT5 |
| Motor power |
11 kW |
| Weight |
5200 kg |
| Dimensions |
4580×1750×1850 mm |
Manufacturer: Cormak
CORMAK JERZY ZALEWSKI
street Brzeska 120, 08-110 Siedlce, Poland
