ZX7550ZB Drilling and Milling Machine
Universal milling machine of solid construction, equipped with 2 spindles – horizontal and vertical with autofeed – powered by two independent motors of 2.2 and 1.5 kW. Autofed X and Y axes simplify handling.
Variant
XZ6350ZB Drilling and Milling Machine
ZX7550CW Drilling and Milling Machine
Are you a member of the VIES group?
VAT included
€8,172.50
The lowest price of this product in the last 30 days before the discount was €8,172.50 gross
-
- Instructions in Polish
- Service
- Warranty 12/24 months
-
Delivery
190,00 PLN
Machine description
- AUTOMATIC ELECTRIC FEED OF THE TABLE IN Y-AXIS
- AUTOMATIC MECHANICAL FEED TABLE IN X AXIS
- AUTOMATIC SPINDLE FEED
- HEAVY STABLE IRON CASTING VERY PRECISELY MADE
- MASSIVE CROSS TABLE WITH PRECISE SURFACE
- SWALLOW TAIL GUIDES IN ALL 3 AXES
- SILENT RUNNING THANKS TO GRINDED GEARS
- LEFT AND RIGHT ROTATION
- TURN HEAD +/- 90 °
Specifications
| Max. drilling diameter | 50 mm |
| Max. horizontal milling length | 100 mm |
| Max. vertical milling diameter | 25 mm |
| Max. threading diameter | M16 |
| Max. boring diameter | 120 mm |
| Spindle taper | ISO 40 |
| Number of spindle speeds | 8.9 |
| Spindle speed range 50Hz (rpm) |
115-1750 (140-2100) Pawn 60-1350 (72-1620) Level |
| Distance between spindle and column surface | 200-700 mm |
| Distance between spindle and table | 100-480 mm |
| Distance between spindle axis and table | 0-380 mm |
| Spindle travel | 120 mm |
| Table size | 1000x240 mm |
| Table travel | 600x230 mm |
| Table feed | 24-720 mm / min (8 speed) |
| Spindle feed | 0.015; 0.08; 0.25 mm / rev |
| Engine (R / H) | 1.5 kW / 1.5 kW |
| Overall dimensions | 1120x1060x2035 mm |
| Weight | 970 kg |
Scope of delivery
- Digital readout for 3 axes SINO
- ISO 40 Morsea reduction sleeves
- Drill chuck B16
- CE Declaration of Conformity
- Machine vice L - 160 mm
- Spindle moulder with set. collets for end mills
- Support for the horizontal spindle / eyepiece /
- Long cutter arbors.
- Basic tools
- 24V halogen lighting system
- Cooling system
- DTR-ka in English / li & gt;
Optional equipment
- swivel vices
- tilting vices
- precision vices
- indexing tables
- divisors
- threading heads
- milling heads
- end mills (HSS, HSSE, HSS-PM, VHM)
- drills cylindrical shank
- drills on a cone
- milling inserts
- manual and machine taps
- set of fasteners
- tool holders (collets, Weldon)
- driving pins
- chucks
Manufacturer: Cormak
CORMAK JERZY ZALEWSKI
street Brzeska 120, 08-110 Siedlce, Poland
Related categories
Are you interested in this product?
Contact with us
phone: +48 501 944 934
export@cormak.pl
phone: +48 609 939 400
export@cormak.pl
phone: +48 609 939 051
export@cormak.pl
phone: +48 609 939 741
export@cormak.pl
You might also like
100 mm Inclined Swivel Machine Vice
Vice is made of high-quality cast iron. Due to its precise guiding, this vice is used in industries where precision is key. Swivel base allows for 360 o adjustment in the horizontal plane, and 90 o adjustment in the vertical plane. Jaw inserts made of tool steel, hardened (55+- 3HRC) and ...More
125 mm Inclined Swivel Machine Vice
Vice is made of high-quality cast iron. Due to its precise guiding, this vice is used in industries where precision is key. Swivel base allows for 360 o adjustment in the horizontal plane, and 90 o adjustment in the vertical plane. Jaw inserts made of tool steel, hardened (55+- 3HRC) and ...More
160 mm Inclined Swivel Machine Vice
Vice is made of high-quality cast iron. Due to its precise guiding, this vice is used in industries where precision is key. Swivel base allows for 360 o adjustment in the horizontal plane, and 90 o adjustment in the vertical plane. Jaw inserts made of tool steel, hardened (55+- 3HRC) and ...More
Reviews
Idealna maszyna do precyzyjnej pracy
Frezarka działa na najwyższym poziomie, bardzo precyzyjna w obróbce detali.
Solidność i wydajność
Bardzo solidna frezarka, działa bezawaryjnie. Jestem bardzo zadowolony z jej pracy.
Niezawodna i funkcjonalna
Znakomita frezarka do wielozadaniowej obróbki. Działa bez problemów i ma wysoką precyzję.
Precyzyjna i niezawodna
Frezarka działa świetnie, bardzo precyzyjna, polecam ją do wymagających zadań.
Świetna do warsztatu
Doskonała frezarko-wiertarka do użytku w warsztacie, sprawdza się w każdym zadaniu.
Bardzo solidna i stabilna maszyna
Frezarka działa bezawaryjnie. Jestem bardzo zadowolony z jakości i stabilności pracy.
Idealna do obróbki metali
Bardzo precyzyjna i solidna frezarka, świetnie sprawdza się w obróbce różnych materiałów.
Wydajna i niezawodna
Wydajna maszyna, doskonała do codziennej pracy w warsztacie. Zdecydowanie polecam.
Doskonała do precyzyjnej obróbki
Frezarka CORMAK ZX 7550 ZB to narzędzie, które sprawdza się w bardzo precyzyjnej obróbce.
16 other products in the same category:
CORMAK ZX40BPC milling and drilling machine
CORMAK ZX 40BPC is a robust metal drilling and milling machine. The possibility of rotation of the head +/- 90 degrees of the spindle, the possibility of rotation of the head +/- 90 degrees, automatic feed spindle, clockwise and counterclockwise rotation, a large table, liquid cooling, in the ...More
- Reduced price
MFM320 Multifunctional Milling Machine
MFM320 universal milling machine with 3 axes swivel head. The machine has broad capabilities, capable of low and high quantity manufacturing. It also provides smooth spindle speed adjustment, tempered guides and central guide lubrication system. Machine available straight away. ...More
ZX7045E Milling and Drilling Machine

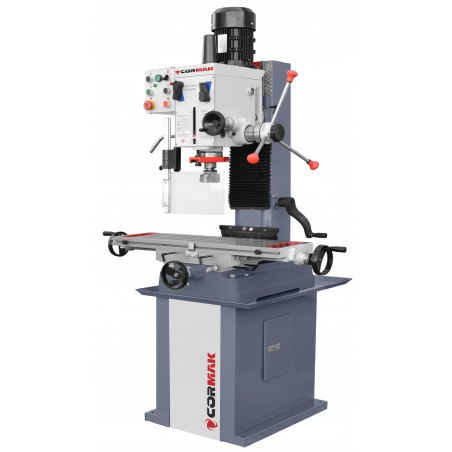

The ZX 7045E milling and drilling machine is a versatile tool for steel processing. Perfect for drilling, reaming, boring, threading, milling and face milling. The machine allows precise drilling of holes in cast iron with a diameter of up to 45/40 mm. Additionally, you can thread screws up to ...More
