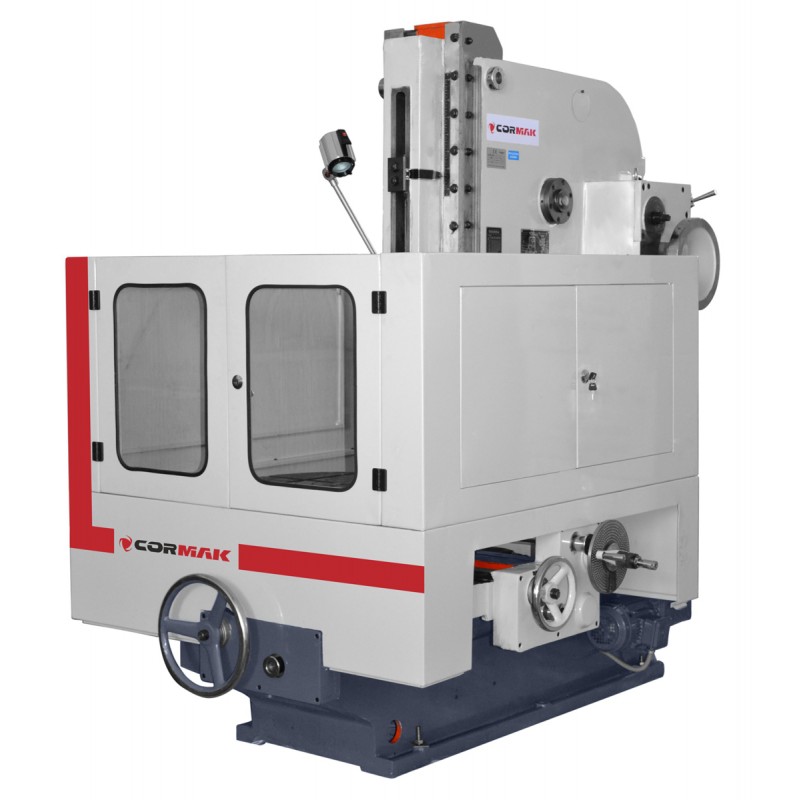

200 Mechanical Slotting Machine
A machine for various internal and external surfaces working, especially splinways. It secures a broad use in repair plants and toolmaker’s shops, in piece and small lot production.
Are you a member of the VIES group?
-
- Instructions in Polish
- Service
- Warranty 12/24 months
-
Delivery
Free
- Solid, massive construction.
- High working accuracy.
- Vertical and horizontal feed mechanisms.
- Work table rotation mechanisms.
- Multiple-plate clutch.
- Accelerated feeds in all axes.
- Possibility of chiselling at angle.
- Halogen lighting installation: 24 V.
Standard equipment
- Halogen lighting installation: 24 V.
- TOD in Polish language.
- EC Declaration of Conformity.
Technical data
| Maximal slider stroke (mm) | 200 |
| Number of strokes per minute | 32 / 50 / 80 / 125 |
| Slider angle of inclination (°) | 0 - 8 |
| Work table diameter (mm) | 460 |
| Value of slider vertical control (mm) | 200 |
| Cutter holder distance from column (mm) | 480 |
| Table surface distance from slider body (mm) | 320 |
| Maximal work table longitudinal travelling (mm) | 420 |
| Maximal work table transverse travelling (mm) | 420 |
| Maximal work table angle of rotation (°) | 360 |
| Range of longitudinal and transverse feed values (mm) | 0,054 - 1,24 |
| Range of rotary feed values (°) | 0,035 - 0,805 |
| Maximal tool dimensions (mm) | 25 x 40 |
| Maximal work table load (kg) | 400 |
| Maximal chiselling force (kN) | 5 |
| T-slot width in work table (mm) | 18 |
| Accelerated feed motor power (kW) | 0,7 |
| Main motor power (kW) | 3 |
| Overall dimensions (length x width x height) (mm) | 1717 x 1221 x 1885 |
| Weight (kg) | 2200 |
Manufacturer: Cormak
CORMAK JERZY ZALEWSKI
street Brzeska 120, 08-110 Siedlce, Poland
