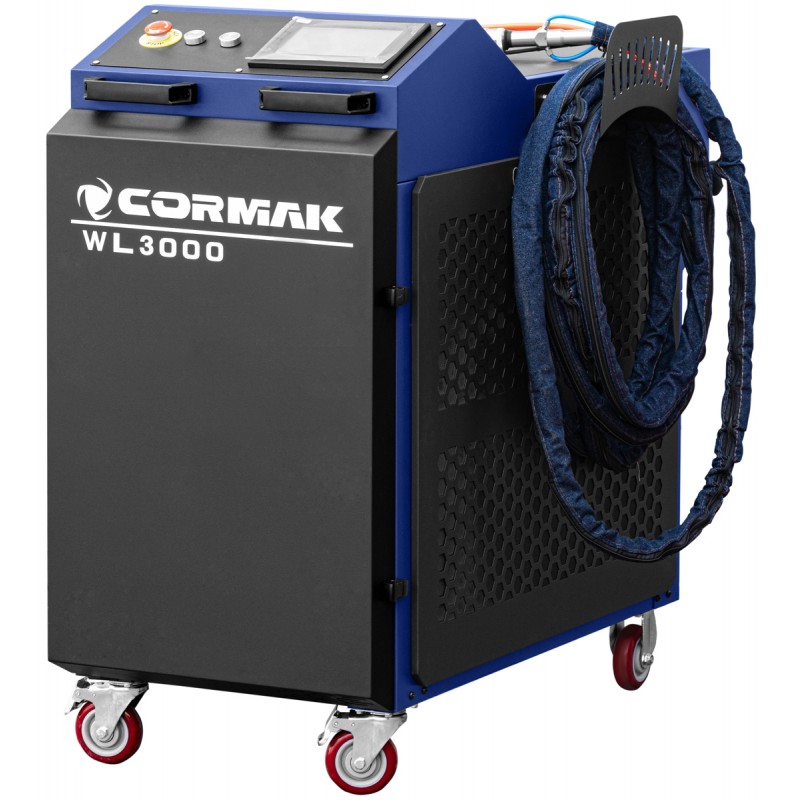

CORMAK WL3000 laser welding machine

Advantages of a laser welding machine

• Easy to use - thanks to the solutions used and well-thought-out design, the operator can start working after a short training course
• Low indirect radiation, just wear protective glasses to filter strong light when working,
• Much faster welding than traditional methods, productivity can increase up to 3 to 10 times
• Concentrated beam: slight change in structure due to small heat impact area,
• Weld repeatability, weld seam is nice, welds are high strength.
• You can weld very thin materials such as 0.5mm stainless steel.
• Wire or no-wire options.

Technical parameters

THE LATEST GENERATION WELDING HEAD

• WOBBLE head;
• Auto wire feeder included;
• Adjustable stain size ki 0-5mm;
• High power welding head allows for multiple beam path types: ○,―,•,ꓷ,0,▲,8 ;
• Integrated connections for shielding gases and cooling system,
• Interchangeable nozzles allow you to weld at different angles,
• 10 m of optical fiber that connects the head to the source,
• Adjustment of welding parameters directly in the head without having to approach the control panel;
• Full ergonomics - thanks to the light and flexible design, the head can weld even in hard-to-reach places;
• Easy to service - quick and easy replacement of the protective lens.

Auto wire feeder included

The wire feed system is synchronized with the welding machine software. The task of the feeder is to feed the filling, thanks to which the operator can focus 100% on working with the head.

WELDING MODES

The selection of the appropriate welding mode allows you to obtain optimal results. The welding mode should be selected depending on the type and thickness of the welded material.

Set includes

• laser welding machine with built-in cooling system
• welding gun with adjustable focus and a set of accessories
• Fiber laser source
• automatic wire feeder
• set of cables
• starter kit of nozzles and protective glasses
