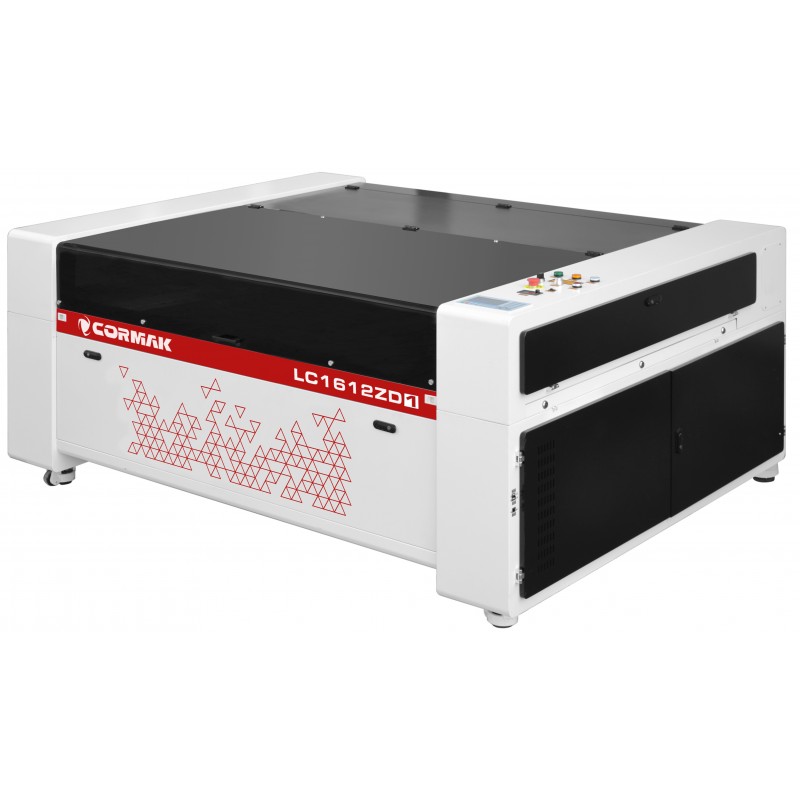

LC 1612ZD1 laser engraving plotter

Perfect for engraving, marking, cutting from single to large series.

The working area of the Laser LC 1612ZD1 Laser Plotter is 1600x1200 mm.

The price of the laser plotter includes: red point, electrically lowered platform up to 300 mm, honeycomb overlay and scissor table, lower exhaust gas extraction with waste drawer, integrated compressor, fan, cooling.

The advantage of the engraving machine is the "pass-through table", which allows the processing of materials of any length, 1600 mm wide and 100 mm high, or any width and length 1200 mm.

Have questions? Call us!

+48 25 631 00 27 ext.130

export@cormak.pl

Are you a member of the VIES group?

Yes - show prices with VAT 0%

VAT included

€11,725.00

The lowest price of this product in the last 30 days before the discount was €11,420.15 gross

There are not enough products in stock

I agree to the terms and conditions and the privacy policy

Instructions in Polish
Service
Warranty 12/24 months
Delivery
Free

CO2 ULTRAFAST LASERS

The latest series of high-speed cutting and engraving lasers. It saves you time and increases your competitiveness.

Fast Ultrafast series lasers are a guarantee of your success!

Up to 200% faster compared to standard models available on the market
The innovative drive system guarantees much higher precision, especially in the case of small, complex details
Only we have selected top-quality components from the best, proven manufacturers
Guaranteed original RECI tubes

LASER CUTTING PROCESS

Laser cutting is a modern and widely used material processing technique. The cutting tool in this technique is a laser beam with high energy density that cuts through the material.

The course of the laser cutting process

The laser cutting process is based on the phenomenon of the impact of the laser beam at its focal point, where its power is the highest, causing rapid melting, evaporation, ablation and heating of the cut material to the ignition temperature. The place where the beam falls on the material is washed by rapidly flowing gas, which, flowing in the axis of incidence of the beam, removes the molten material.

LASER TYPE	CO₂
MAXIMUM LASER POWER	160W (optionally: 80W, 90W, 130W, 180W)
MAXIMUM WORKING AREA	1600 mm x any / any x 1200 mm
POSITIONING ACCURACY	±0,01 mm
MECHANICAL RESOLUTION	0,0254 mm
MAXIMUM POWER CONSUMPTION	1000 W
WORKING TEMPERATURE	15 – 45 ℃
Operating systems	Windows 95, 98, 2000, XP, Vista, 7, 8, 10 (32/64 bit)
Input file formats	PLT, AI, DST, DXF, BMP
Compatible software	CorelDraw AutoCAD Photoshop
Drive type	stepper motors
Communication	USB
Tube cooling	radiator CW5200
Material cooling	air
Dimensions	2250 x 1790 x 1030 mm
Weight	500 kg

The set includes a professional liquid cooler

It has a cooling agent, thanks to which, when the liquid reaches the alarm temperature, the built-in unit quickly cools the cooling system of the laser tube.

Characteristics of the LASER-1612Z set

A "honeycomb" table is indispensable when cutting materials, its task is to remove smoke.
A scissor table ideal for cutting materials such as: plexiglass, aspet, etc.
The lower extractor serves as exhaust gas extraction.
Waste drawer
The electrically lowered table from the program and machine position allows it to be lowered to 300 mm, enabling engraving on tall objects.
"Red point", its task is to precisely display the location of the laser beam - necessary for positioning.
An integrated compressor activated only for work, used to protect the lens from dirt and cool the material being cut.
Laser head with a power of 160W (option: 80W, 90W, 130W, 180W).
Professional cooler.
USB communication also allows you to connect the machine to a portable computer, such as a notebook, via the USB port. Additionally, the machine has an LCD display from which you can, among others, adjust the table height.
The USB input in the machine and built-in memory allows you to copy files with operating parameters directly to the device without using a computer.
512MB USB memory for transferring files

U.S. II-VI optical lenses

American optics from American Photonics. Proven 14% transmission improvement compared to other optical systems. High-strength mirrors and aspherical focusing lenses made by II-VI, USA.

High sharpness, high transmittance. The lenses can not only ensure the quality of the device, but also make the optical system work for a long time with high efficiency and low cost.
