800,00 PLN

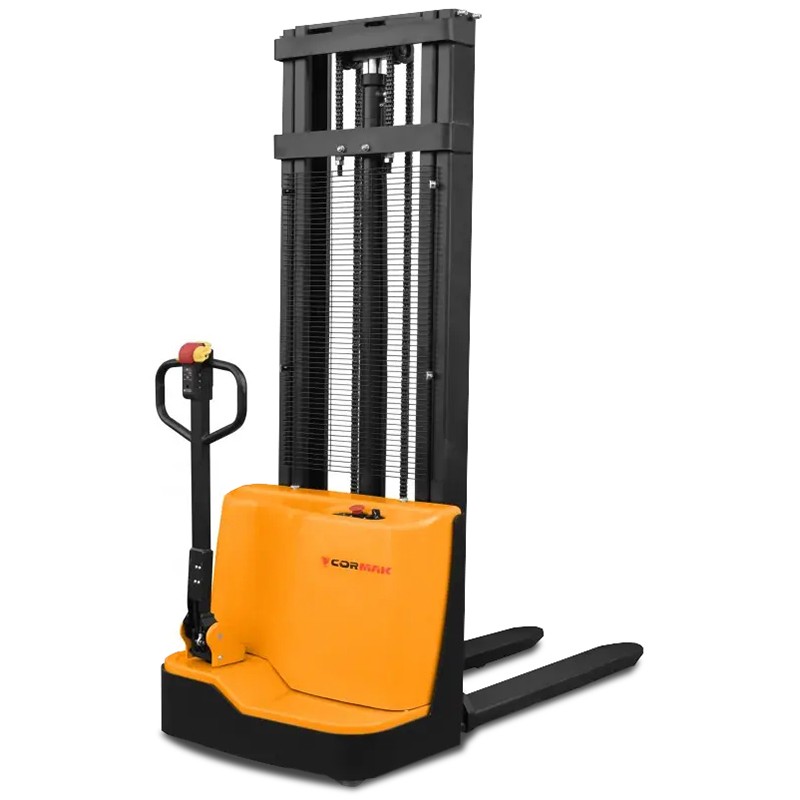

- A solid structure made of high-quality steel provides greater rigidity and stability during lifting.
- Safety switch.
- Built-in controller to protect the battery from discharging or damaging
- Sealed maintenance-free AGM battery
- Built-in charger
- LED battery charge indicator and "abdominal" safety switch to prevent hitting the operator
- Speed controller for safe driving and speed limits
- Turtle Ride Mode
- Electric lifting and lowering under full operator control
Technical parameters
| MAX HEIGHT OF LIFT |
3300 mm |
| CAPACITY |
1000 kg |
| FORK LENGTH |
1145 mm |
| HEIGHT WITH FORKS LOWERED |
2230 mm |
| HEIGHT OF THE RAISED MAST |
3840 mm |
| FORK DIMENSIONS |
54x140x1145 mm |
| FORK SPREAD |
550 mm |
| TOTAL WIDTH |
800 mm |
| TOTAL LENGTH |
1800 mm |
| CLEARANCE |
30 mm |
| TURNING RADIUS |
1390 mm |
| TRAVEL SPEED WITH LOAD / WITHOUT LOAD |
3.5 / 4.0 km/h |
| LIFT SPEED WITH LOAD / NO LOAD |
0.1 / 0.2 m / s |
| LOWERING SPEED WITH LOAD / NO LOAD |
92 / 85 m/s |
| HILL CAPACITY WITH A LOAD / WITHOUT A LOAD |
5/7 % |
| SERVICE BRAKE TYPE |
electromagnetic |
| DRIVE POWER |
0.65 kW |
| LIFTING MOTOR POWER |
2 kW |
| VOLTAGE / CAPACITY OF THE BATTERY |
12V 85Ah 2 pcs |
| WEIGHT |
550 kg |
Polyurethane wheels and rollers
These type of rollers are universal for all types of surfaces. They are characterized by high abrasion resistance and increased resistance to mechanical damage. They guarantee quiet operation and low rolling resistance.
Manufacturer: Cormak
CORMAK JERZY ZALEWSKI
street Brzeska 120, 08-110 Siedlce, Poland
