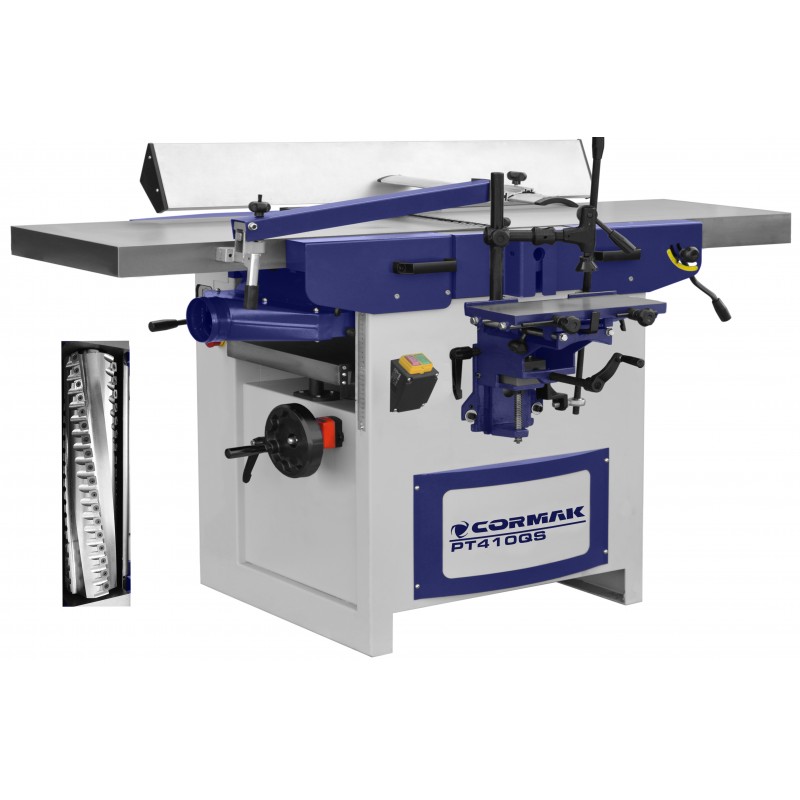

PT410QS Planer and Thicknesser + Spiral Shaft
The PT410QS planer and thicknesser consists of cast iron tables and presents perfect quality of our workmanship. Ideal for precise planing of boards, strips and beams. The version with such parameters will fully satisfy even the most demanding customers.
Variant
CORMAK PT260QS planer-thicknesser with spiral shaft
Are you a member of the VIES group?
VAT included
€4,560.00
The lowest price of this product in the last 30 days before the discount was €4,560.00 gross
Shipping time:
7 working days after receipt of payment
-
- Instructions in Polish
- Service
- Warranty 12/24 months
-
Delivery
150,00 PLN
- The transition from the planer function to the thicknesser is very quick and easy. It consists in unblocking the eccentrics, lifting the tables and relocating the chip extraction cover.
- The crop thickness adjustment knob is located on the right side of the machine
- Aluminum pendulum ruler with a scale allowing for its precise setting at an angle in the range of 90-45 0
- The centrally located thicknessing table on the column has a knob to adjust the setting up and down
- The planing height is measured with a scale bar
Standard equipment:
- cast iron planer tables
- spiral shaft
- head cover
- exit to haul off
- feed switch
- emergency switch
Optional equipment:
- trolley for transporting the machine
- knife setter
- drilling and chiselling attachment
Technical parameters
| Planer table dimension | 1680 x 410 mm |
| Thickness table dimension | 750 x 410 mm |
| Diameter of the cutting device | 95 mm |
| Spindle speed | 4300 rpm |
| Slide angle | 0-45 ° |
| Sawdust discharge | 100 mm |
| Maximum thickness of the thicknesser | 220 mm |
| Engine power | 3 kW / 400V |
| Max. detail width | 410 mm |
| Dimensions | 1680 x 1100 x 1100 mm |
| Weight | 416 kg |
Manufacturer: Cormak
CORMAK JERZY ZALEWSKI
street Brzeska 120, 08-110 Siedlce, Poland
Related categories
Are you interested in this product?
Contact with us
phone: +48 501 944 934
export@cormak.pl
phone: +48 609 939 400
export@cormak.pl
phone: +48 609 939 051
export@cormak.pl
phone: +48 609 939 741
export@cormak.pl
Reviews
Najlepszy wybór!
System odciągu wiórów działa skutecznie i utrzymuje porządek.
Najlepszy wybór!
Obsługa bardzo intuicyjna, nawet dla początkujących.
Bardzo solidne urządzenie
Maszyna przyszła dobrze zapakowana, gotowa do pracy po krótkim montażu.
Szlifuje jak marzenie
Każdy element urządzenia wygląda na trwały i solidny.
Doskonała do warsztatu
Sztywna rama i precyzyjne prowadnice robią robotę.
Doskonała do warsztatu
Zdecydowanie poprawiła jakość mojej produkcji stolarskiej.
Świetna jakość za rozsądną cenę
Nie spodziewałem się tak dobrego stosunku ceny do jakości.
Super do codziennej pracy
Wytrzymała konstrukcja daje poczucie pracy z profesjonalnym sprzętem.
Najlepszy wybór!
Wytrzymała konstrukcja daje poczucie pracy z profesjonalnym sprzętem.
Świetna jakość za rozsądną cenę
Zdecydowanie poprawiła jakość mojej produkcji stolarskiej.
Świetna jakość za rozsądną cenę
Każdy element urządzenia wygląda na trwały i solidny.
Szlifuje jak marzenie
Wymiana noży była szybka i bezproblemowa.
Super do codziennej pracy
Silnik bardzo mocny, daje radę nawet przy twardszym drewnie.
Mega precyzyjna
Każdy element urządzenia wygląda na trwały i solidny.
Mega precyzyjna
Maszyna spełnia moje oczekiwania w 100%, idealna do domowego warsztatu.
Najlepszy wybór!
Wymiana noży była szybka i bezproblemowa.
Najlepszy wybór!
Maszyna przyszła dobrze zapakowana, gotowa do pracy po krótkim montażu.
Super do codziennej pracy
System odciągu wiórów działa skutecznie i utrzymuje porządek.
7 other products in the same category:
PT260S Planer and Thicknesser + Spiral Shaft
The Cormak PT260S planer is characterized by a durable construction, which gives a lot of possibilities of adjusting and processing hard and soft wood in a mechanical way. Changing from a planer to a thicknesser takes a few seconds. Machine weight (175 kg) ensures safe and vibration-free ...More
- Reduced price
CORMAK PT310S planer-thicknesser with spiral shaft
The PT310S planer-thicknesser is cast iron tables and perfect quality. Thanks to the quality of workmanship, it is ideal for precise planing of boards, strips and beams. The version with such parameters will completely satisfy even the most demanding customers. The PT310S is a machine that ...More

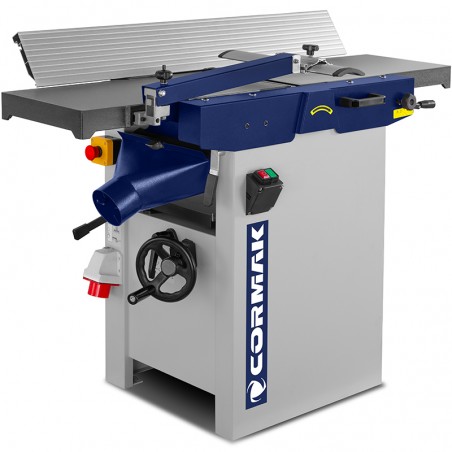

Thickness and surface planer CORMAK PT310ECO with spiral cutter block
