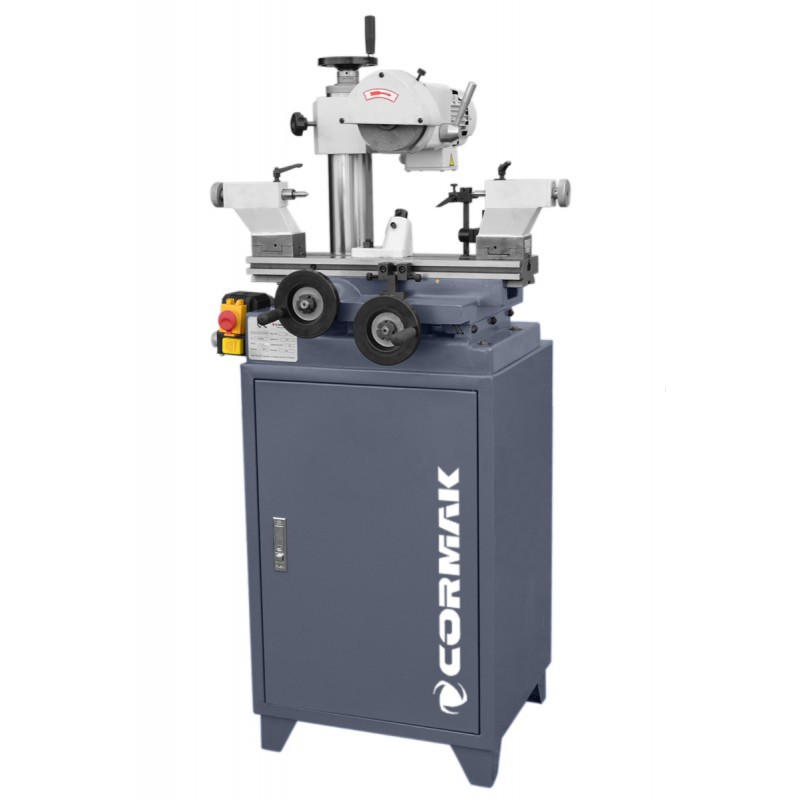

TS-125 Tools Sharpening-Grinding Machine
The machine is intended for sharpening various tools: drills, milling cutters, cutters, disks and many others. The base is by default equipped with a very convenient shelf for tools. Stable construction secures comfortable and precise operation without vibration. Ergonomically arranged switching and operating elements. Equipped with a component for sharpening and grinding elements in 3 axes as well as with a number of other elements that simplify its handling.
Variant
DG13M Drill Bits Sharpener-Grinder
DG13MD Drill Bits Sharpener-Grinder
DG20 Drill Bits Sharpener-Grinder
CORMAK DG32MD Drill Bits Sharpening-Grinding Machine
U3 Universal Tool Grinding Machine
Are you a member of the VIES group?
VAT included
€3,249.75
The lowest price of this product in the last 30 days before the discount was €3,165.26 gross
-
- Instructions in Polish
- Service
- Warranty 12/24 months
-
Delivery
Free
Machine features
- Tools grinding machine of universal use for drill bits, milling cutters, turning tools grinding
- Very durable vibration-absorbing structure, providing superb grinding results
- By default lower part of the machine with a cabinet for tools
- Big handwheels ensure easy and precise setting and feeding
- +/-45o vertically and +/-50o horizontally rotated grinding wheel
- Driving unit with 3-jaw chuck (80 mm DM) in standard version enabling cylindrical surfaces grinding
- Max. grinding diameters 125 mm, max. grinding length 320 mm
- Possibility of 5–32 mm spiral drill bits sharpening
Technical data
|
Maximum workpiece diameter |
175 mm |
|
Centre width |
320 mm |
|
Table size |
535×130 mm |
|
Longitudinal table travel |
320 mm |
|
Transverse table travel |
170 mm |
|
Vertically tilting grinding head |
-40° to +40° |
|
Horizontally tilting grinding head |
-50° to +50° |
|
Grinding head speed |
2800 rpm |
|
Actual motor power |
0.18 kW |
|
Weight |
266 kg |
Default equipment
- Base
- Tailstock – 2 pcs
- Limiter
- Adjustable table limiters
- 2×60o standard centre
- 2×60o semi-centre
- 1 125×45×32 mm rim wheel
- 1 125×32×32 mm diamond rim wheel
- 1 125×25×32 mm grinding wheel
- 1 grinding disc
- Driving unit with 3-jaw, 80 mm diameter chuck
- Spiral drill bits sharpening device
- Lathe tool fixture
- Arbors for clamping 16, 22, 32 mm milling cutters
- Diamond dresser
- Handling tools
Manufacturer: Cormak
CORMAK JERZY ZALEWSKI
street Brzeska 120, 08-110 Siedlce, Poland
