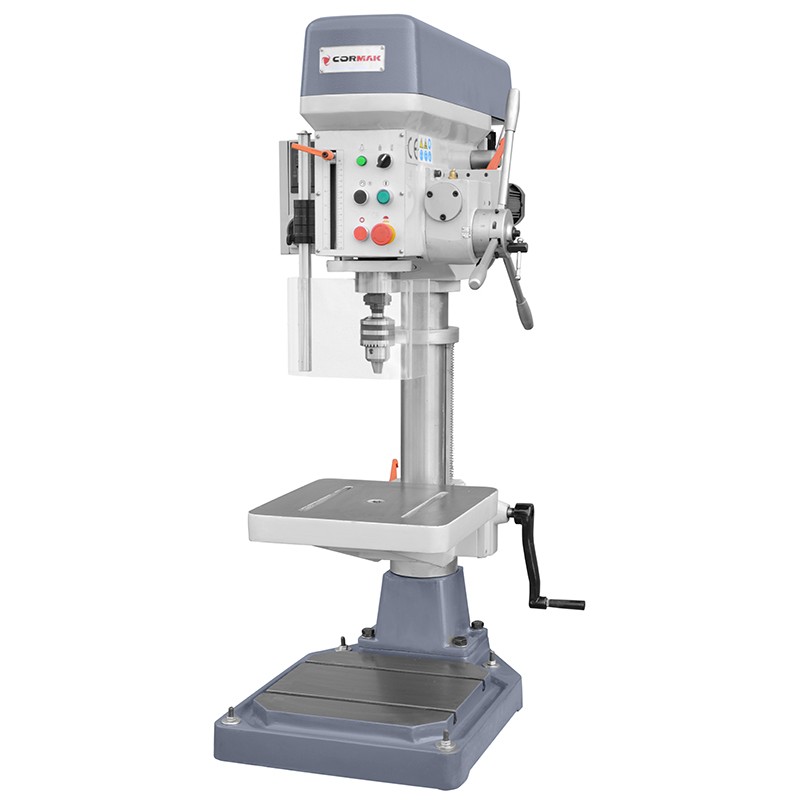

WS20B Bench Drilling Machine with Autofeed
CORMAK WS 20B, equipped with autofeed, is a general-purpose bench drilling machine of strengthened structure, for such operations as drilling, reaming, deepening, tapping (with the use of special chucks for tapping tools). These drilling machines allow for drilling and tapping with multi-spindle holders. Featuring high efficiency, accuracy of operation, an LED light, a low noise level, a broad range of speeds and a centralized control panel, this machine is easy and simple to handle.
Are you a member of the VIES group?
VAT included
€1,574.75
The lowest price of this product in the last 30 days before the discount was €1,533.81 gross
-
- Instructions in Polish
- Service
- Warranty 12/24 months
-
Delivery
Free
Machine features
- SPINDLE AUTOFEED
- High spindle rigidity
- Tapping done through automatic left rotation switching
- Left rotation switch
- Headstock, column, table and column base made of the highest quality castings
- Spindle and gearbox shafts made of hardened and heat-treated steel
- High motor power
- Large spindle stroke
- Intuitive control panel
- U-type spindle guard with a limiting switch, compliant with EC
- Manually raised, 360° swiveling worktable with mounting grooves
- Belt transmission guard equipped with limiting safety switch
- EC certificate
- Adjustable drill chuck with a key and Morse taper mount
- Wedge for taper removal
Technical data
|
Maximum steel drilling diameter |
20 mm |
|
Maximum steel tapping diameter |
M16 |
|
Column diameter |
85 mm |
|
Spindle stroke |
135 mm |
|
Distance spindle-column |
260 mm |
|
Maximum distance spindle-table |
366 mm |
|
Maximum distance spindle-base |
678 mm |
|
Spindle mount |
MK2 |
|
Speed range |
280–1875 rpm |
|
Number of speed ranges |
5 |
|
Table dimensions |
300×320 mm |
|
Base dimensions |
376×566 mm |
|
Machine height |
1245 mm |
|
Motor power |
1.1 kW |
|
Power supply |
400V |
|
Net weight |
179 kg |
|
Dimensions |
800×450×1250 mm |
Optional equipment
- Cooling system
Manufacturer: Cormak
