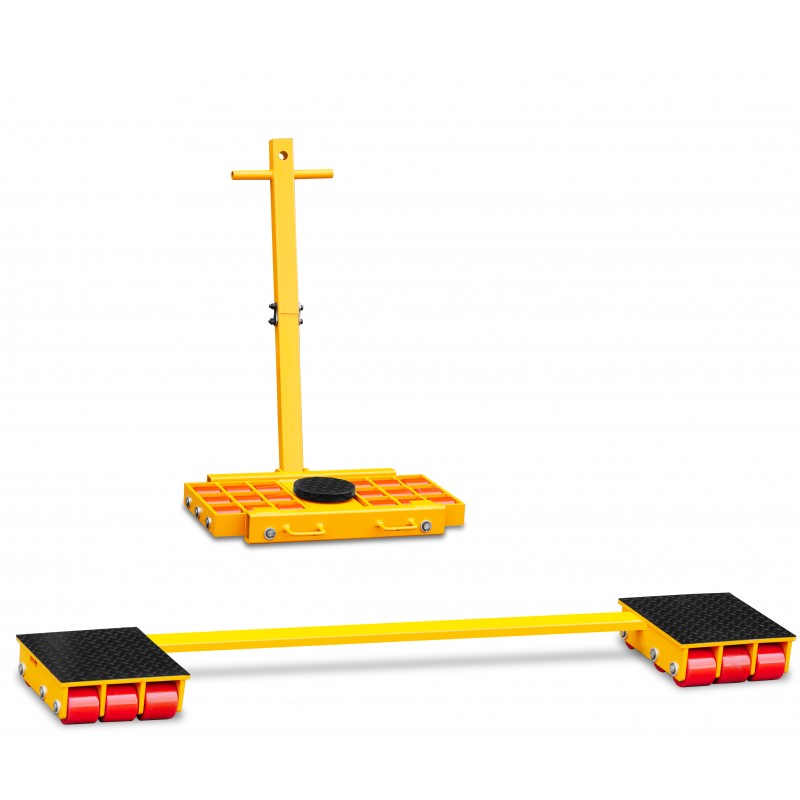

A set of transport rollers consisting of a WL18 running platform and a WF18 transport chassis. The maximum lifting capacity of the set is 36 tons.
Transport rollers make it easy and safe to transport heavy items.
Thanks to the use of polyurethane tread rollers, the transported machine and floor are not damaged.
|
Technical parameters WL18 | |
|---|---|
|
ROLLERS SIZE |
85x85 mm |
|
NUMBER OF ROLLERS |
16 |
|
LOADING CAPACITY |
18000 kg |
|
LOADING HEIGHT |
110 mm |
|
BEARING SURFACE ON ELEMENT |
Ø170 mm |
|
SUPPORT POINTS |
1 |
|
LENGHT OF SHAFT |
1080 mm |
|
TURNING ANGLE OF SHAFT |
± 90o |
|
DIMENSIONS |
1030x620 mm |
|
WEIGHT |
137 kg |
|
Technical parameters WF12 | |
|
ROLLERS SIZE |
85x85 mm |
|
NUMBER OF ROLLERS |
16 |
|
LOADING CAPACITY |
18000 kg |
|
LOADING HEIGHT |
110 mm |
|
BEARING SURFACE ON ELEMENT |
200x407 mm |
|
SUPPORT POINTS |
2 |
|
CONNECTOR LENGHT |
1430 mm |
|
WIDTH OF SPACING ROLLERS |
1014 - 1430 mm |
|
WEIGHT |
50 kg |
