CM250 Multifunctional Machine Tool 230V

Reduced price

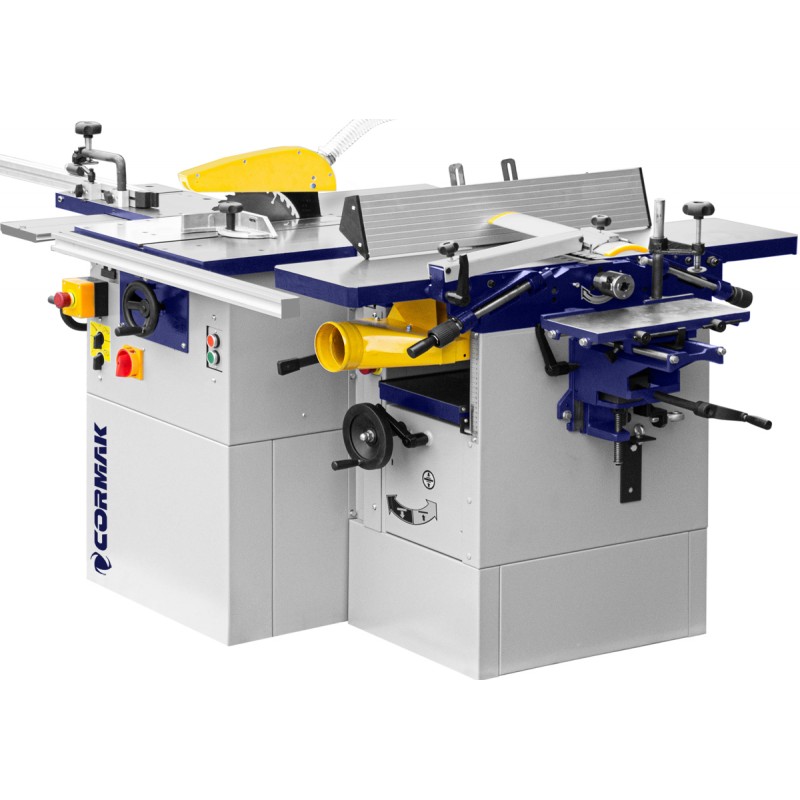

A multifunctional machine for woodworking constituting a perfect integration of a planing machine, a circular sawing machine, a milling machine and a thicknesser, providing a broad range of possibilities. Including 3 motors in a robust, solid and compact construction secures comfort and failure-free work.

Variant

CM250 Multifunctional Machine Tool

Have questions? Call us!

+48 25 631 00 27 ext.105

export@cormak.pl

Are you a member of the VIES group?

Yes - show prices with VAT 0%

VAT included

~~€3,049.75~~

€2,599.75

The lowest price of this product in the last 30 days before the discount was €3,049.75 gross

access_time Shipping time: 7 working days after receipt of payment

Instructions in Polish
Service
Warranty 12/24 months
Delivery
150,00 PLN

Circular saw with a tilt spindle providing cutting high density boards, MDF boards, ABS and PVC panels, solid wood and other wood-based materials.

Planer-thicknesser Three knives at a speed of 4000 rpm ensure achieving very smooth surfaces, with adjustable strip providing angular planing. Worktables can be dismantled while using the thicknesser.

Milling machine Extended 30 mm spindle rotates at a speed of 6500 rpm. A mechanism supporting the workpiece is installed in the upper guard side.

Default equipment

30 mm spindle
215×30 disc
Tilting disc in the range of 90 ° - 45 °
Expanding worktable
Side and upper clamp of the workpiece
Precise milling limiter setting

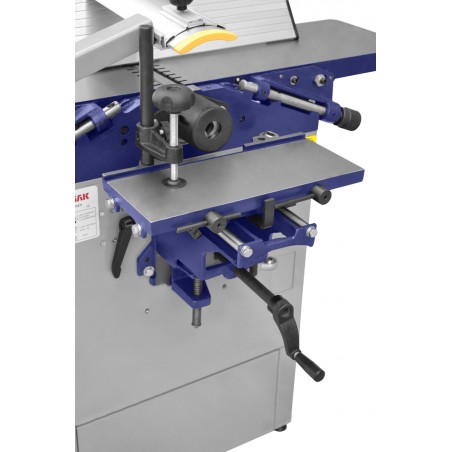

Attachment for arc milling
Angular limiter
User manual
EC declaration

Technical data

Circular sawing machine/dimension saw
Table dimensions	940×410 mm
Maximum saw dimension	254×30 mm
S1 continuous work motor power	1.5 kW/2,1kW
Planing machine/thicknessing machine
Planing width	250 mm
Thicknesser max.	250×160 mm
Motor power	2,2/3,1 kW
Milling machine
Spindle diameter	30 mm
Maximum mill diameter	150 mm
Speed	6500 rpm
Motor power	1,5 / 2,1 kW
General data
Power supply	230V
Machine dimensions	1100x1250x850 mm
Weight	320 kg
