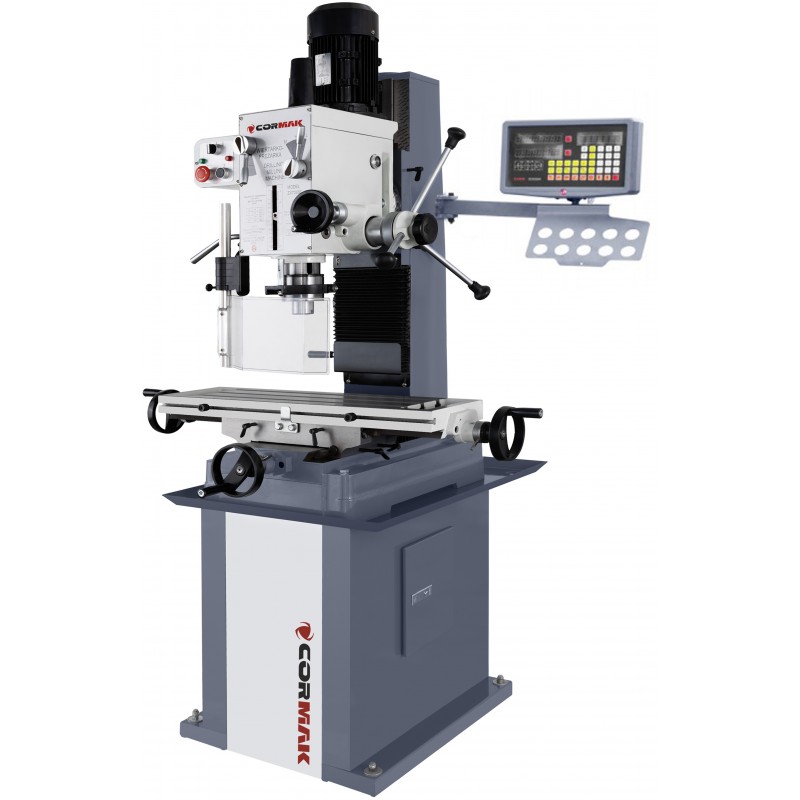

ZX7045E Milling and Drilling Machine

Reduced price

The ZX 7045E milling and drilling machine is a versatile tool for steel processing. Perfect for drilling, reaming, boring, threading, milling and face milling. The machine allows precise drilling of holes in cast iron with a diameter of up to 45/40 mm. Additionally, you can thread screws up to M12 mm, mill up to a width of 80 mm and make notches up to 22 mm deep. The ZX 7045E milling and drilling machine is a reliable tool ready for work!

Variant

ZX7045B1 Milling and Drilling Machine

ZX7055 DRO Milling and Drilling Machine

ZX7045B1 DRO Milling and Drilling Machine

ZX 7045 BXL DRO milling and drilling machine

ZX7045 Drilling and Milling Machine

ZX7045 Drilling and Milling Machine 230V

CORMAK ZX40BPC milling and drilling machine

ZX7045E Milling and Drilling Machine

Have questions? Call us!

+48 25 631 00 27 ext.105

export@cormak.pl

Are you a member of the VIES group?

Yes - show prices with VAT 0%

VAT included

~~€2,769.75~~

€2,519.75

The lowest price of this product in the last 30 days before the discount was €2,454.24 gross

Instructions in Polish
Service
Warranty 12/24 months
Delivery
100,00 PLN

Machine characteristics

Heavy Stable Cast Iron: Solid construction based on heavy cast iron guarantees the stability and durability of the machine even during intensive use.
Milling Machine Height Adjustable on the Support: Unique height adjustment on the support, not on the column, allows you to adapt the machine to a variety of applications.

Massive Cross Table for Milling/Drilling Machine: A table of impressive dimensions with a precisely ground surface provides a solid base for a variety of projects.
Dovetail Guides: Innovative dovetail guides guarantee smooth movements in three axes, which translates into excellent machining results.

Quiet Operation Thanks to Ground Gears: Ground gears make the machine run quietly, which increases the comfort of work in the workshop.
Left and Right Rotation: Rotate the tool in both directions to suit different tasks.

+/- 90 degrees swivel head and adjustable head height: Flexibility in setting the angles and height adjustment allow for full control over the processing of materials.

Additional Options, Additional Benefits: The ZX 7045E version is immediately available in stock, and you will also receive a free set:

Chuck
MK4/MK3 reducing sleeve
MK3/MK2 reducing sleeve

The ZX 7045E milling and drilling machine is not just a tool, it is a partner that will meet even the most demanding challenges in your workshop. Order now and experience excellent precision and performance!

(Base available optional)

Technical data

Maximum drilling diameter	45mm
Maximum diameter of the face mill	80mm
Maximum diameter of a cylindrical cutter	28mm
Maximum thread diameter	12mm
Spindle quill extension	100mm
Spindle taper	MT4
Spindle speed (6 speeds for 1400 rpm motor) 1400r/min)	95, 170, 280, 540, 960, 1600rpm ^-1
Maximum distance of the spindle tip from the table	460mm
X / Y / Z axis movement	500 / 210 / 425 mm
Distance of the spindle from the column surface	245mm
Dimensions of the work table	730x210mm
Base dimensions	400x600mm
s1/s6 engine	1500W/2100W 400V
Machine dimensions (height with base)	1080 x 770 x 1460 mm
Weight	278 kg
