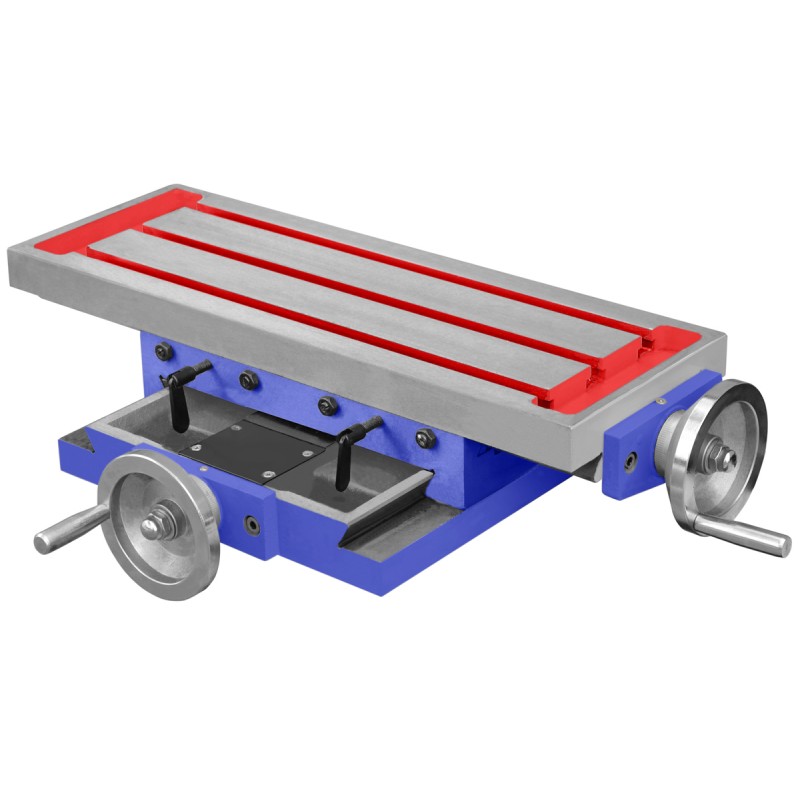

495x165 mm Cross Table

495x165 mm Cross Table -
  • 495x165 mm Cross Table -
  • 495x165 mm Cross Table -
  • 495x165 mm Cross Table -
  • 495x165 mm Cross Table -
  • 495x165 mm Cross Table -

Cross table with worktable surface made of precisely ground cast iron. Equipped with T-slots for workpiece fixture. Intended for precise machining, milling and drilling retaining high accuracy due to an accurate 0.02 mm vernier.

Have questions? Call us!

+48 25 631 00 27 ext.130

Are you a member of the VIES group?

VAT included
€329.75
The lowest price of this product in the last 30 days before the discount was €321.18 gross
There are not enough products in stock


  • CE
  • Instructions in Polish
  • Service
  • Warranty 12/24 months
  • Delivery
    Free

ZX7020 technical data

Base dimensions 260×280 mm
Table dimensions 495×165 mm
Transverse feed 100 mm
Longitudinal feed 210 mm
Vernier 0.02 mm
T-slot width 14 mm
T-slots number 3
Weight 36 kg

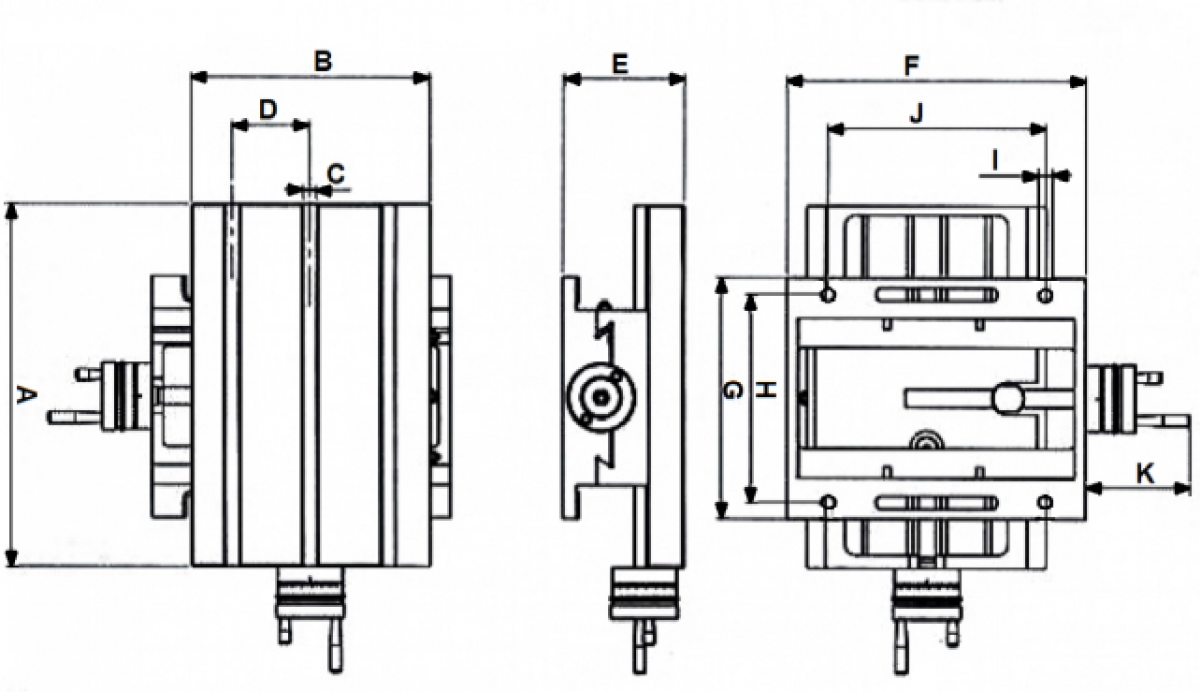

A [mm] 495
B [mm] 165
C [mm] 14
D [mm] 54
E [mm] 112
F [mm] 262
G [mm] 280
H [mm] 139
I [mm] Ø13
J [mm] 176
K [mm] 135
X-axis travel [mm] 230
Y-axis travel [mm] 110
Dimensions [mm] 630×400×130
Weight [kg] 36
Screw stroke [mm] 4

Manufacturer: Cormak
