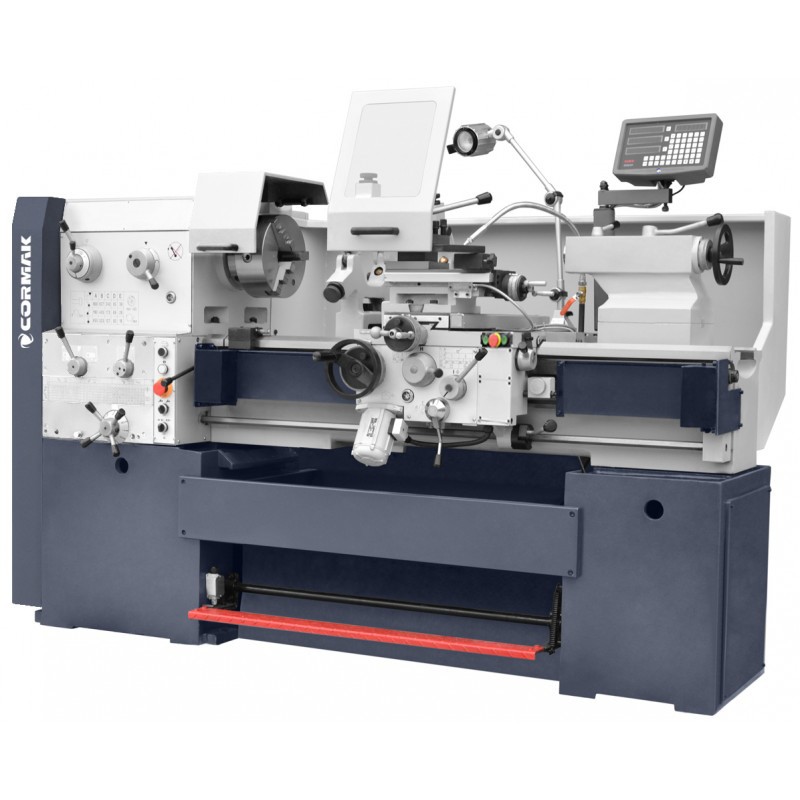

CORMAK universal lathe 500 x 1500 / 80

Main advantages:

• The CORMAK 500 x 1500/80  universal lathe (CJ6250C/1500) can be used for many tasks, such as turning internal and external surfaces, cones, polishing, metric, inch modular and DP threading, drilling and broaching.
• The rapid longitudinal and transverse feed system significantly reduces machining time and increases productivity.
• Combined cast iron bed (right and left base made of cast iron) ensuring maximum vibration reduction . Additionally,the bed guides are preciselyground and hardened.The appropriate bed widthof 325 mmensures stable and precise working conditions.
• The digital readout works in (3) three axes of movement: longitudinal, transverse, upper slide. The processed electronic signal from the optical rulers visualizes the obtained values ​​from movements along the axis on a digital screen.
• The lathe is equipped with a high-quality, reinforced spindle bearing system.
• Optimal work results are ensured by a large spindle bore of 80 mm , a 250 mm 3-jaw lathe chuck , and a powerful 5.5 kW engine.
• Hardened and ground gears in the spindle gear - ensures long-term operation stability.
• Equipped with a lead screw and a lead shaft for thread turning, automatic longitudinal and transverse feed.
• Easy adjustment of spindle speed and automatic feed from the ergonomic control panel on the gearbox.
• Possibility of machining a large range of threads without having to replace the shift wheels on the guitar. A wide range of turned threads: metric (66) 0.5-28 mm, inch (66) 1-56 TPI, modular (33) 0.5-3.5 MP, DP thread (33) 8-56 DP . Turning right and left threads.
• Thread turning clock designed for accurate counting of threads. The time-saving feature allows you to unscrew the lead screw nut in a few passes to quickly return the bottom bracket to its original position manually.
• The bed has a replaceable bridge for turning larger elements, e.g. a disc. This lathe model allows machining with a maximum diameter of 630 mm with the bridge removed.

Technical parameters:

Standard equipment:

• 3-axis digital reading (optical ruler)
• 3-jaw self-centering lathe chuck 250 mm (right and left hard jaws)
• 4-jaw lathe chuck, independent jaw setting 320 mm (right and left hard jaws)
• Front disc 435 mm
• Permanent rest
• Motion rest
• MK 5 fixed point (2 pcs.)
• MK7/MK5 spindle reduction sleeve
• Cooling system
• Work lighting
• Greaser
• Key for chuck and tool post
• Set of operating tools
• Safety covers compliant with CE standards
• User manual in Polish
• CE Declaration of Conformity

Optional equipment:

• PS125 attachment for grinding shafts and holes
• Emulsifying oil, machining coolant ES-12 1L
• cone rolling attachment
