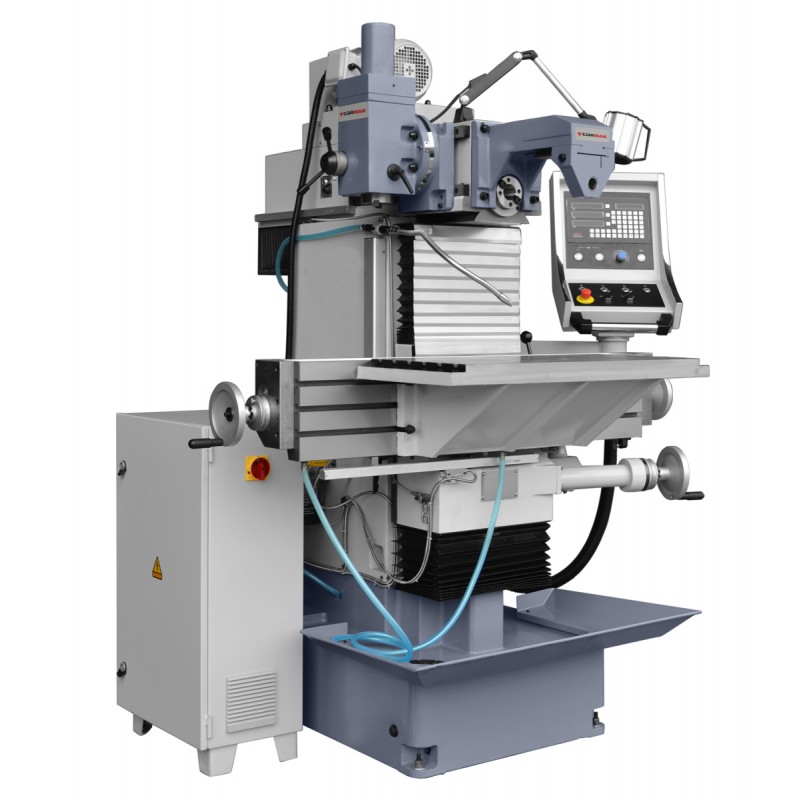

XN840 Tool Milling Machine
CORMAK tool milling machine is equipped with a vertical +/- 60° swivel milling head and a horizontal milling system. Machine intended for tool shops and facilities manufacturing complex, high quality elements. Although modest in dimensions, its design allows for machining large items.
Are you a member of the VIES group?
-
- Instructions in Polish
- Service
- Warranty 12/24 months
-
Delivery
Free
Machine features
-
solid and rigid design of the machine with wide, tempered flat guides in all axes
-
high accuracy due to lead screws in all axes
-
central lubrication system for all guides
-
easy handling, appreciated by users
-
worktable of large surface and load capacity
-
tilting milling head
-
smooth spindle speed adjustment
-
cooling system
Technical data
| Table dimensions | 800×400 mm |
| T-slots number | 6 |
| T-slots width | 14 mm |
| Vertical table dimensions | 1200×250 mm |
| Vertical table T-slots (number×width×distance) | 3×14×63 mm |
| Distance from table surface to column | 165 mm |
| Table load capacity | 200 kg |
| Spindle taper | ISO 40 |
| Distance from horizontal spindle to table | 180–580 mm |
| Distance from vertical spindle to table | 150–550 mm |
| Vertical milling head swivel | ±60° |
| Maximum distance from spindle center to column guide | 565 mm |
| Vertical and horizontal spindle speed | 40–2000 rpm (18 levels) |
| X/Y/Z feed speed | 5–500 mm/min |
| X/Y/Z rapid feed speed | 1200 mm/min |
| Feed motor power | 1.3 kW |
| Main motor power | 3 kW |
| Flood coolant motor power | 0.9 kW |
| Dimensions | 1740×1540×2012 mm |
| Weight | 2450 kg |
Manufacturer: Cormak
CORMAK JERZY ZALEWSKI
street Brzeska 120, 08-110 Siedlce, Poland
