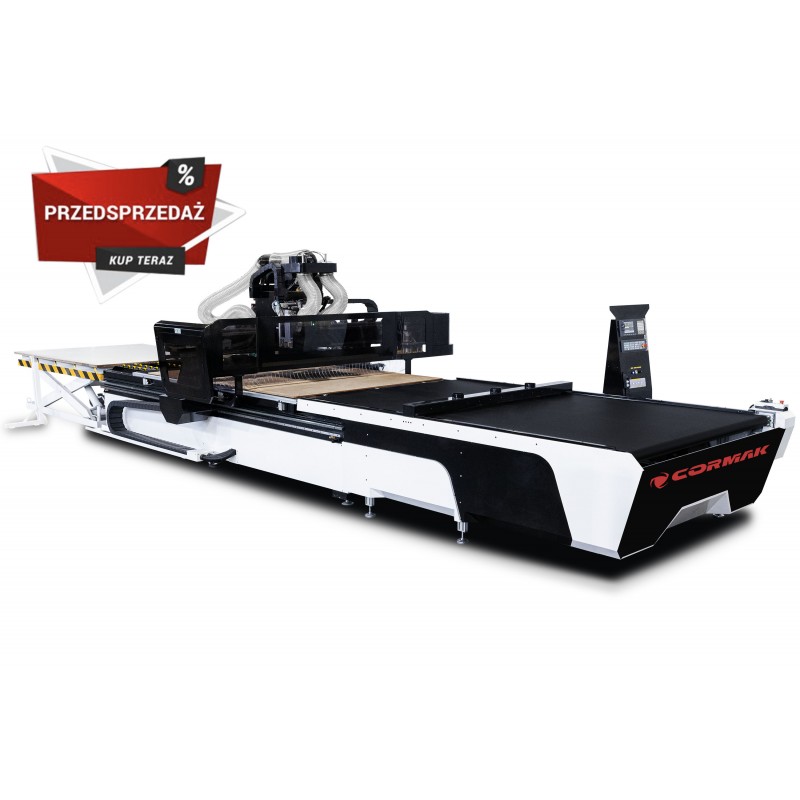

Machining center CNC milling machine Cormak NST2131129A LOADING/UNLOADING

Reduced price

The Cormak NST2131129A CNC milling center is a dynamic and precise milling plotter based on components from global manufacturers, suitable for the heaviest tasks and perfect for industrial-scale production. Thanks to the technology used, we can define ourselves as one of the leaders on the Polish market.

Constant quality control and the components used in the machine's construction guarantee high quality processing of materials such as: wood, wood-like boards, MDF, OSB, PVC, HPL, plywood, plexiglass, dibond, carbon, alucobond.

By choosing our offer, you gain a machine that meets your expectations within a reasonable budget and support at every stage of the investment.

Variant

CNC milling machining centre Cormak NST2131-16D LOAD/UNLOAD

CNC milling machine Cormak NST2141-16D LOADING/UNLOADING

Have questions? Call us!

+48 25 631 00 27 ext.130

export@cormak.pl

Are you a member of the VIES group?

Yes - show prices with VAT 0%

VAT included

~~€76,567.50~~

€75,030.00

The lowest price of this product in the last 30 days before the discount was €96,493.50 gross

Product available on request. Please contact our sales department.

Last items in stock

Instructions in Polish
Service
Warranty 12/24 months
Delivery
2 000,00 PLN

Machine description

The Cormak NST2131129A LOADING/UNLOADING CNC milling center was created for companies that prioritize high processing power, economic efficiency and machine reliability. This automatic nesting center offers enormous possibilities, especially in its most popular version, equipped with an innovative storage and pushing unit, enabling smooth loading and unloading of boards with a full working area and effective collection of finished elements on a specially adapted table.

Thanks to the use of a reinforced structure and solid components, the Cormak CNC router is able to cut several boards simultaneously in one cycle, ensuring continuous production even in the case of heavy loads.

The attributes of this advanced machine include precise and very fast material processing:

automatic loading and unloading system through specially designed suction cups and its transfer with automatic homing to the horizontal drilling zone
intelligent quick selection of tools from a "revolver" type magazine, 12 pcs
efficient 2 drilling units and HQD and HSD spindles (industrial spindles on ceramic bearings
pneumatic base pins, LCD control panel with control software included
large protective cover
with retractable pins fixing the workpiece 6 pcs
electronics from Siemens, Schneider and Phoenix
feeding and receiving table

Additionally, the center is equipped with an advanced nesting and tool path optimization algorithm, which enables flexible production and effective use of materials. The vacuum system for chip extraction and the central lubrication system ensure not only cleanliness and safe operation, but also long-term reliability of the machine.

Overall, the Cormak NST2131129A CNC milling center is an ideal solution for companies looking for efficient, reliable and versatile materials processing machines capable of meeting even the most demanding industrial productions.

We offer machines with real CE EU DTR - certified by the best in the EU.

By choosing the CORMAK brand, you choose precision of processing and long service life, peace of mind and safety for yourself or your employees.

We are not looking for external companies, we have our own service (warranty/post-warranty services/trainings/start-ups/machine presentations) at our CORMAK headquarters

Technical parameters

Workspace	2100x3100mm
Z axis	300mm
Construction	Arm - cast iron / table - welded steel Umbrella-type tool magazine 12 pcs, ISO30 standard Sensor for measuring the tool length XYZ axis automatic lubrication system
Drives	INOVANCE servo (1.3kw for XY, 850w for Z-axis), with planetary gear
Table	T-shaped / hybrid / feeding and receiving Double Layer Multi Hole Vacuum Bakelite Work Table With Rubbers And Screws For Fixing, With Positioning System
Spindle power	9 kW
Spindle	Air-cooled HQD (oil mist optional)
Spindle revolutions	from 6000 to 24000 rpm
Power supply	400V, 3PH, 50HZ
Re-positioning accuracy	0.01mm
Linear bearings	trapezoidal rails, Hiwin bogies
Fixing the material	vacuum, hybrid
Pump	vacuum 2x7.5 kW (optional)
Software	SYNTEC 60WE
Dimensions	10300x3600x2430
Weight	2050 kg
