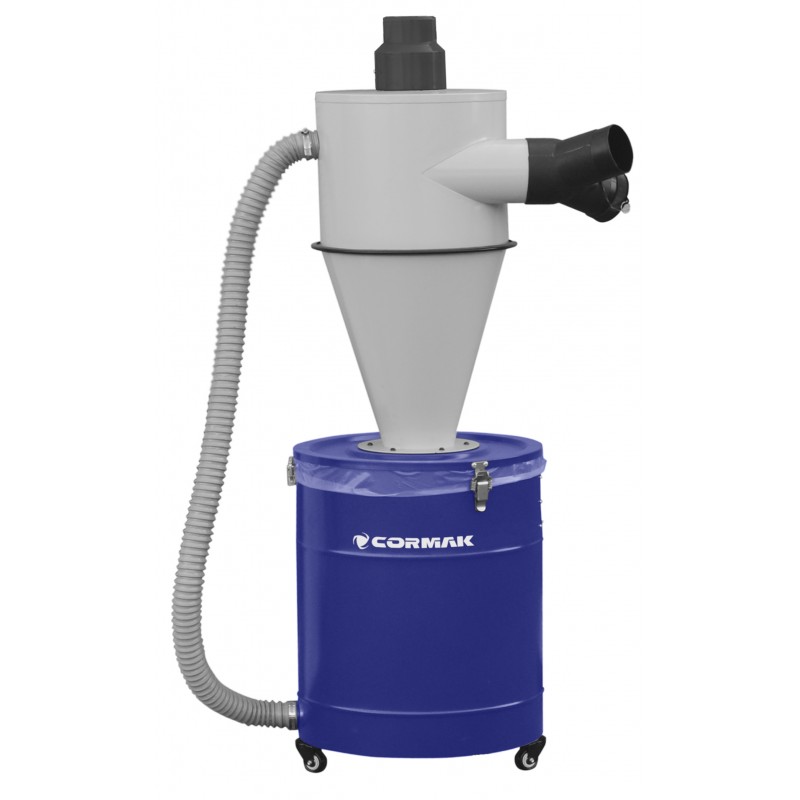

C118 Separator, Cyclone

Particles' separator working on the basis of centrifugal force. Constant 90-95% efficiency.

Have questions? Call us!

+48 25 631 00 27 ext.105

export@cormak.pl

Are you a member of the VIES group?

Yes - show prices with VAT 0%

VAT included

€437.50

The lowest price of this product in the last 30 days before the discount was €437.50 gross

There are not enough products in stock

I agree to the terms and conditions and the privacy policy

Instructions in Polish
Service
Warranty 12/24 months
Delivery
Free

Machine features

Metal chassis,
Metal waste container,
Wheeled base,
Ergonomic handling,
Viewer for waste container fill level,
Clamps for quick bag assembly

The cyclone is to be connected to a fan or an extractor.

Contaminated air falls into the cylindrical chamber and spins in it, due to which the elements heavier than the gas are removed outside with centrifugal force, hit the walls and lose their energy. The lightest particles are filtered through a dust filter, with the air being removed through the sides of the filter.

Technical data

Container capacity	118 L
Bag dimensions	Ø500 x 850 mm
Inlet diameter	125 mm
Inlet adapter diameters	1 x Ø125 / 2 x Ø100 mm
Outlet diameter	125 mm
Outlet adapter diameters	Ø125 mm / Ø100 mm
Weight (net/gross)	24/26.5 kg
Dimensions	785 x 508 x 1545 mm
