Plate and Tube Fiber Laser cutting machine LF3015GEPR

On sale!

1500x3000 1000W - 12000W 20-200 mm

Fiber laser equipped with a turntable for pipes and profiles with a diameter of up to 200 mm and a length of 6000 mm, and a system of interchangeable tables. One machine, two uses. It is an ideal solution for companies with limited space in the hall. YASKAWA servo motors ensure fast and trouble-free operation of the laser.

Have questions? Call us!

+48 609 939 741

export@cormak.pl

VAT included

~~€122,684.49~~

€107,546.05

The lowest price of this product in the last 30 days before the discount was €111,961.43 gross

access_time Czas wysyłki: od 7-14 dni

Lasery światłowodowe
zaprojektowane i składane w Polsce

Fiber optic laser cutters are modern devices that are distinguished by numerous advantages. They are not only an excellent and much more profitable alternative to the CO₂ technology, but also have a lot of advantages in themselves that allow you to develop production (up to 70%) and improve its quality. FIBER technology allows you to cut sheets and other materials of various thicknesses, from very thin to very thick. The wavelength in the FIBER laser is 1.064 micrometers. These properties result in an intensity that is 100 times greater than that of CO₂ devices of similar power.

THE BIGGEST ADVANTAGES OF THE LASER ARE

failure-free optical fiber,
no wearing parts,
The fiber laser source takes up about 1/3 less space,
high energy efficiency - 100,000 hours of operation,
universal use (special steel, black and stainless steel, copper, brass, aluminum, titanium).

Fiber laser

increases work efficiency by 80%,
lowers service costs by 70%,
saves 80% of energy,
minimizes gas consumption,
saves hall space by 30%.

Security and no pollution

full laser housing,

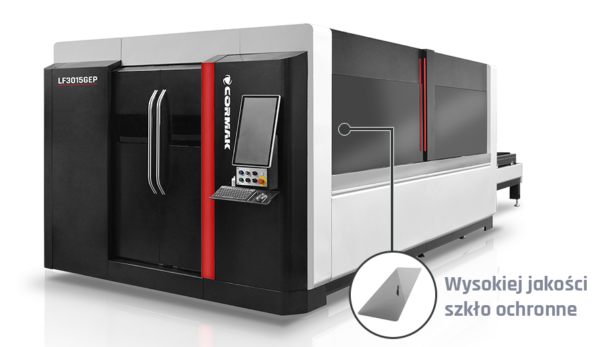

observation window with laser protective glass in European CE standard,
smoke produced by cutting can be filtered inside, it does not pollute the environment.

Dual use and cost savings

The LF3015GEPR fiber optic cutter not only cuts sheet metal, but also pipes and profiles. It has many uses and saves space by more than 50%, which effectively increases productivity.

Sliding gate made of seasoned aviation aluminum

The construction of the sliding gate is made of seasoned aviation aluminum formed with a force of 4300 tons, achieving incredible stiffness. Aviation aluminum has many advantages: high stiffness (greater than cast iron), low weight, resistance to corrosion and oxidation, and good machinability.

Electric clamp

The clamp grips the profile in two directions and automatically aligns the profile. The diagonal adjustment range is 20-200 mm.

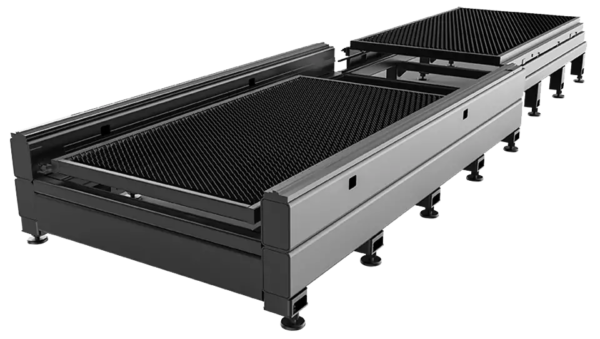

Removable build table

The interchangeable work table consists of upper and lower platforms whose movement and exchange are controlled by the controller. The machine is able to replace the platform within 15 seconds.

Automatic pipe support

Uses an intelligent pipe support assembly to solve warping problems when cutting long pipes.

Welded bed with rectangular profiles

The construction of the bed has an internal structure resembling a honeycomb, made of many welded rectangular tubes. Stiffeners are placed inside the tubes, which increase the strength of the bed, and also increase the rigidity and stability of the guide rail to effectively prevent its deformation. High strength, stability, tensile strength, ensuring 20 years of use without distortion.

Raytools head

Autofocus. The software automatically adjusts the focusing lens when cutting sheets of different thicknesses. The auto focus speed is ten times faster than the manual focus speed.

Greater manual adjustment range – adjustment range -10mm - +10mm. The precision of 0.01 mm is applicable to various thicknesses of materials (0-20 mm) - below the power of 1500W.

Long life. Collimator lenses and focusing lenses have a water-cooling heatsink, which lowers the temperature of the cutting head to extend the life of the cutting head.

Technical parameters

WORKSPACE	1500x3000
POWER	1000W 1500W 2000W 3000W 4000W 6000W 12000W
REPEATABLE POSITIONING ACCURACY	±0.02mm/m
MAXIMUM SPEED	120m/min
MAXIMUM ACCELERATION	1.5G
DIMENSIONS	9500x3760x2520mm
POWER	400V 50Hz

Cutting parameters

Actual parameters may vary depending on technical conditions and materials used.
