CORMAK H-350 column band saw

  • Reduced price

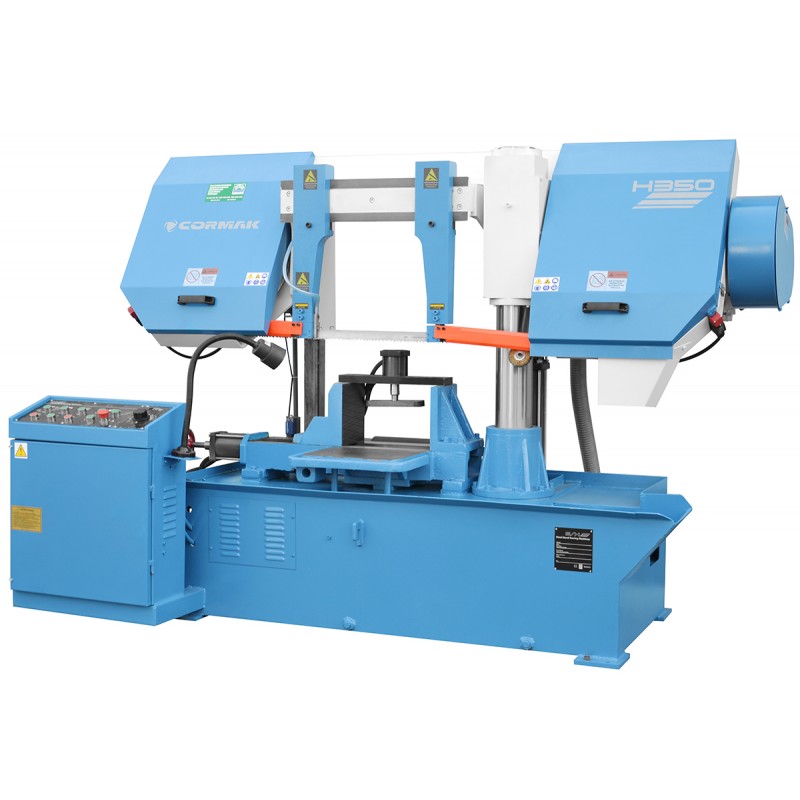

CORMAK H-350 column band saw - Metal column band-saw CORMAK H-350
  • CORMAK H-350 column band saw - Metal column band-saw CORMAK H-350
  • CORMAK H-350 column band saw - Metal column band-saw CORMAK H-350
  • CORMAK H-350 column band saw - Metal column band-saw CORMAK H-350
  • CORMAK H-350 column band saw - Metal column band-saw CORMAK H-350
  • CORMAK H-350 column band saw - Metal column band-saw CORMAK H-350

Column band saws feature higher rigidity during cutting and a totally different arm and band guiding technology compared to pivot machines. The guiding of column band saw cutting arm is more rigid and stable. Perfect for profiles and tubes.

netto
27 439,02 zł
PLN21,951.22
PLN27,439.02
PLN21,951.22

  • CE
  • DTR
    instrucja
    po polsku
  • Wysyłka
    nawet w
    24h
  • Gwarancja
    12/24
    miesięcy
  • Dostawa
    Gratis

Column saw machines are recommended especially to solid, tough to machine materials and thick shapes where high cutting accuracy is key.

Highly efficient machine of solid construction. It can cut a broad range of materials, including stainless and tool steel, profiles and shapes.

In column band saws both the arm and the cutting band move up and down due to a hydraulic cylinder, whose chromium plated piston works as a guiding column.

Cutting band is inclined at an angle of 3o in relation to the workbench. Semi-automatic band saws, after being switched, do the whole cutting cycle automatically, i.e. clamp the cut material in the hydraulic vice, switch on the cutting band, lower the cutting arm (adjustable speed), stop the machine after cutting, raise the arm up (adjustable arm height) and switch the hydraulic vice off. Machine's arm is made of uniform cast iron and, together with a 34 mm wide cutting band, it  enables cutting various profiles and shapes. The band saw uses a vice and a hydraulically raised and lowered arm.

Features

  • Semi-automatic working cycle
  • Hydraulic control of arm motion (up – down) with possibility of smooth lowering speed control
  • Arm position memory function
  • Hydraulically controlled vice's jaws
  • Hydraulic clamp for cutting multiple elements at once
  • Hydraulic band tension
  • Brush for cleaning the band
  • Cooling system
  • Bi-metal blade saw
  • EC Declaration of Conformity

Technical data

Type

semi-automatic column

Control

control panel at the front of the machine

Maximum cutting diameter

Ø 350, 400×350 mm

Arm raising

hydraulic

Arm lowering

hydraulic

Band speed

from  25/60/75 m/min.

Vice

hydraulic

Min. cutting diameter

5 mm

Min. material length in vice

30 mm

Vice base from ground distance

780 mm

Cutting band dimensions

4515×34×1.1 mm

Total power

5.2 kW

Band speed

25/60/75 m/min

Dimensions (L×W×H)

2400×1250×1550 mm

Weight

1200 kg
