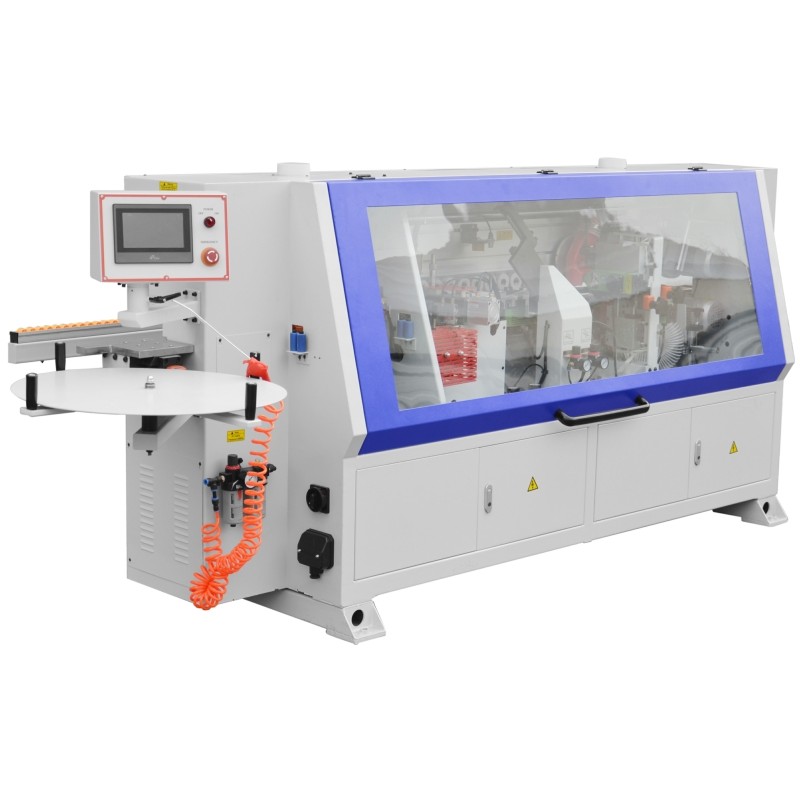

Cabin edge bending machine CORMAK EBM800

  • Reduced price
Cabin edge bending machine CORMAK EBM800 - Cabin edge bending machine CORMAK EBM800
  • Cabin edge bending machine CORMAK EBM800 - Cabin edge bending machine CORMAK EBM800
  • Cabin edge bending machine CORMAK EBM800 - Cabin edge bending machine CORMAK EBM800
  • Cabin edge bending machine CORMAK EBM800 - Cabin edge bending machine CORMAK EBM800
  • Cabin edge bending machine CORMAK EBM800 - Cabin edge bending machine CORMAK EBM800
  • Cabin edge bending machine CORMAK EBM800 - Cabin edge bending machine CORMAK EBM800
  • Cabin edge bending machine CORMAK EBM800 - Cabin edge bending machine CORMAK EBM800
  • Cabin edge bending machine CORMAK EBM800 - Cabin edge bending machine CORMAK EBM800

The HY type cabin edge bending machines are characterised by professionality and are designed for production plants of high amount of labour as well as for medium joiner’s workshops. Great possibilities at very affordable price. Thanks to it the perfect operating comfort and failure-free operation are secured. The unquestionable chief asset of the HY260J edge bending machine is simple construction and intuitive operation.

netto
57 926,83 zł
PLN46,341.46
PLN57,926.83
PLN46,341.46

  • CE
  • DTR
    instrucja
    po polsku
  • Wysyłka
    nawet w
    24h
  • Gwarancja
    12/24
    miesięcy
  • Dostawa
    Gratis

Edge bending machine working cycles

  • Initial board milling.
  • Glue applying on board edge.
  • Automatic border feeding.
  • Gluing border.
  • Cutting off border front and end by means of disk saws flush with the board.
  • Glue excess longitudinal milling flush with board.
  • Border full rounding of 0.4 to 3 mm thickness.
  • Scraping – border quality control after milling.
  • Final polishing.

Technical data

BOARD LENGTH >120 mm
BOARD WIDTH >80 mm
BOARD THICKNESS 10-60 mm
MILLING CUTTER  REVOLUTIONS 10000 rpm
BORDER THICKNESS 0,4-3 mm
FEED SPEED 10,3 m/min
WORKING PRESSURE 6 bar
MOTOR POWER 6,14 kW
VOLTAGE 400 V 50 Hz
WEIGHT 800 kg
