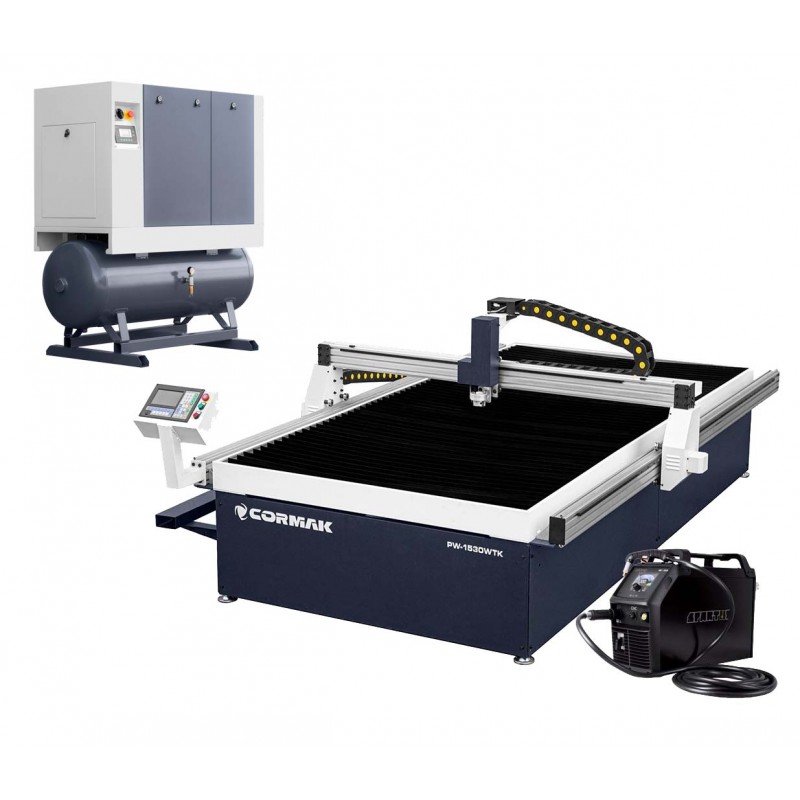

PW-1530 WTK plasma cutter + Luft 1000 compressor + SPARTUS ProCUT 125CNC source

The CNC plasma burner with a water table is a device designed for shape cutting of elements from a sheet of metal (in any shape). This machine is characterized by extreme simplicity and ease of use. Our CNC cutter guarantees repeatability and high cutting accuracy (0.1 mm), thanks to which burnt shapes can be transferred directly to the next stage of production.

The water table ensures low consumption of consumables, raw materials and low gas emissions. No need to use fume and flue gas extraction.

Variant

PW–1530 WTK 1500x3000 Plasma Cutter with Water Table

PW-1530 WTK plasma cutter + SPARTUS ProCUT 125CNC source

Plasma cutter PW-2040 WTK 2000x4000 with water table

Have questions? Call us!

+48 25 631 00 27 ext.105

export@cormak.pl

Are you a member of the VIES group?

To use the VIES group, you must have a VAT number.

Yes - show prices with VAT 0%

VAT included

€17,496.75

Product available on request. Please contact our sales department.

There are not enough products in stock

I agree to the terms and conditions and the privacy policy

Instructions in Polish
Service
Warranty 12/24 months
Delivery
1 500,00 PLN

Why is it worth it?

water table
no need to use fume and exhaust gas extraction
the small size of the machine allows it to be placed anywhere
THC voltage height regulator
precise burner setting
very precise cutting that does not require further processing
sheet metal detection system
comfortable operator panel
intuitive machine operation
possibility of cutting and gouging in steel
machine operation training at the buyer/seller's premises
library of standard geometric shapes

Characteristics and equipment

Working area 1500 x 3000
Y axis range 140 mm (clearance)
The use of a rigid and stable structure
Water table
Voltage height regulator
Torch height adjustment system
Torch height and stabilization sensor
FastCAM program - in Polish with a license
USB port and internal and external memory
Friendly user interface – simple operation even for people who have never worked with FastCAM programs
Import of drawings in *.txt format from any program (e.g. AutoCAD, SolidWorks, etc.)
MACRO – a library of standard geometric shapes. This allows you to create figures without having to draw.
NESTING – automatic arrangement of elements on the sheet
DEMO - Shows the work cycle (path) without turning on the plasma or oxygen source

Technical parameters of the LUFT 1000 compressor

Compressor
Engine power	7.5 kW
Dimensions	810 x 610 x 850 mm
Libra	120 kg
Tension	400V/50Hz
Dimension of the outlet port	1/2"
Capacity 0-6 bar At 6 bar At 8 bar At 10 bar	average 920 L/min. 750 L/min. 750 L/min. 730 L/min.
Technical parameters of the IZBERG N10S DEHUMIDIFIER
Engine power	0.29kW
Air outlet and inlet pipe diameter (BSP)	1"
Working in systems for	10 Bar
Inlet temperature	≤38°C
Dimensions	700 x 420 x 650 mm
Efficiency	1500 l/min
Tension	230V
Libra	45 kg
Type and quantity of coolant	R134a, 400 g

Technical parameters of the SPARTUS ProCUT 125CNC source

Supply voltage	~3 × 400V ± 10% 50 / 60 Hz
Cutting current [A]	20 – 100
Max. cutting thickness [mm]	55
Duty cycle [%]	100
PLASMA PARAMETERS
Output operating voltage [V]	88 - 106
Recommended working pressure [bar]	5.5
Air demand [l/min]	250
Post-gas	Yes
Contactless arc ignition without HF	Yes
2T/4T	Yes
OTHER PARAMETERS
Current consumption [A]	28
Power factor (cosφ)	0.76
Efficiency η [%]	85
Insulation class	H
Level of security	IP21S
Weight [kg]	32
Dimensions [mm]	770×270×490
